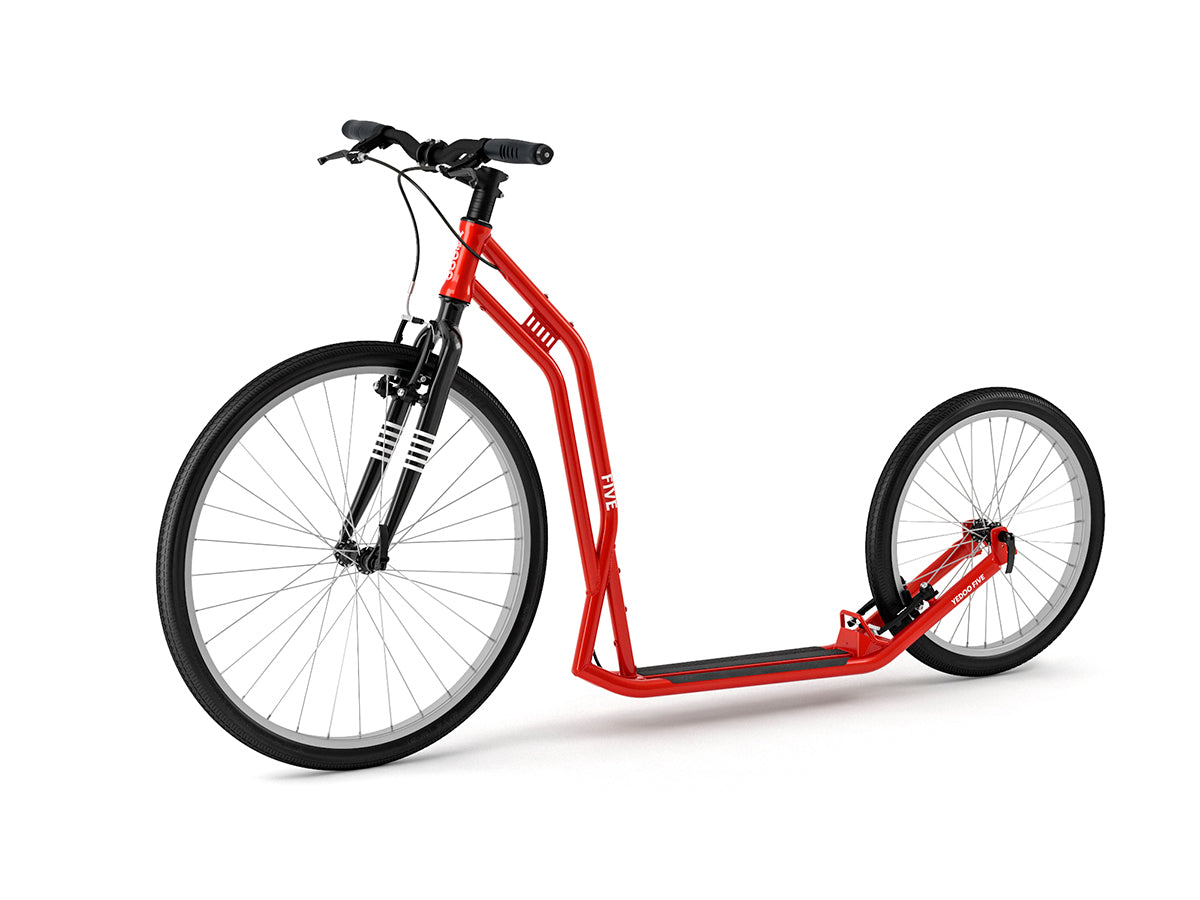

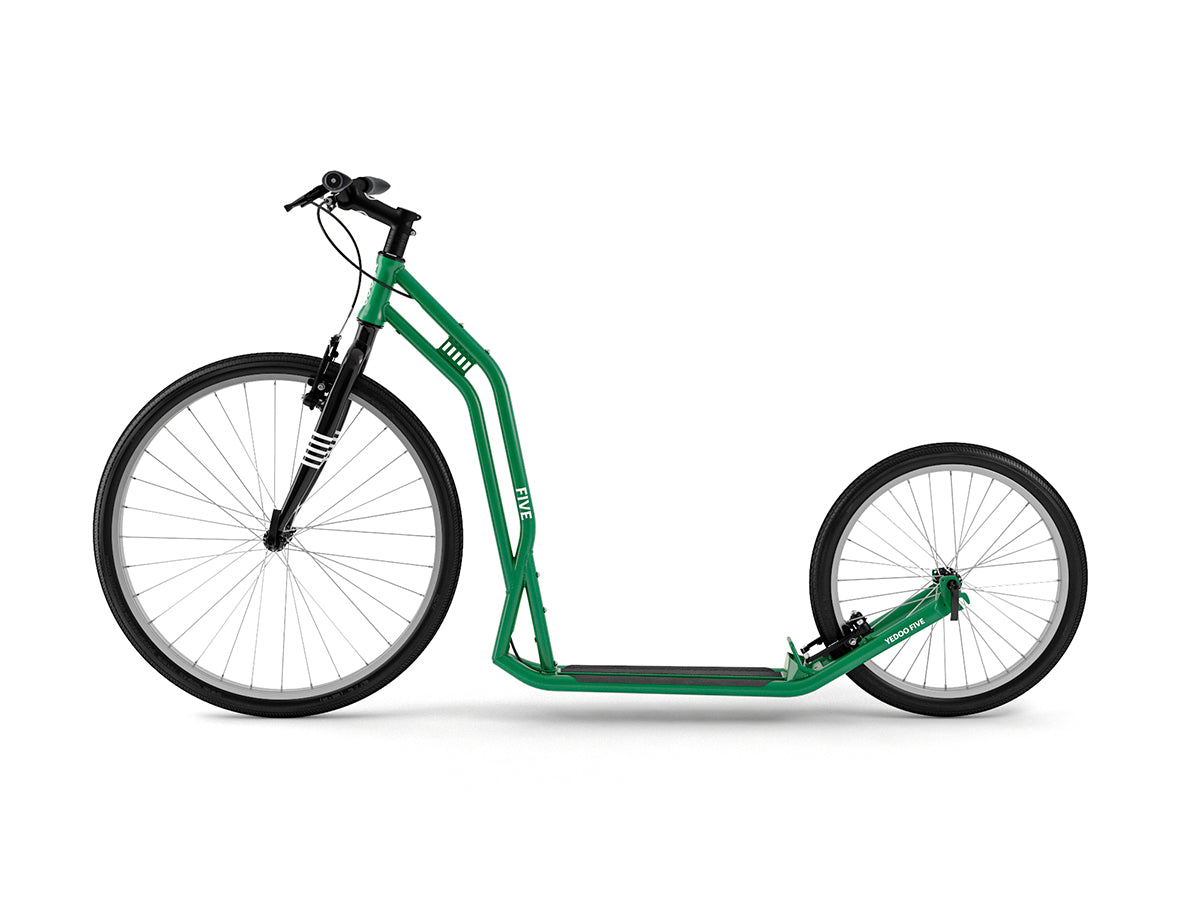

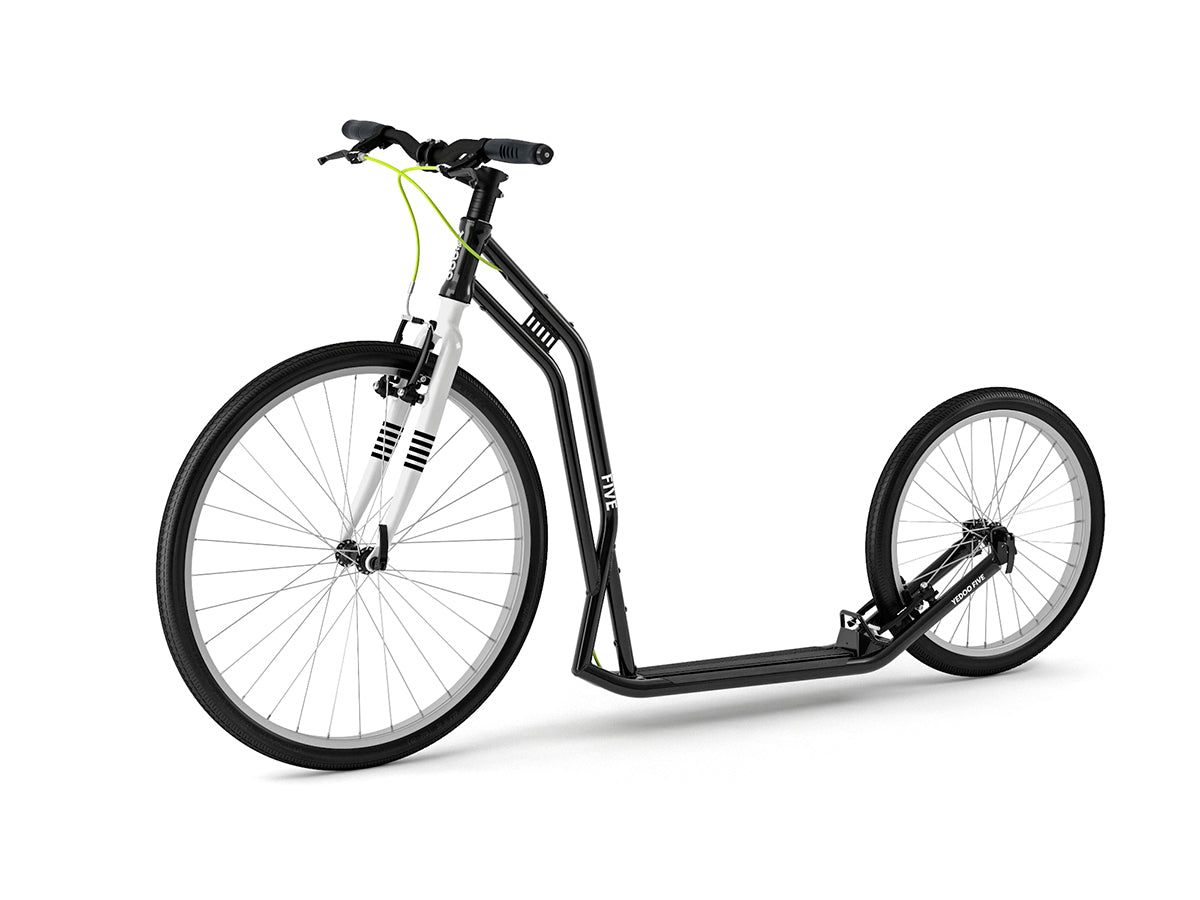

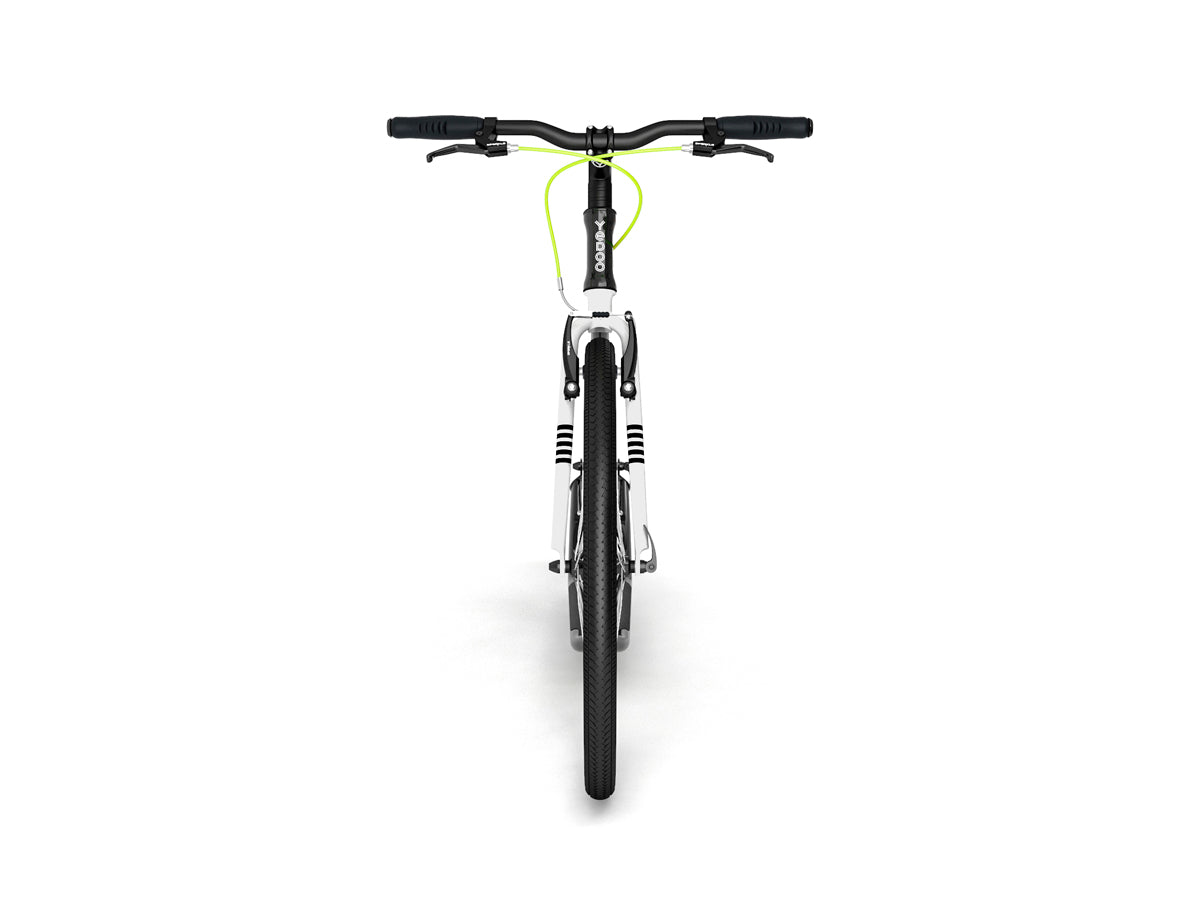

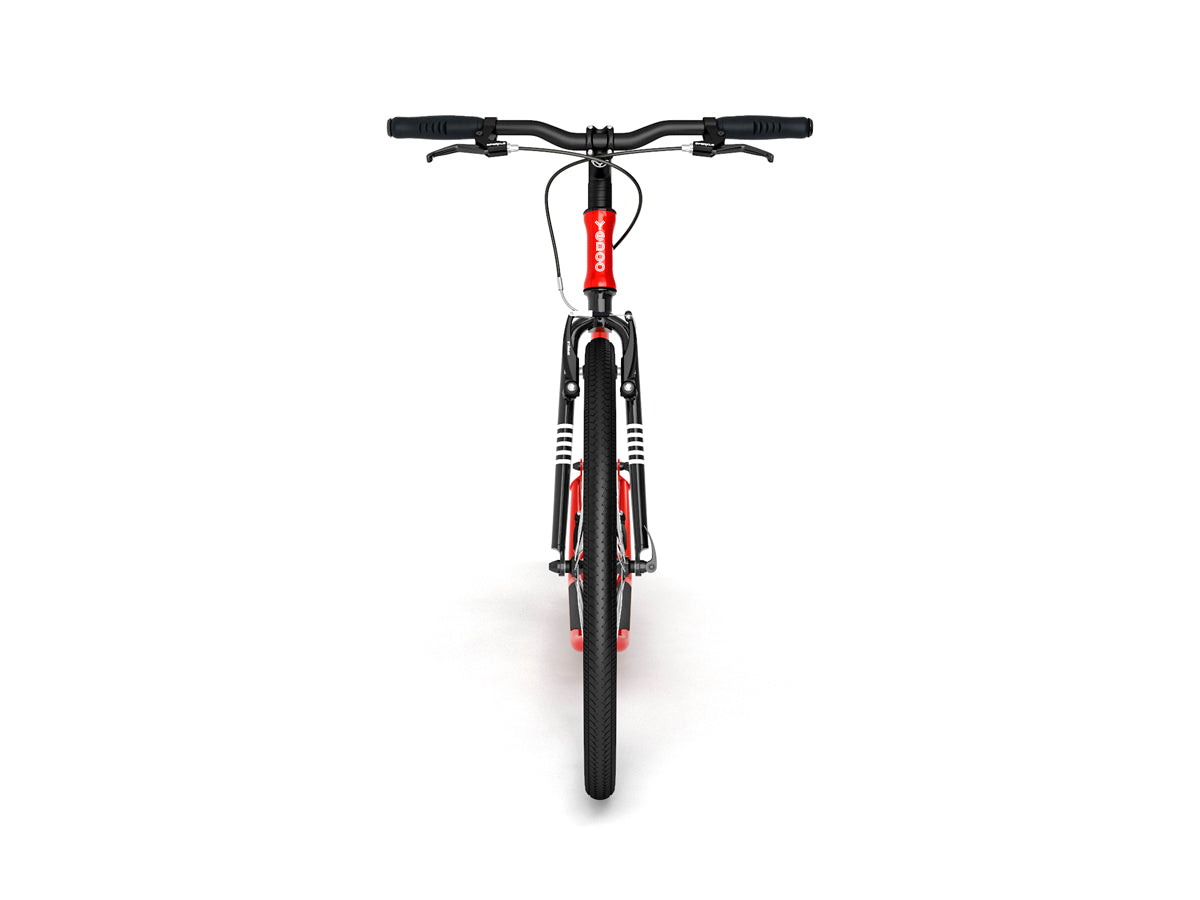

Number Five is a new standard for a universally mature travel scooter with large wheels, the necessary equipment and higher reliability of the Yedoo brand. There is nothing in excess on the steely muscles of the Steel frame that weights approximately ten kilos. The positionable rear fork enables comfortable and fast gliding just above the surface, and on every metre, you will appreciate that aluminium wheel hubs with industrial bearings have lower rolling resistance. This leads to no short circuit, Number 5 is really alive.

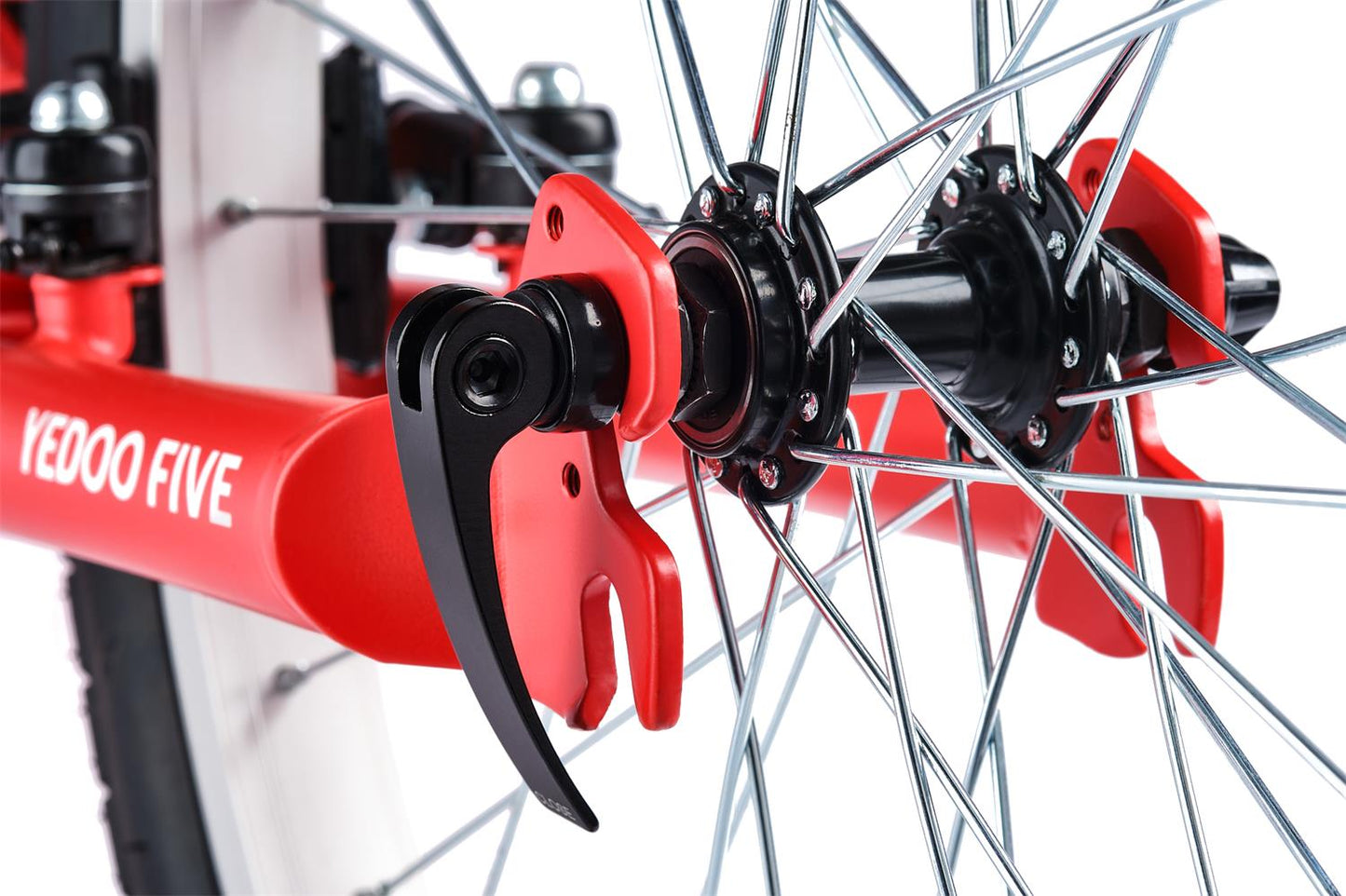

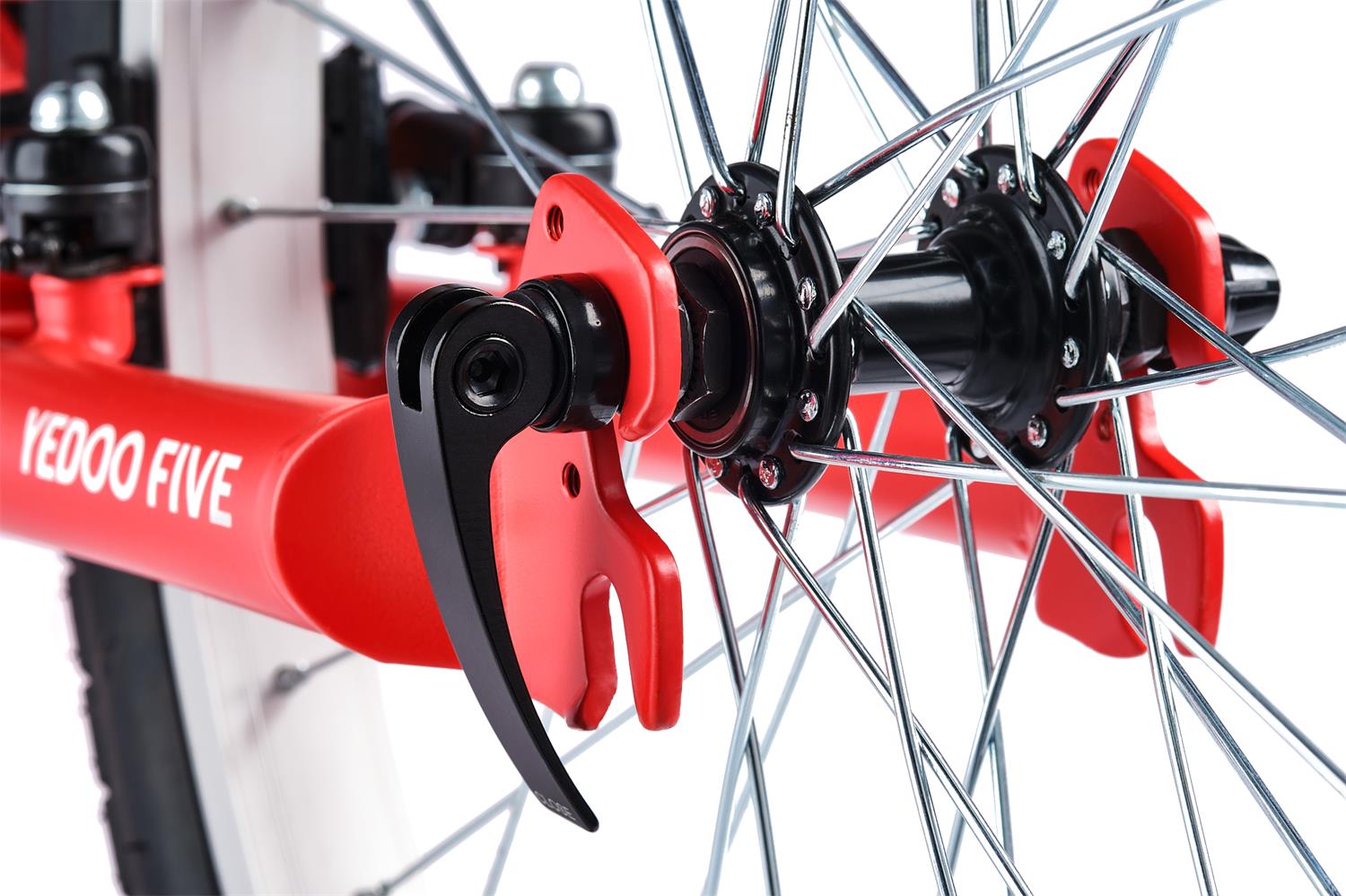

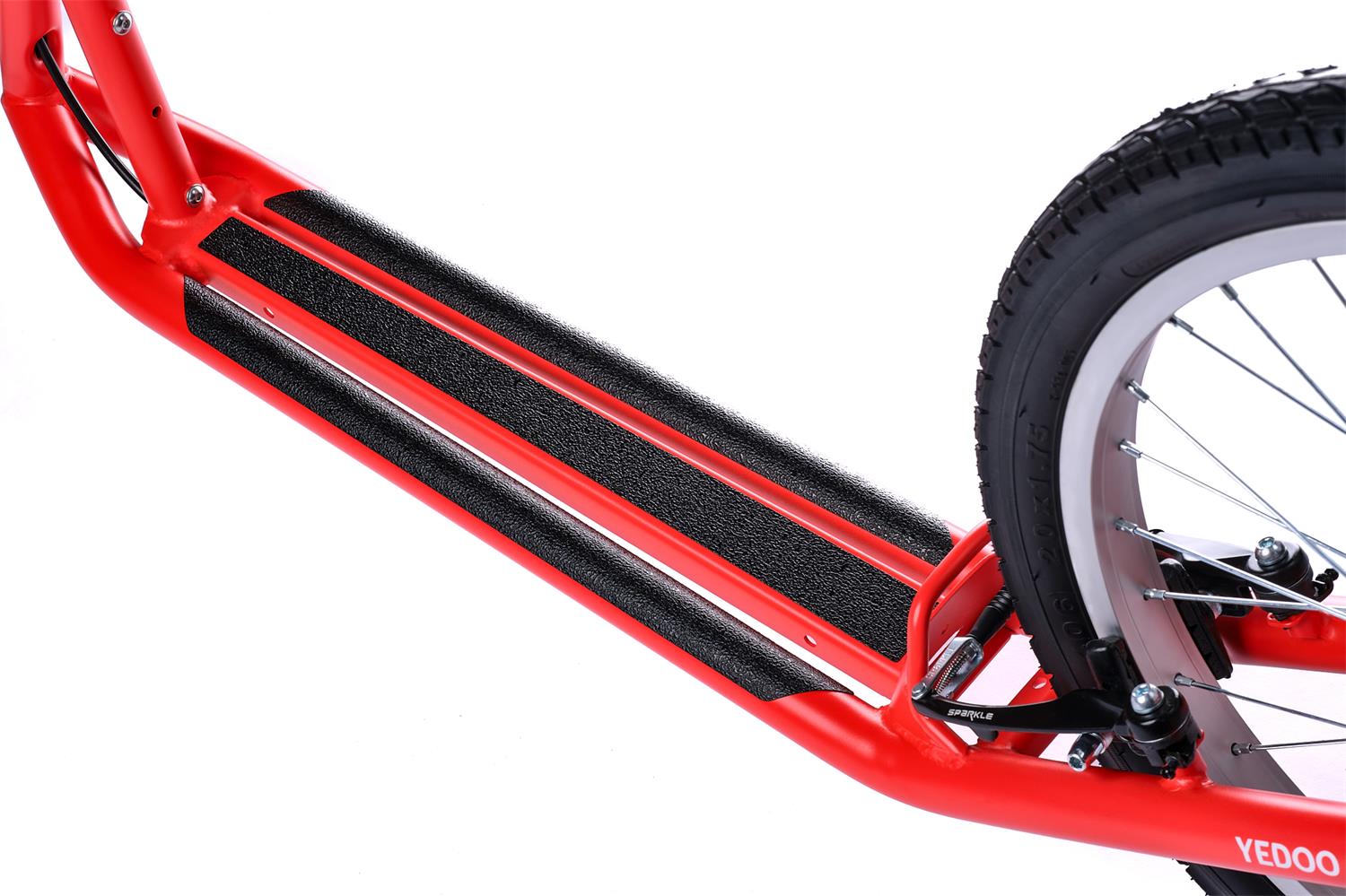

Originally Yedoo designed steel frame - Adjustable handlebars - Grips with double lock - Yedoo footboard with anti-slip surface - Stand - Tektro Alloy brakes - Dual position rear fork and quick-release levers
Technical details
- Loading limit - 130 kg / 287 lb
- Min. height of rider - 150 cm / 59 in
- Weight (with/without kickstand) -0 10,4 kg / 22.9 lb
- Box size - 120 x 16 x 84 cm (47.2 x 6.3 x 33.1 in)
- Box weight - 13,4 kg / 29.5 lb

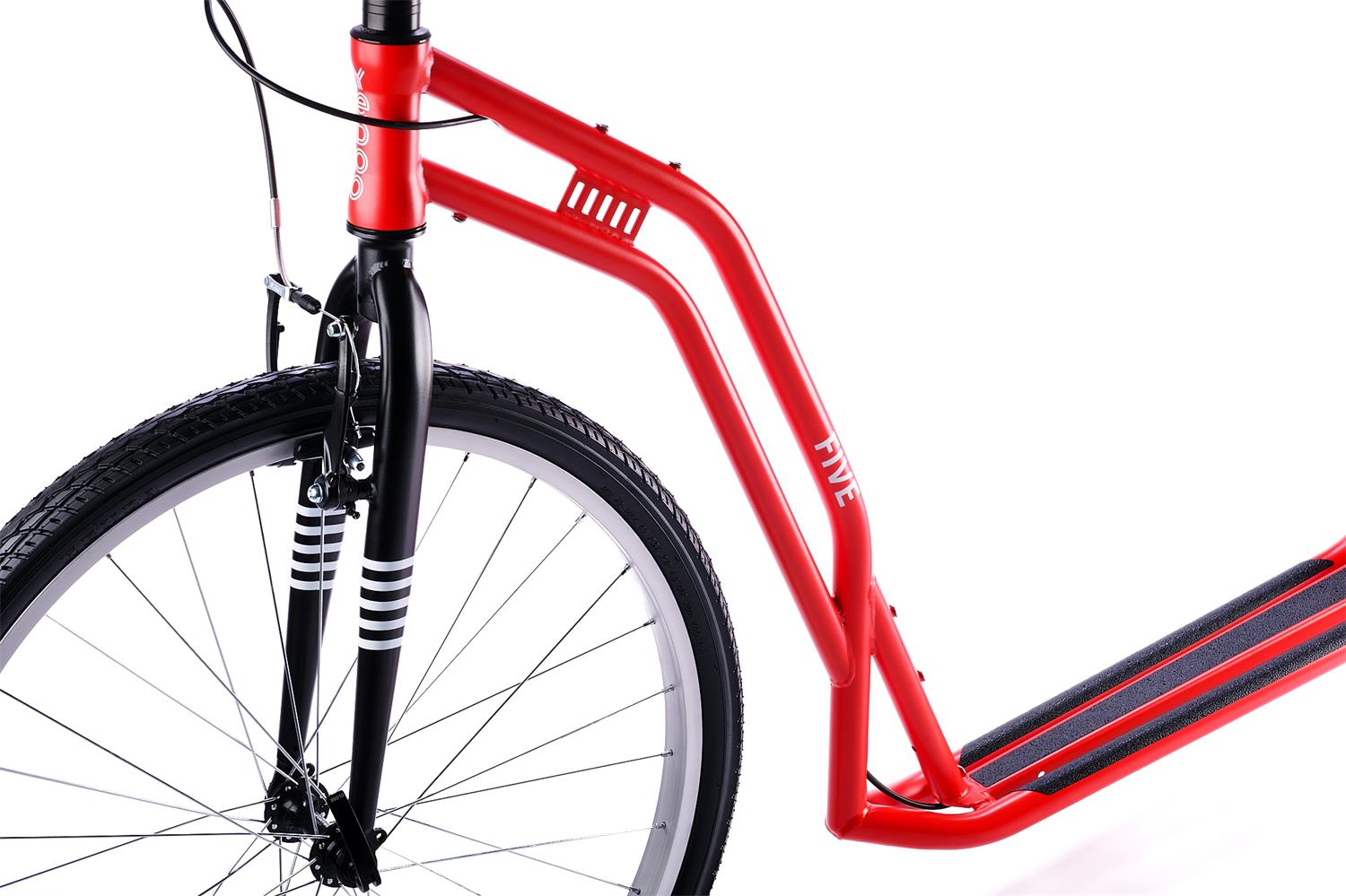

- Frame - YEDOO Hi-ten steel
- Fork - YEDOO Hi-ten steel
- Stem - Alloy

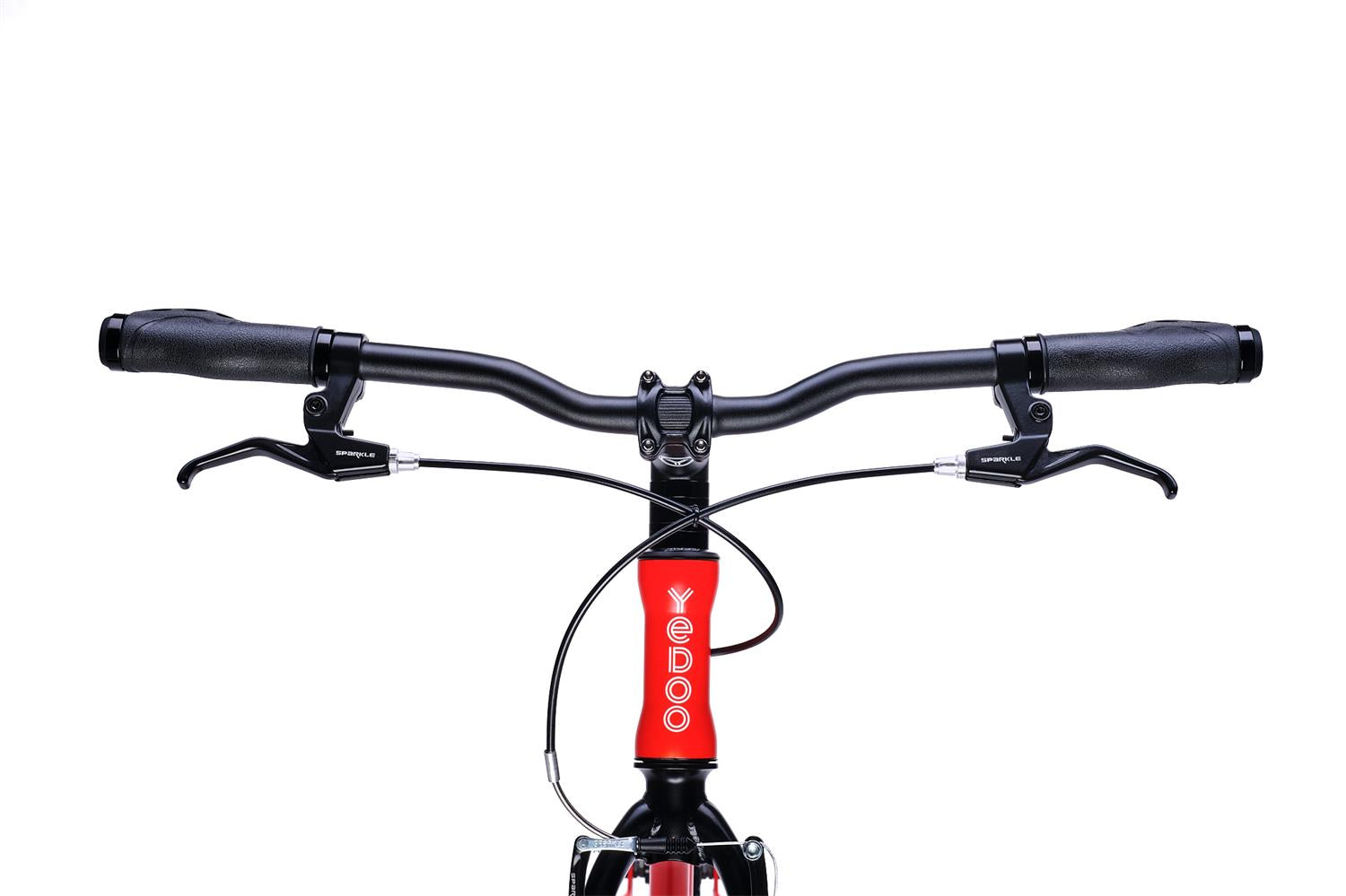

- Handlebar - Alloy PG

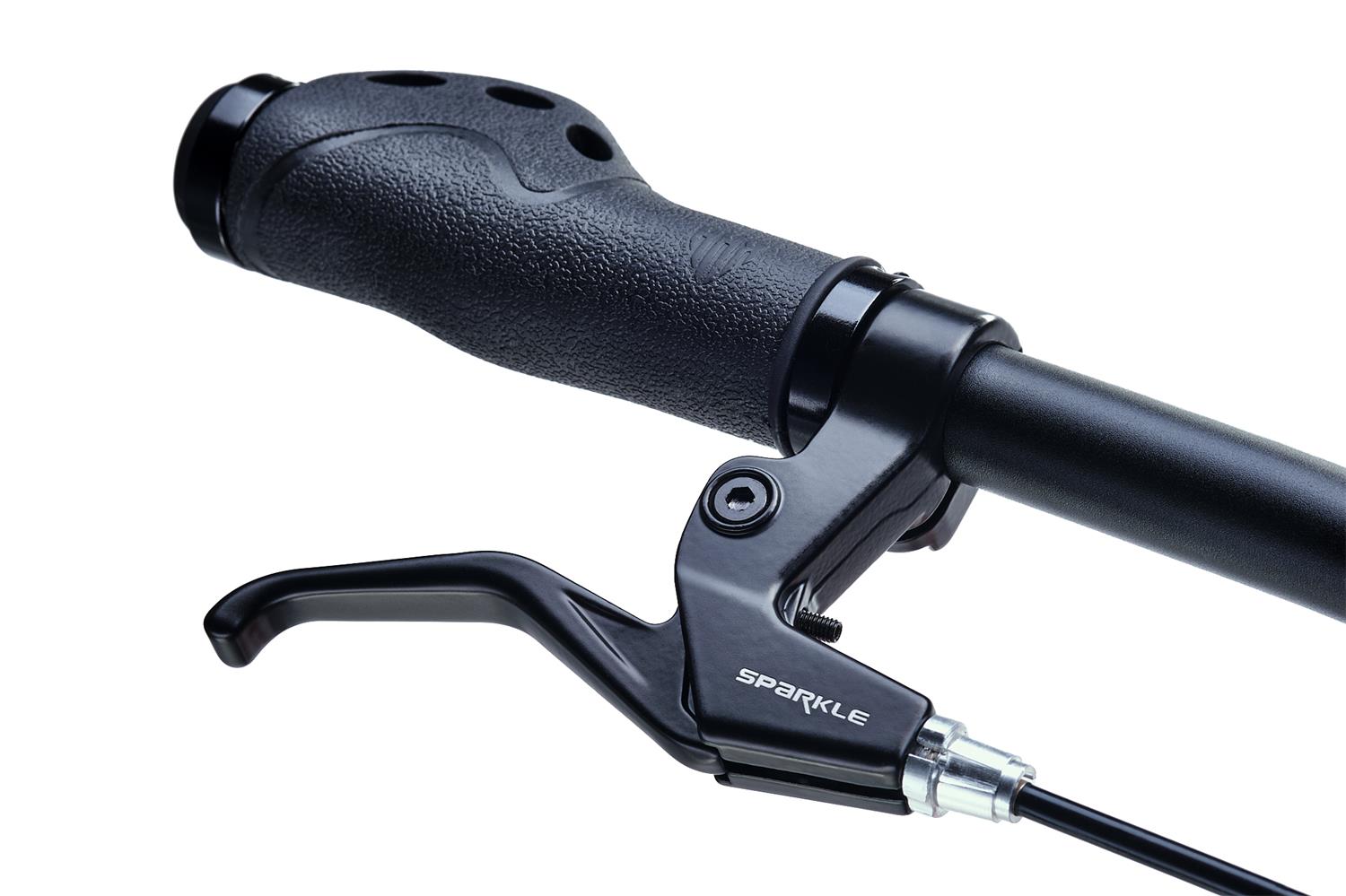

- Grips - Ergonomic (with anti-rotation lock)
- Headset - NECO alloy 1 1/8" semi-integrated AHEAD
- Brake levers - 2x SPARKLE alloy

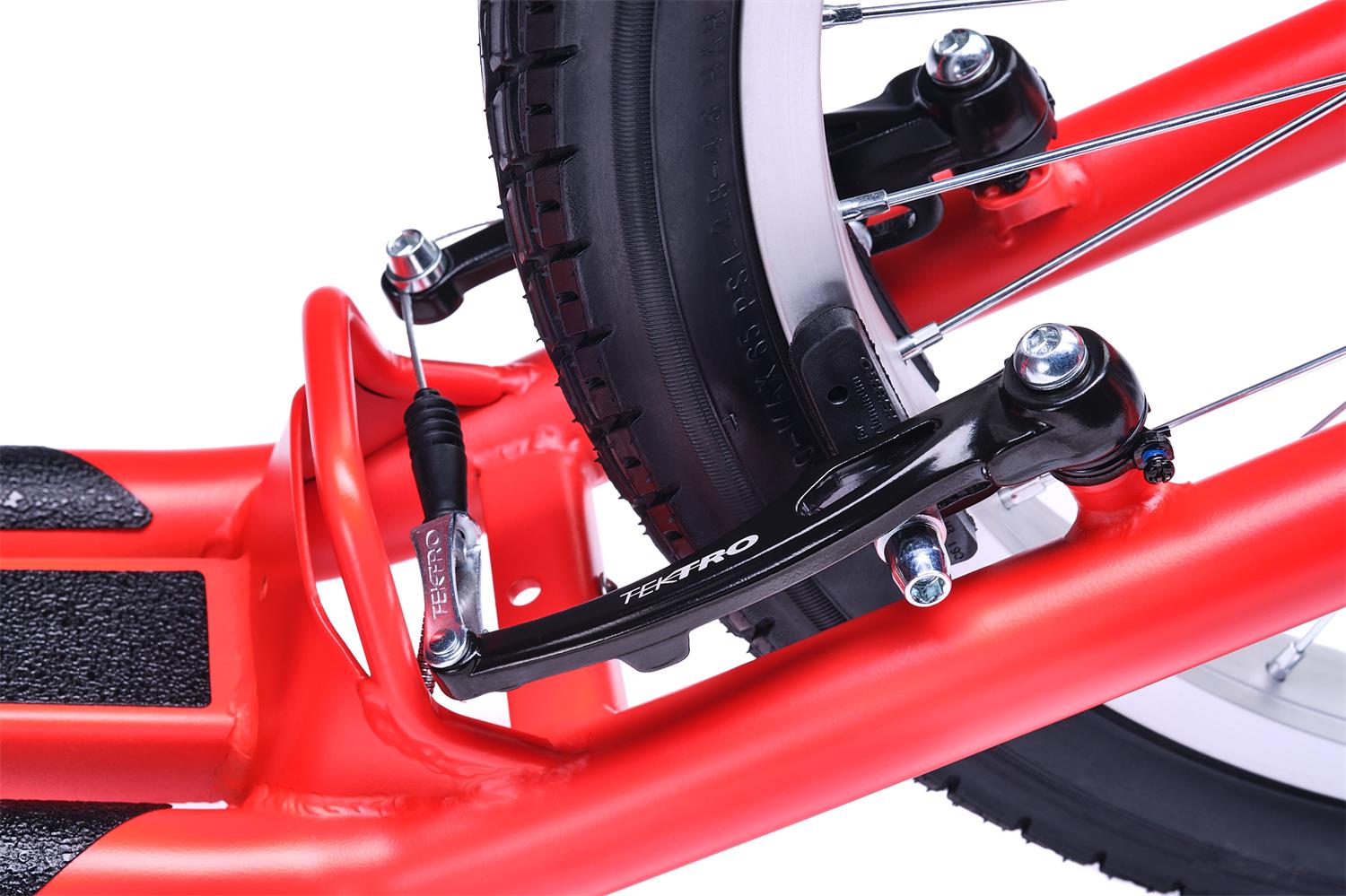

- Brakes (front/rear) - "V" TEKTRO alloy /"V" TEKTRO alloy
- Wheels - 26" / 20"
- Rims - HJC alloy
- Hubs - NOVATEC alloy
- Hub width (front/rear) - 100 / 74 mm // 3.9 / 2.9 in
- Preparation for using flat screws (front/ rear) - No / No
- Bearings - Industrial
- Quick-release levers (front/rear) - Yes / Yes
- Tyres (front/rear) - KENDA 26x1,75/20x1,75
- Max. inflation (front/rear) - 4,6 bar / 4,6 bar
- Preparation for bottle holder - 2x
- Kickstand - Optional
- Reflective elements - No

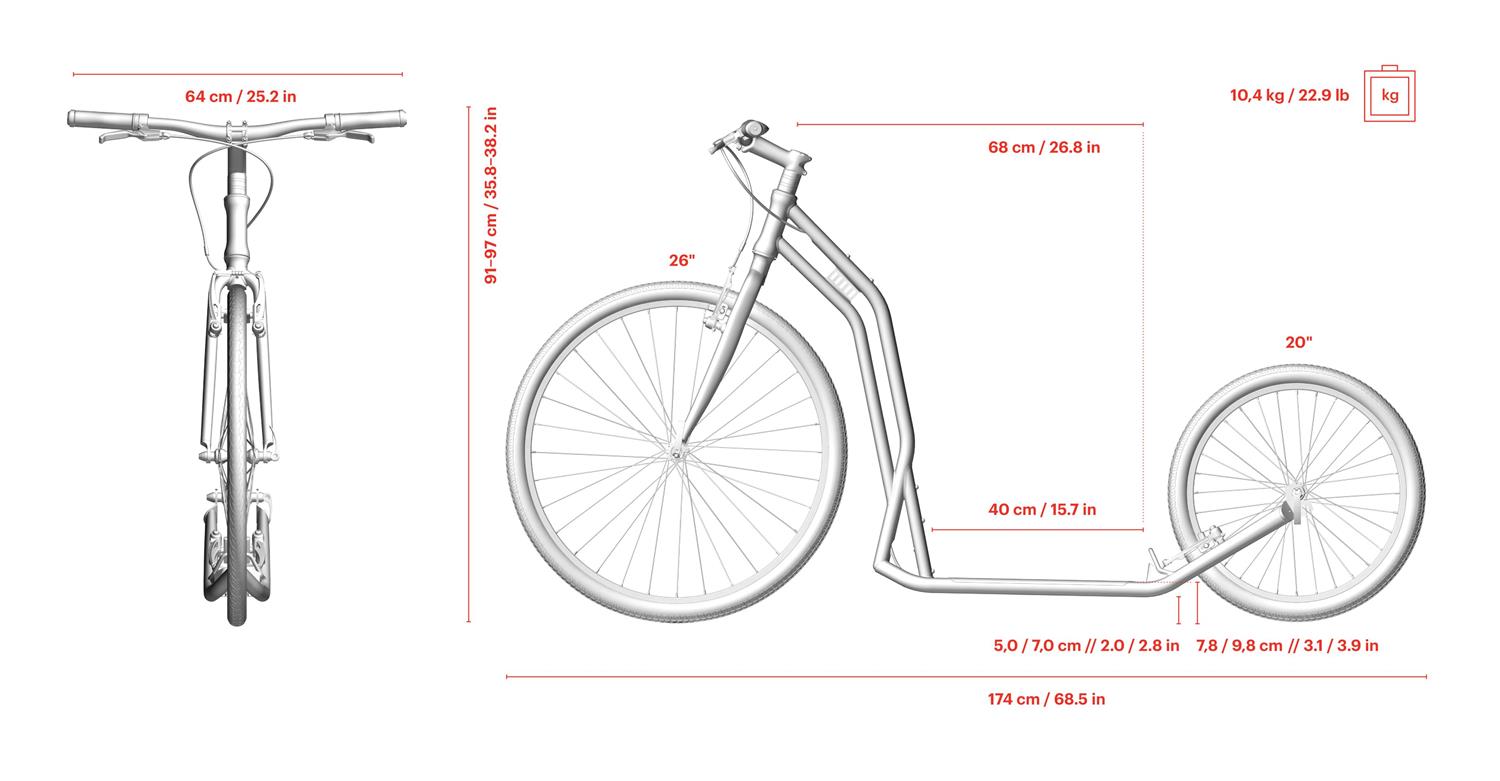

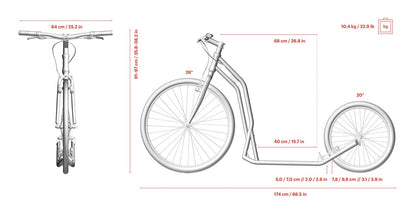

Dimensions
-
[1] Length - 174 cm / 68.5 in
-
[2] Footboard - 40 cm / 15.7 in
-
[3] Handlebar height - 91 - 97 cm / 35.8 - 38.2 in
-
[4] Width of handlebars - 64 cm / 25.2 in
-
[5] Ride height (higher/lower position)* - 5,0 / 7,0 cm // 2.0 / 2.8 in
-
[6] Distance between footboard and ground (higher/lower position)* - 7,8 / 9,8 cm // 3.1 / 3.9 in
-
[7] Room for rider -68 cm / 26.8 in
*Tolerance +-0.2 cm
Documents, standards and certificates
Manual_Yedoo_Adult_scooters_2620_web.pdf
Norms - ÄŒSN EN 14619 - Testing authority -SZÚ, s. p.
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
Change of technical parameters and components reserved.
Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above).
Manufacturer:
INTREA-PIKO, spol. s.r.o. | Radlická 80 | 150 00 Prague 5 | info@yedoo.cz
