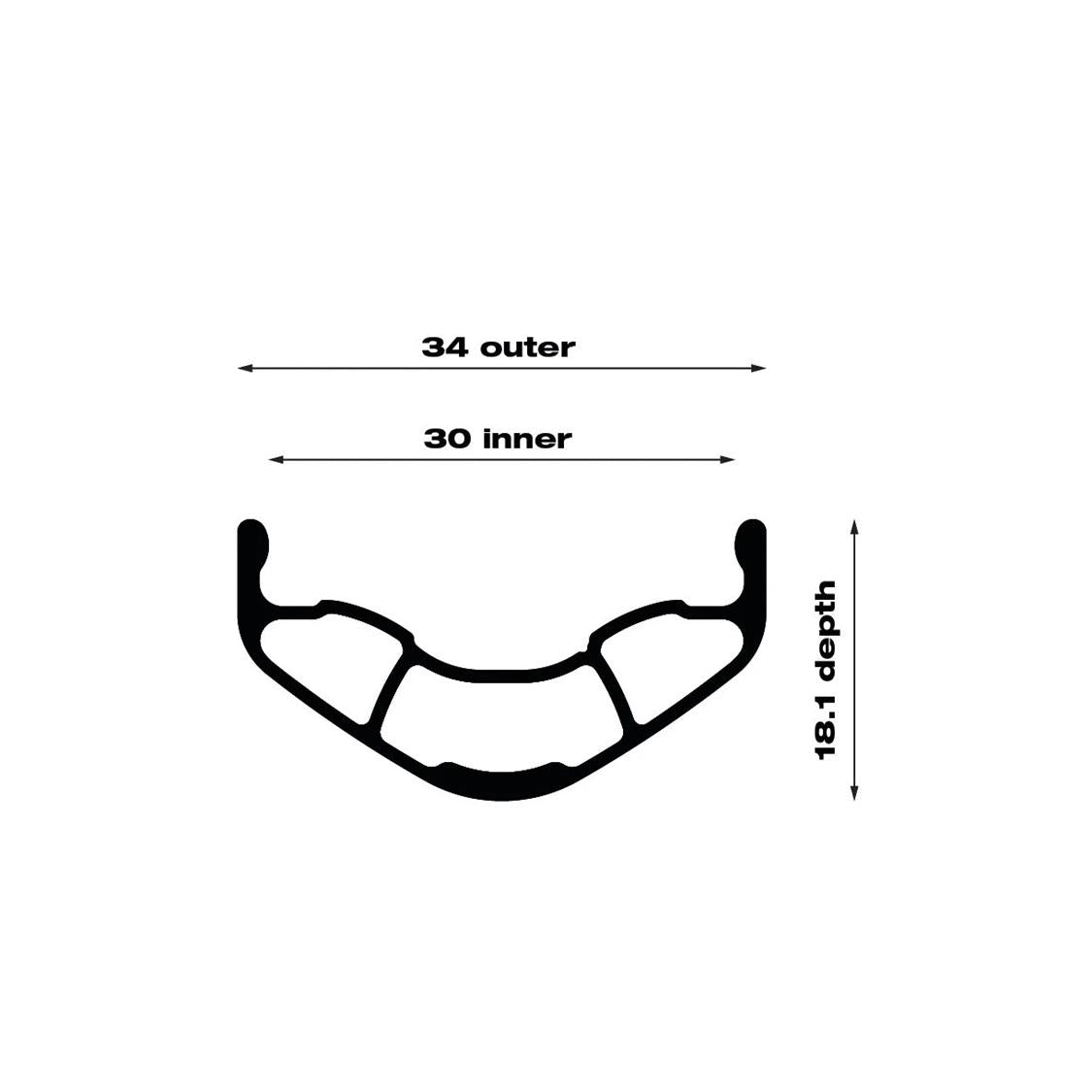

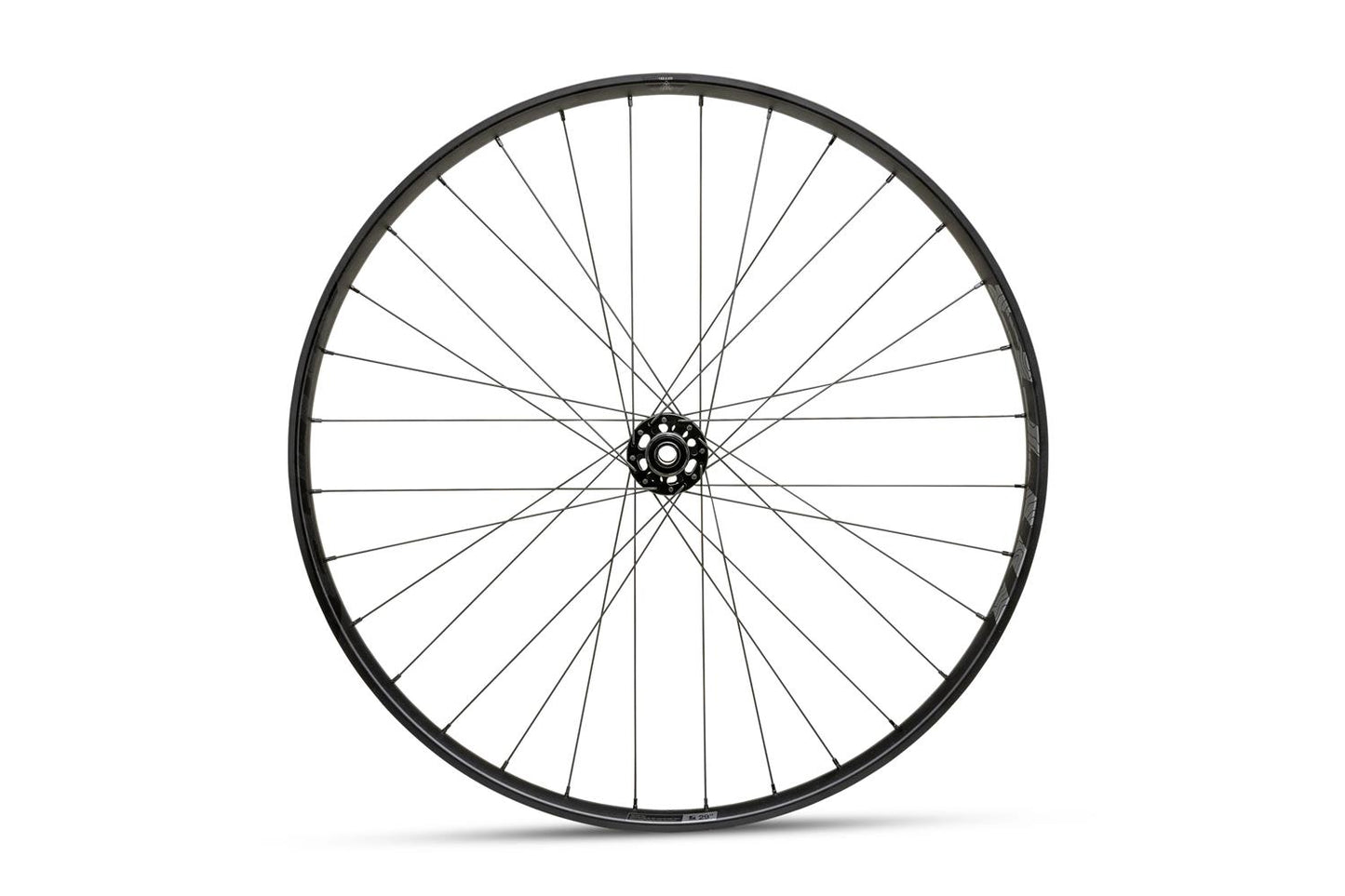

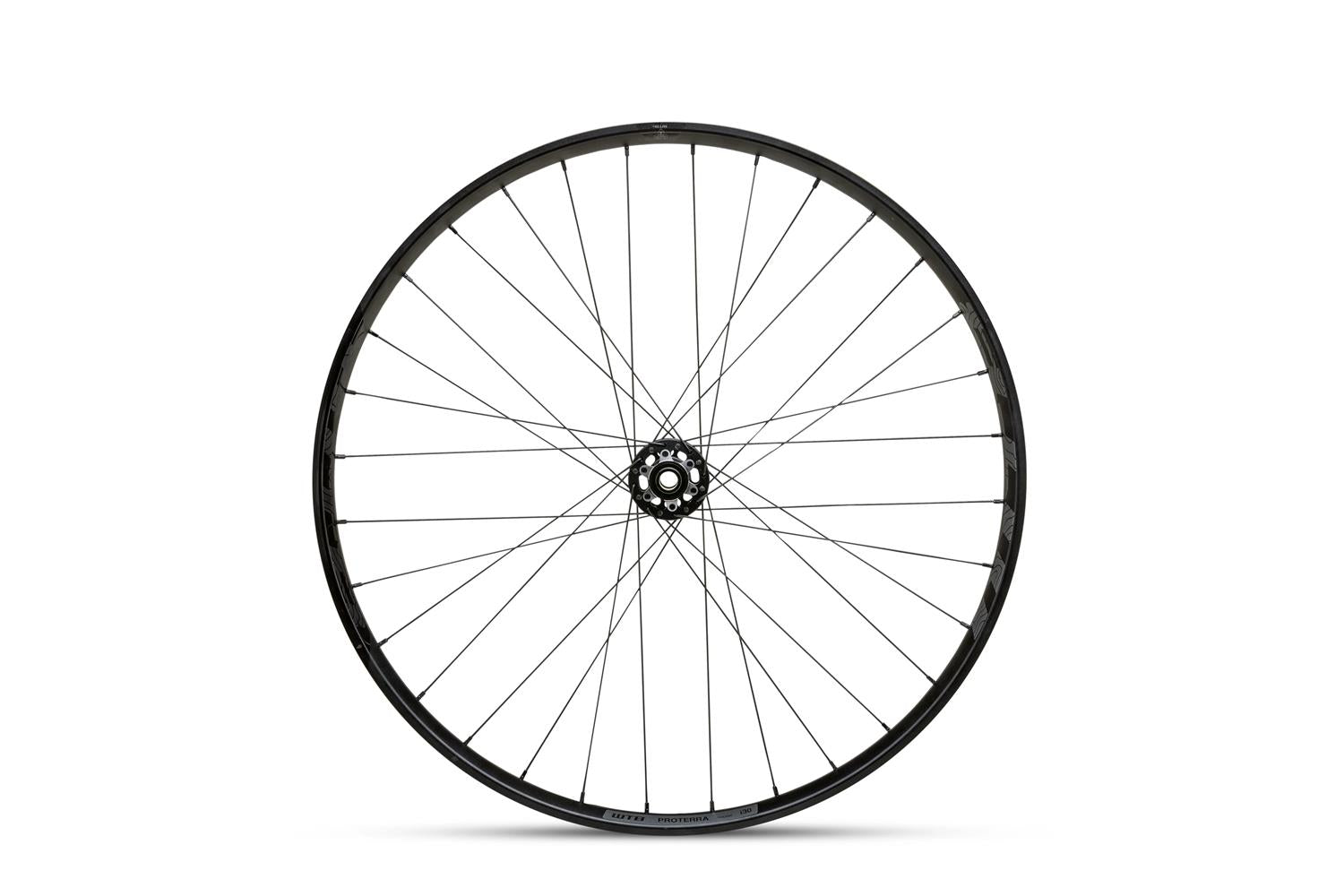

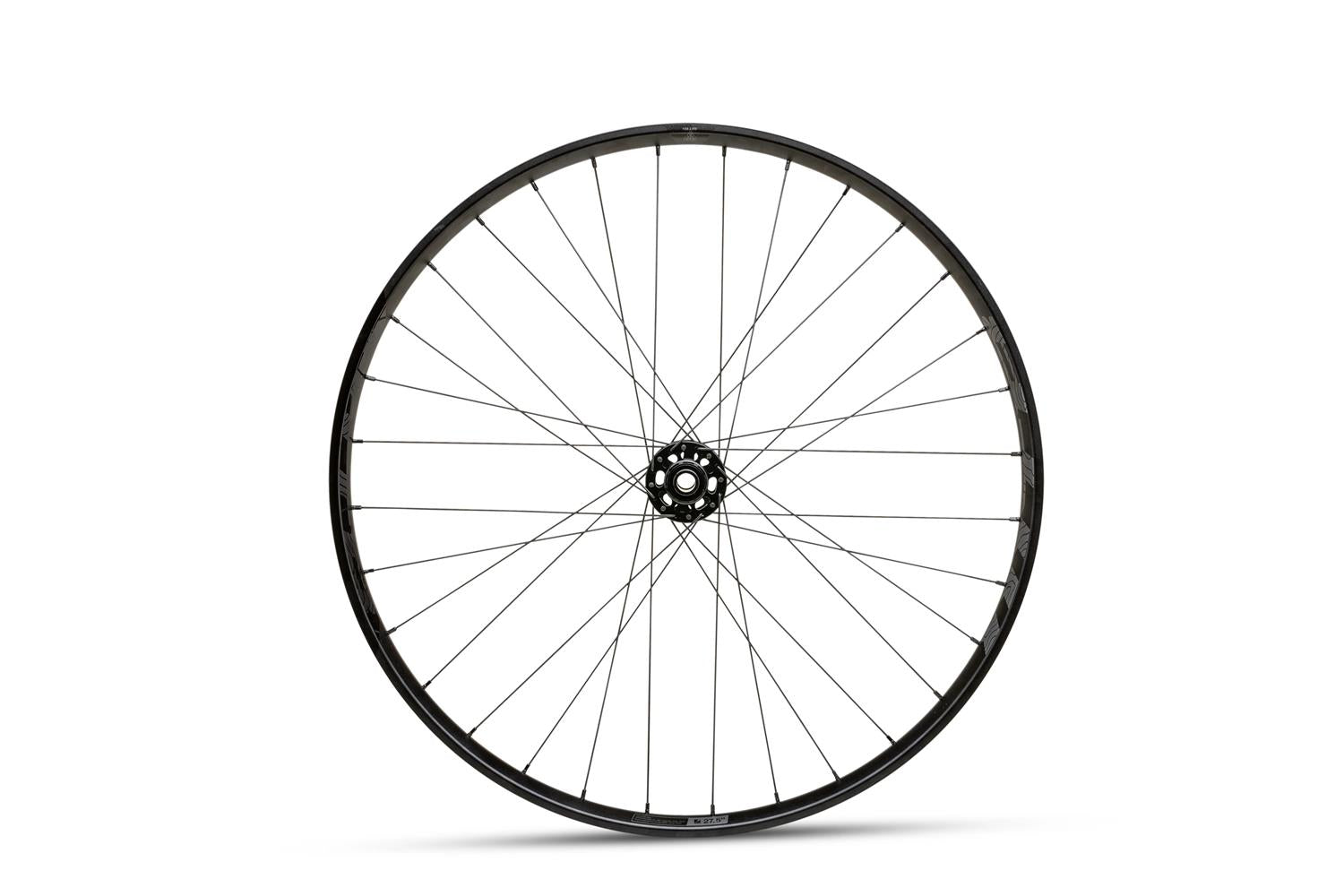

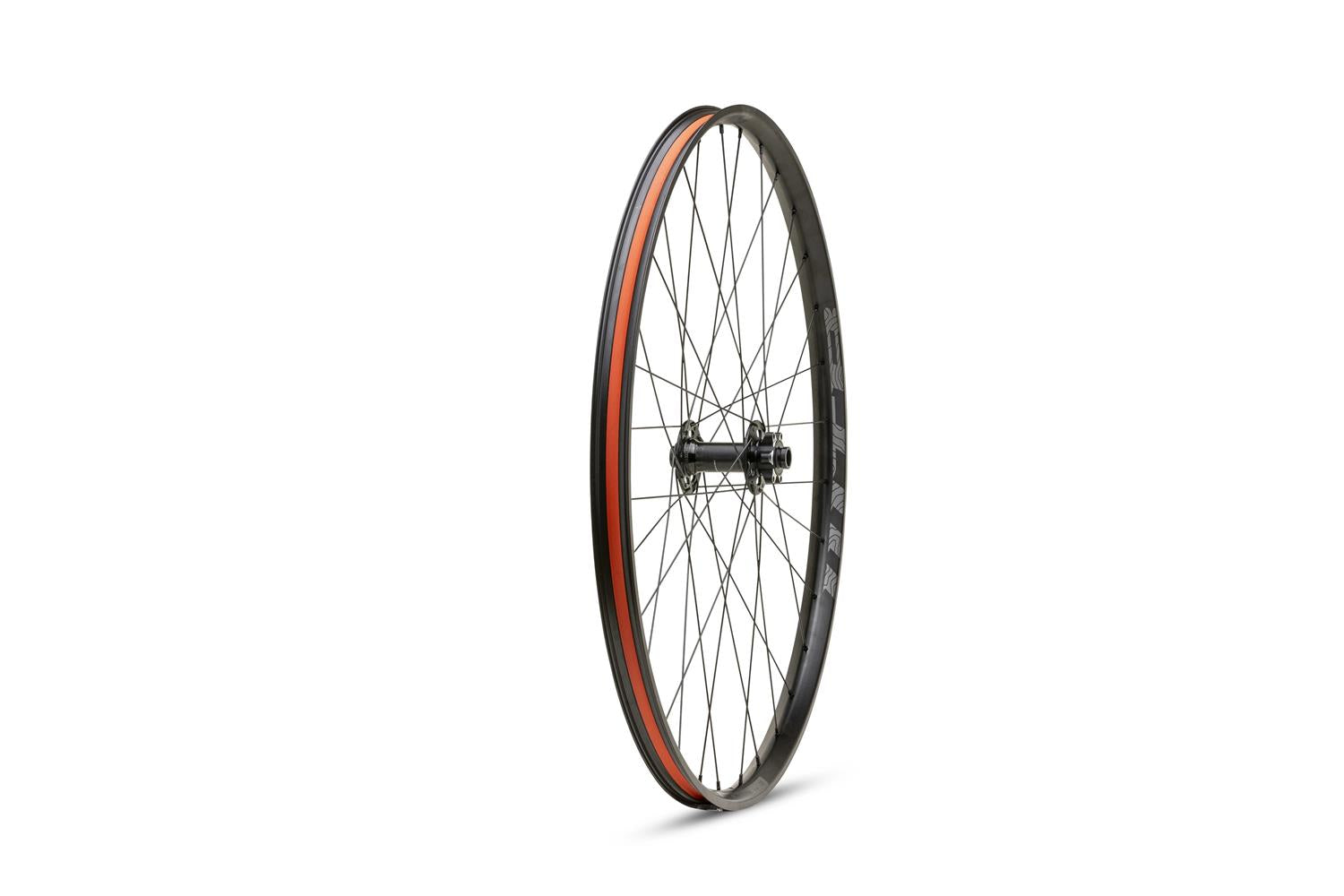

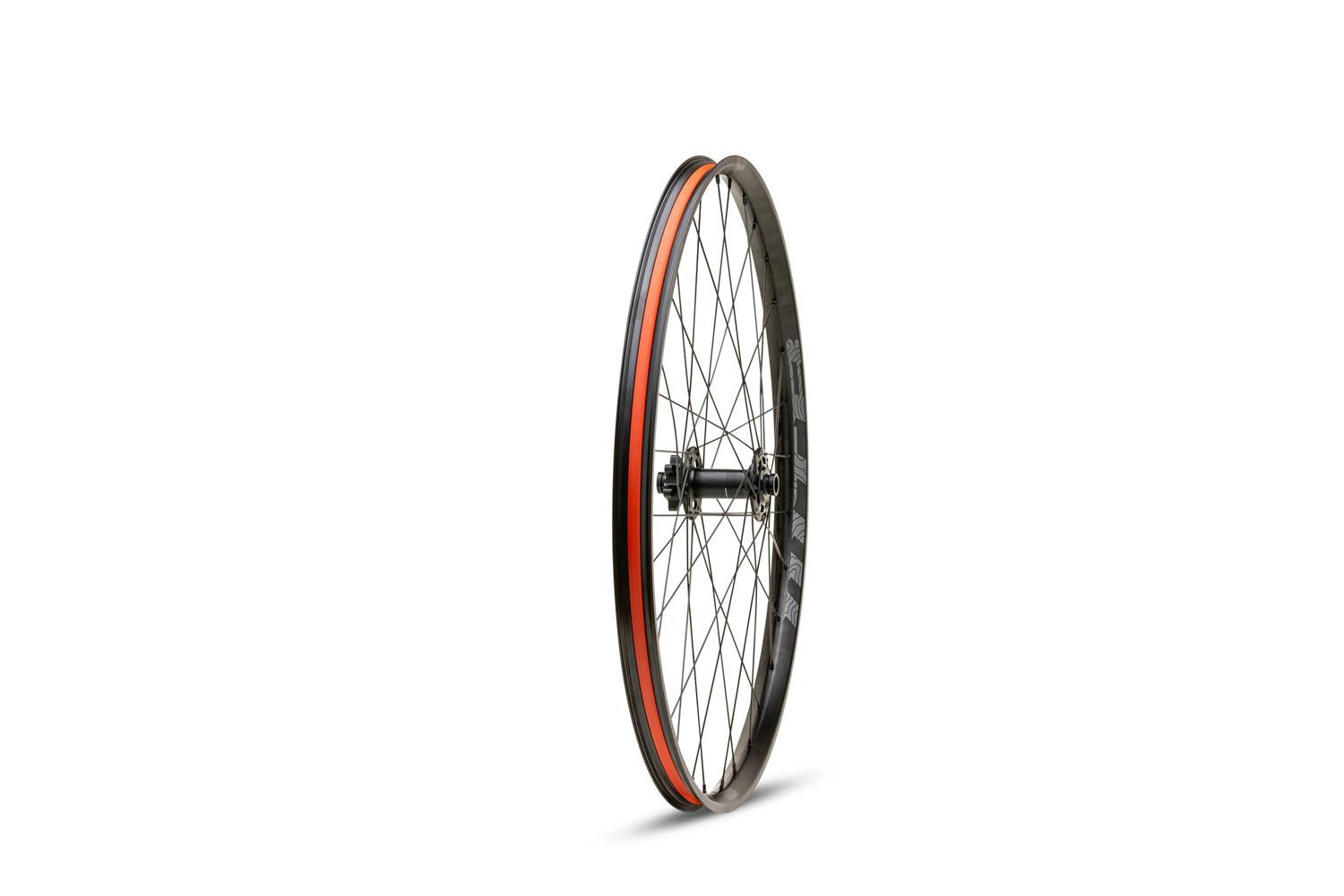

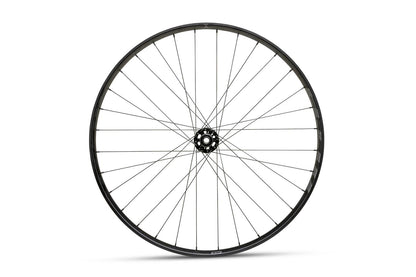

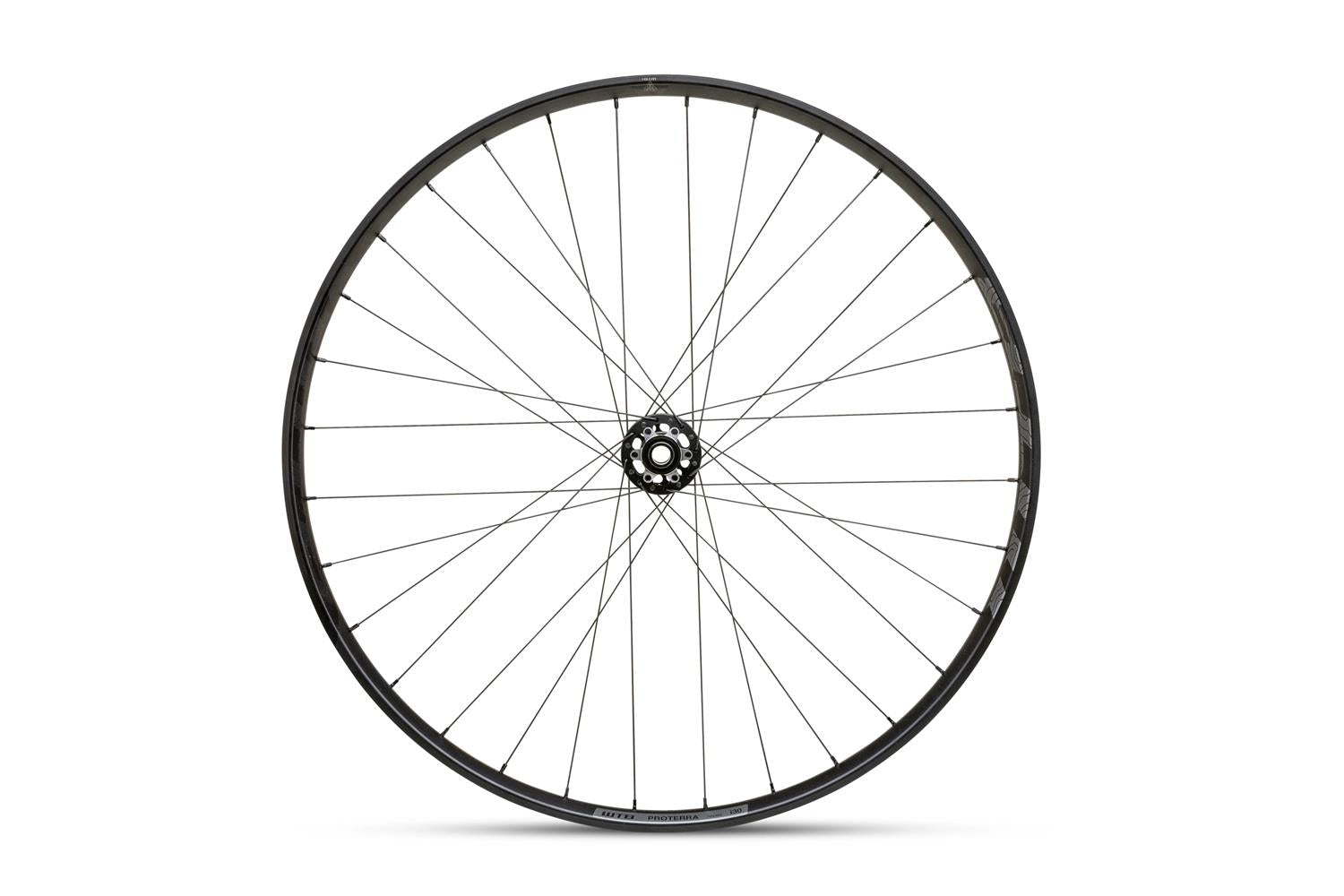

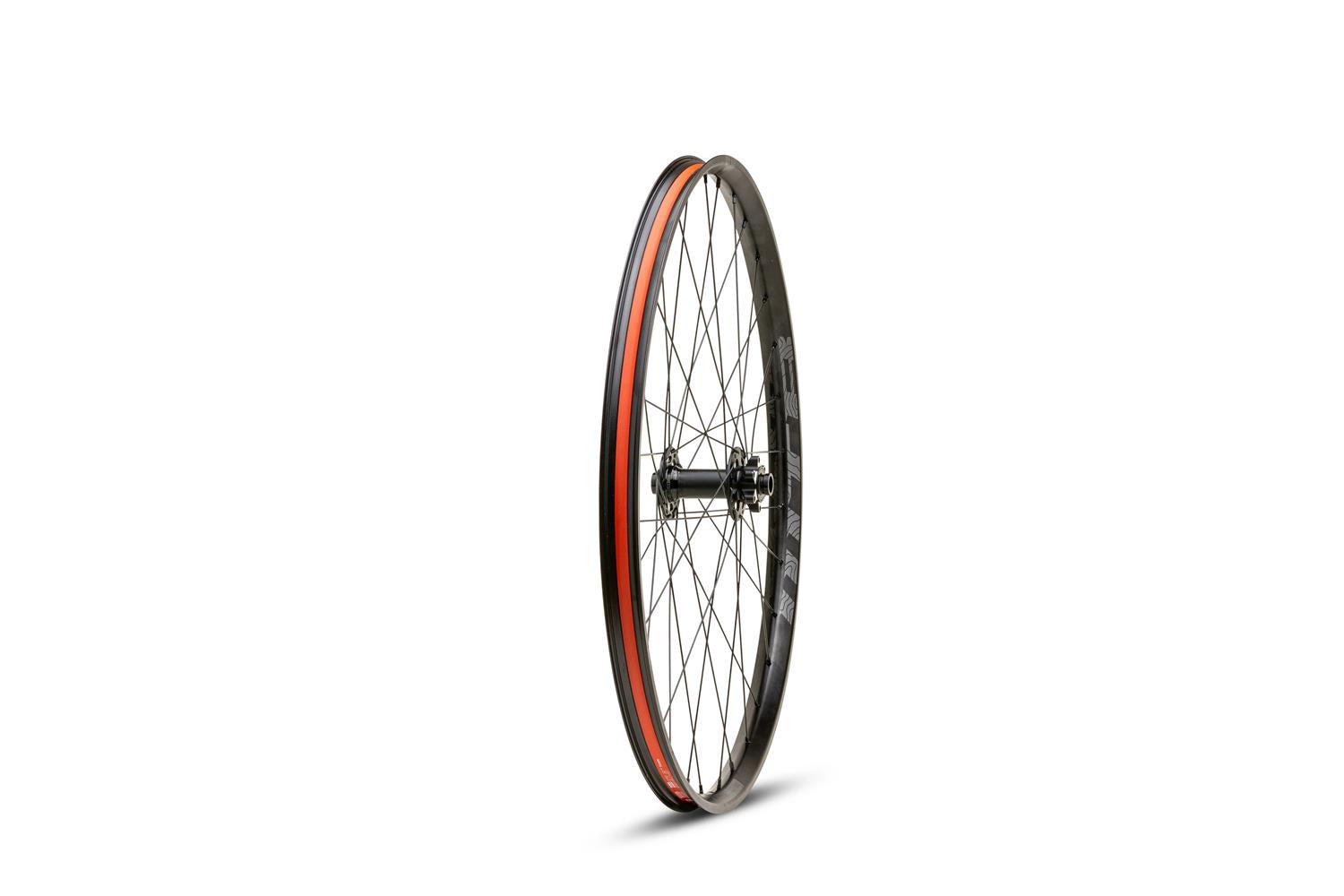

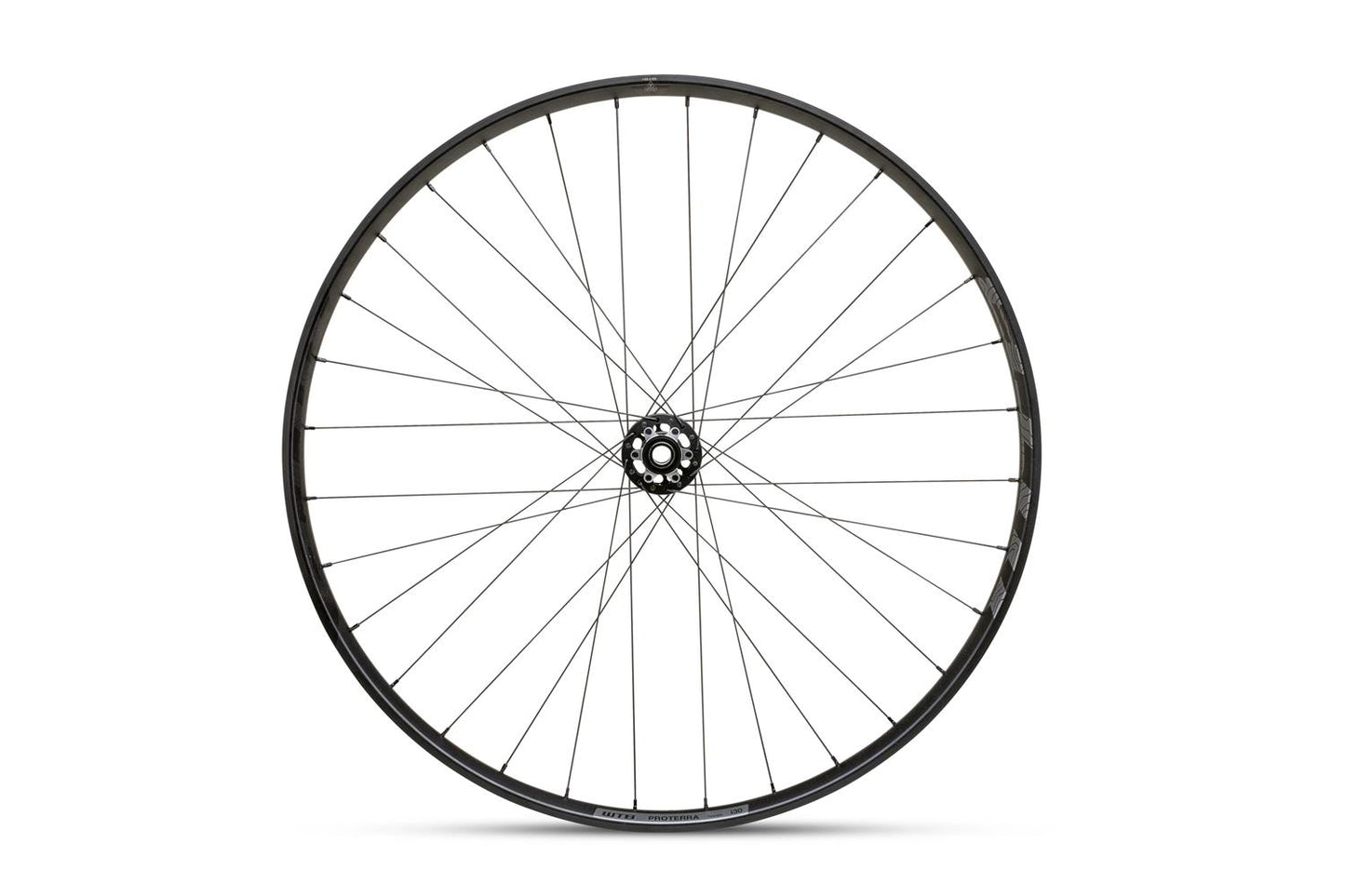

Proterra Tough i30 wheels keep the trail in check while everything else blurs by in the periphery. Reinforced by our proven Dual I-Beam support, Proterra Tough rims feature a 30mm internal width to provide higher tire volume while also increasing sidewall support at lower pressures.
High-quality EZO sealed bearings are designed to endure through seasons of aggressive riding while a responsive 6-pawl freehub provides the snappy 5 degrees of engagement you demand when cranking out of corners. Choose Proterra Tough when you need a wheel that won’t let you down.
SPECIFICATIONS: (Max spoke tension range: 110-120KgF)
|
Product |
Wheel Diameter | Position | Spacing | Spoke Holes | Driver Body | Rotor Mount | Inner Rim Width | Rim ERD* | Weight** | Max Rider Weight | Part Number |
|

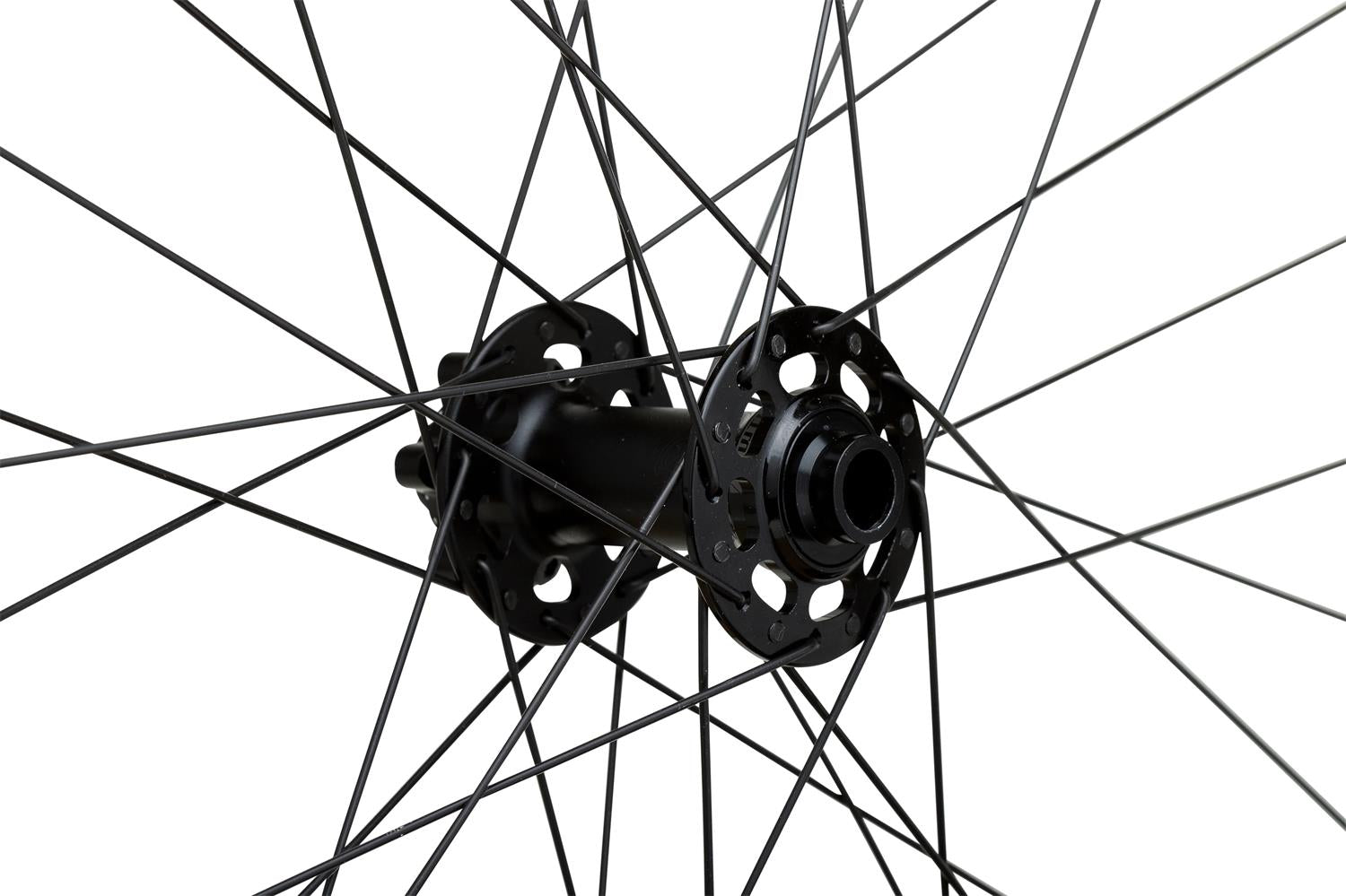

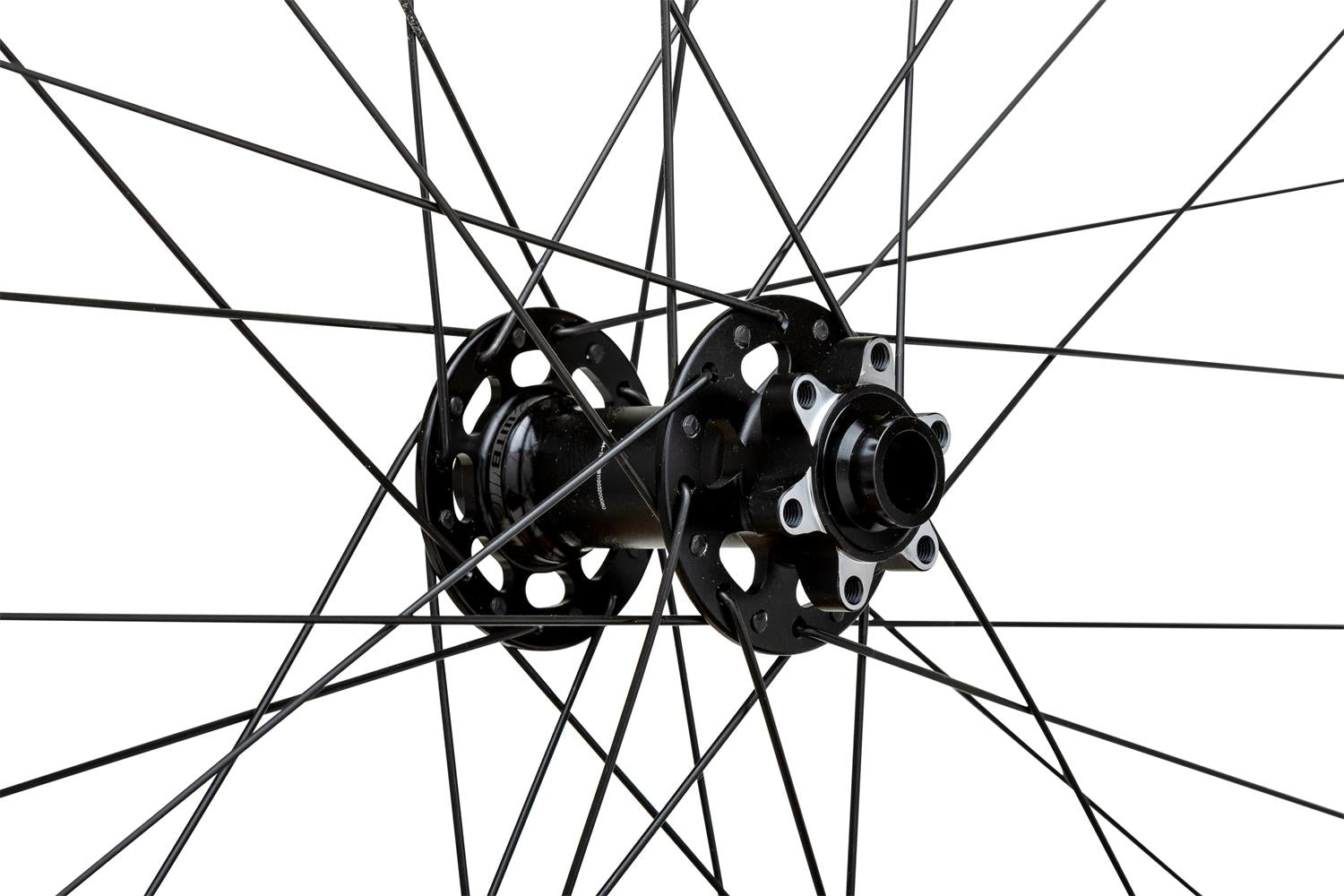

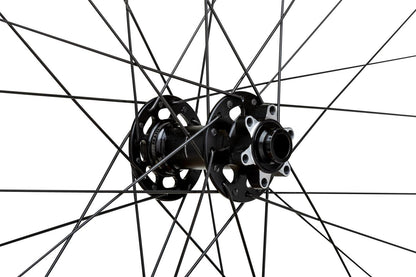

Proterra Tough i30 x 27.5 wheel, 110 x 15mm, 32h, 6-bolt, DB |
27.5" | Front | 15x110mm | 32-hole | n/a | 6-bolt | 30mm | 570 | 930g | 290lbs | W045-0225 |
|

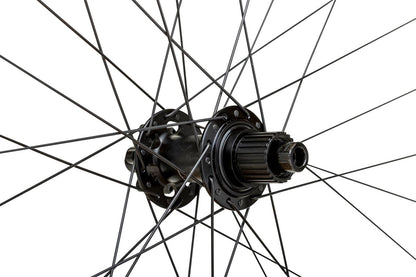

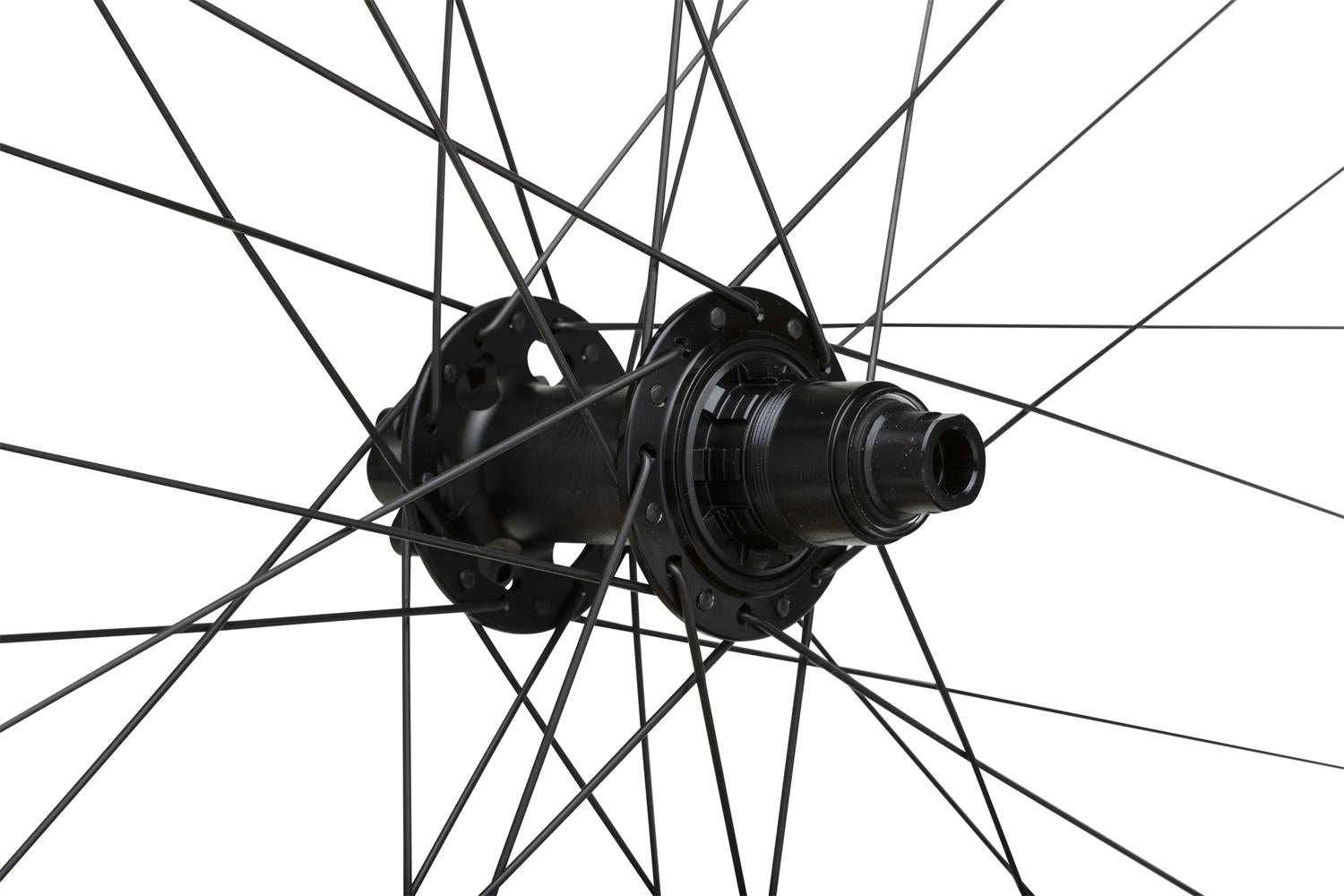

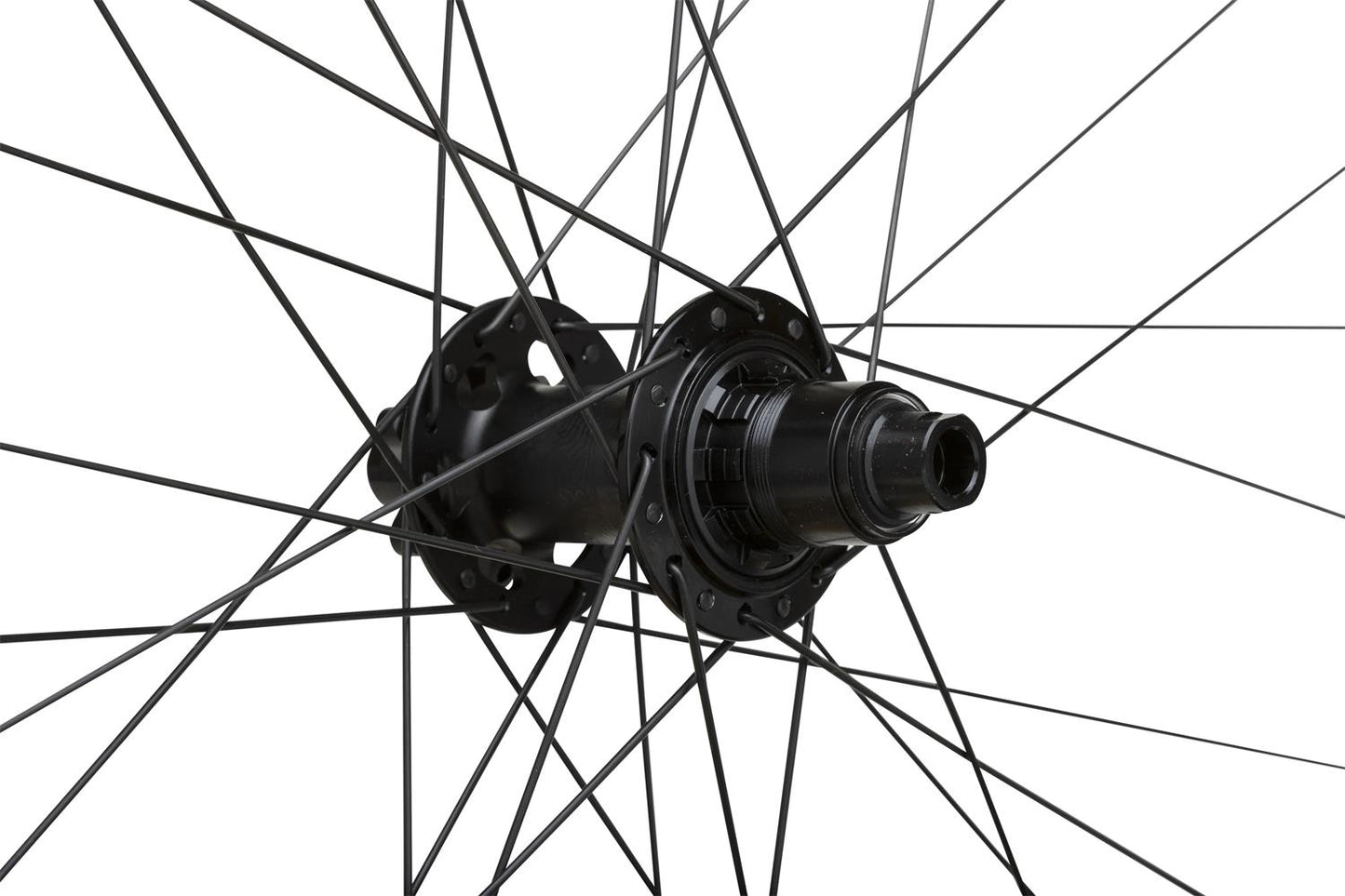

Proterra Tough i30 x 27.5 wheel, 148 x 12mm, 32h, 6-bolt, DB, SRAM XDR |
27.5" | Rear | 12x148mm | 32-hole | SRAM XDR | 6-bolt | 30mm | 570 | 1076g | 290lbs | W045-0229 |
|

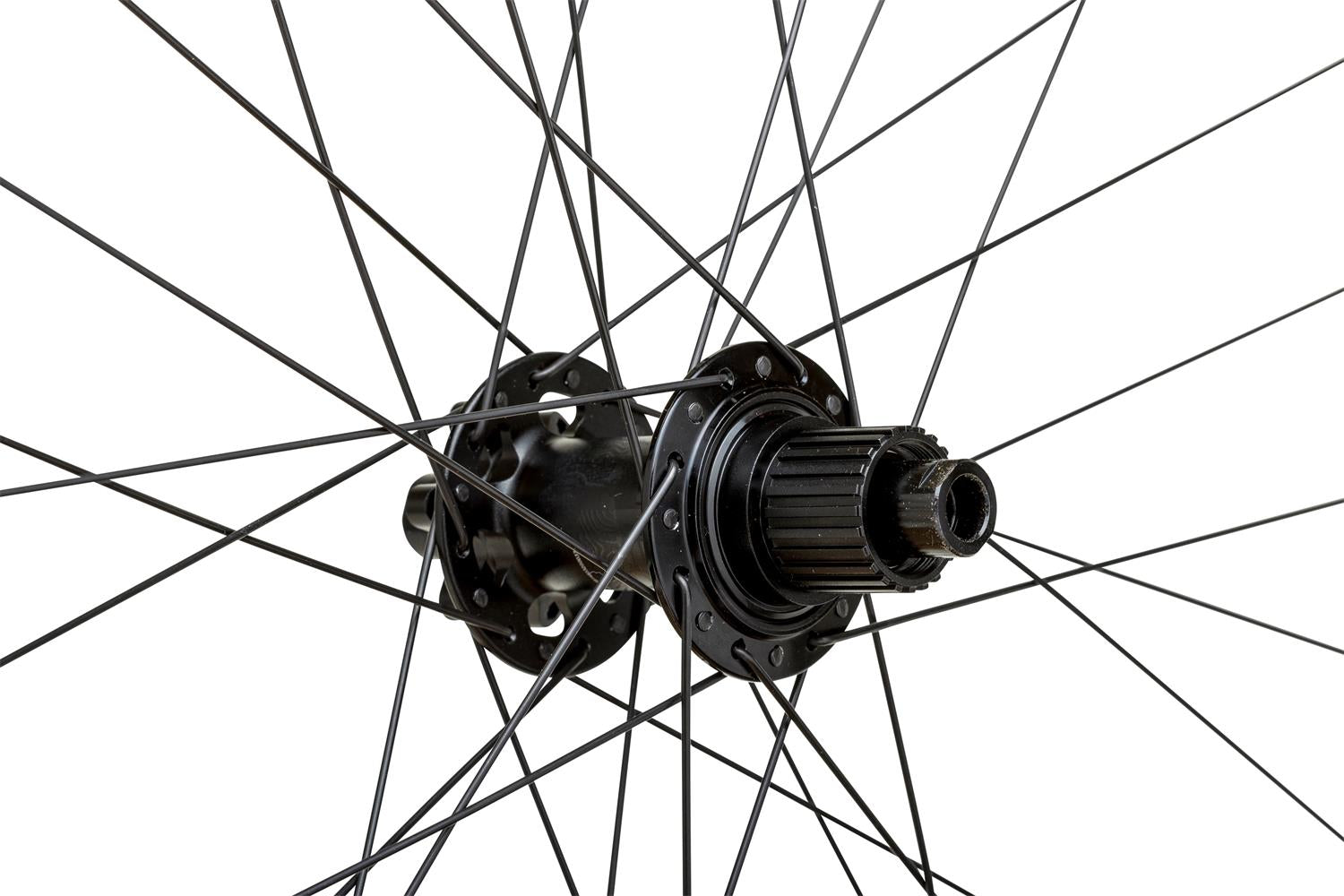

Proterra Tough i30 x 27.5 wheel, 148 x 12mm, 32h, 6-bolt, DB, Shimano MS |
27.5" | Rear | 12x148mm | 32-hole | Shimano Microspline | 6-bolt | 30mm | 570 | 1076g | 290lbs | W045-0230 |
*Proterra hub dimensions can be found on our Resources and User Manuals page.
**Proterra wheel weights include the Solid Strip, tubeless tape and valve installed on each wheel.
