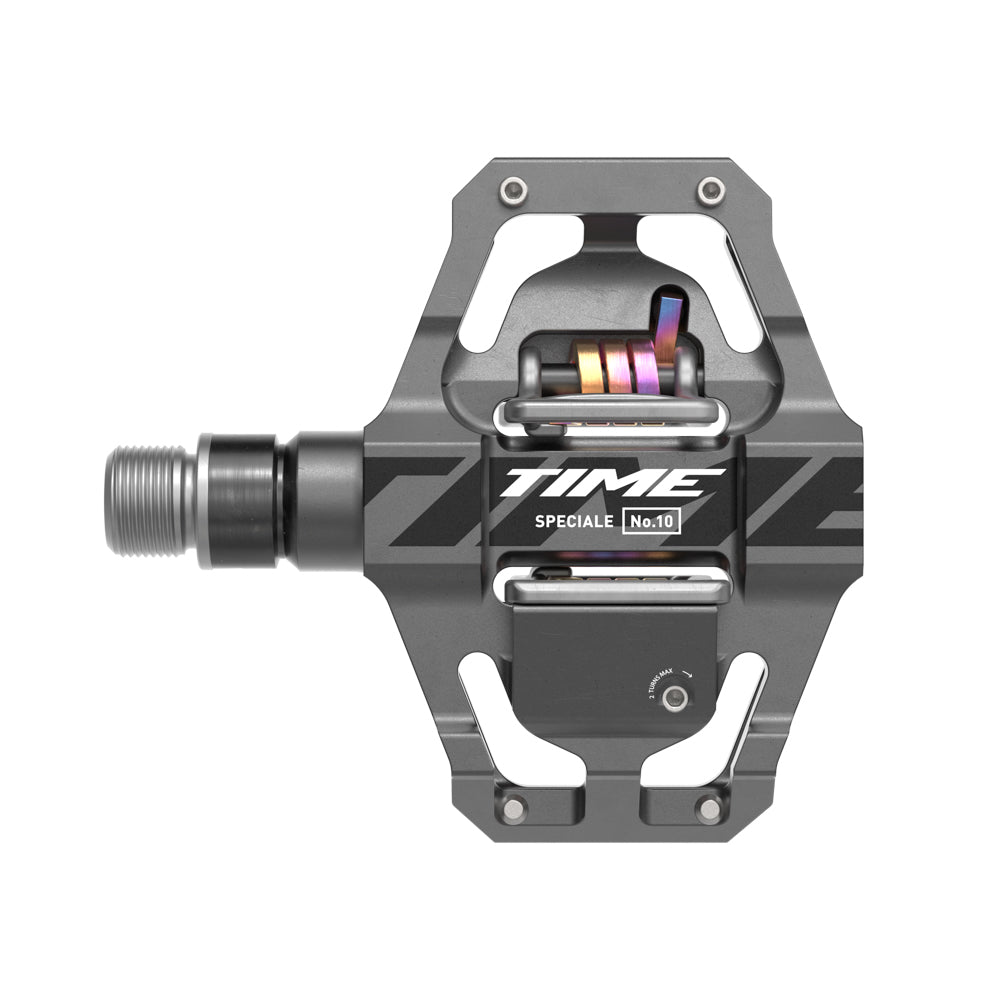

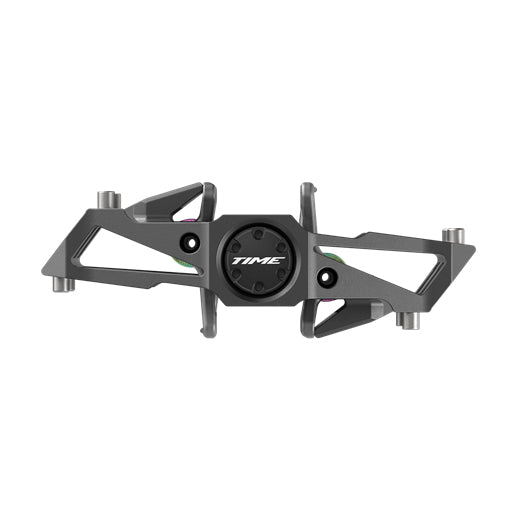

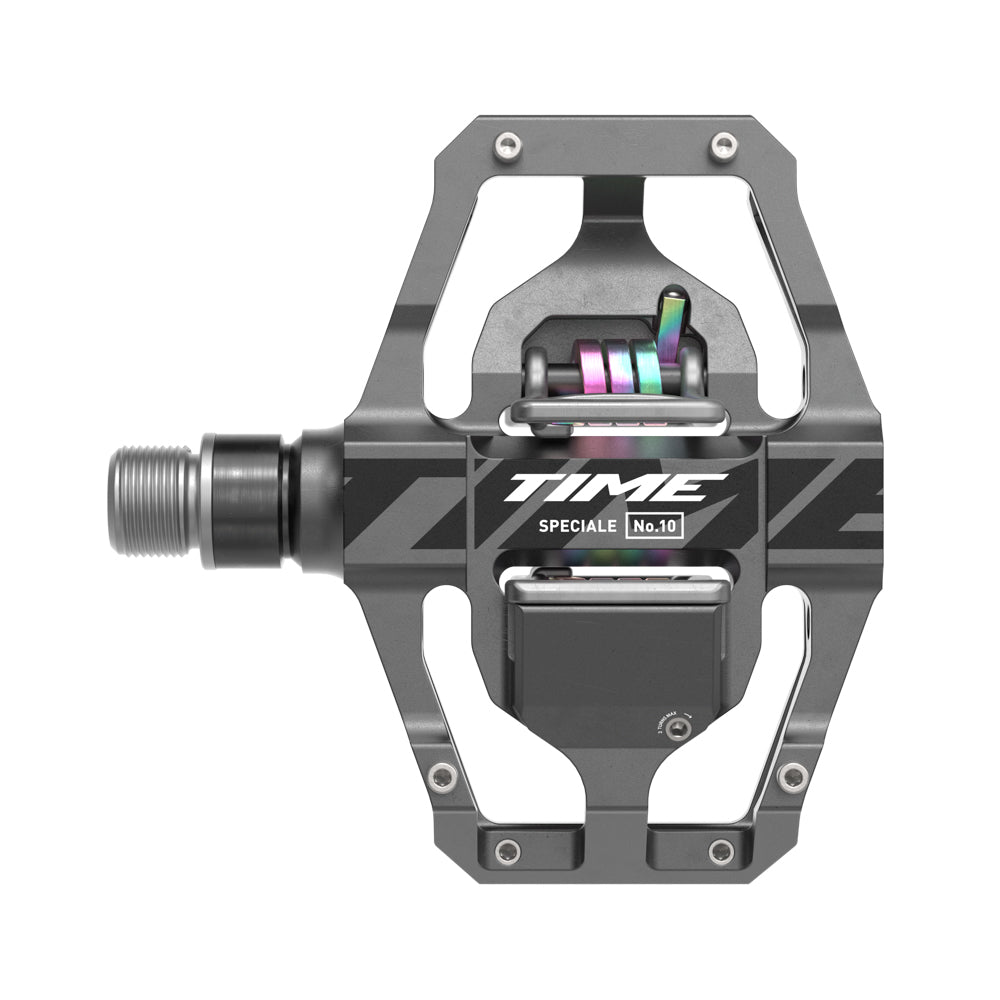

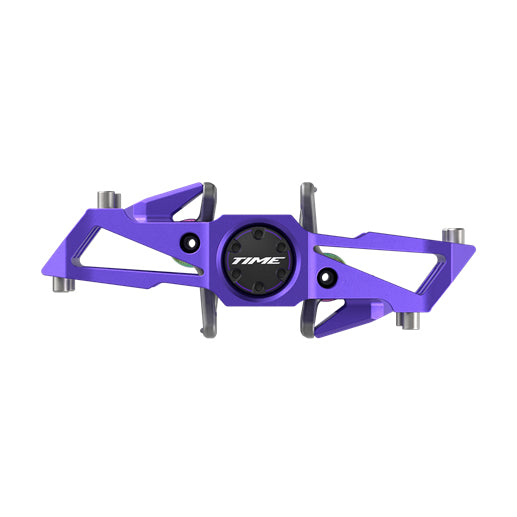

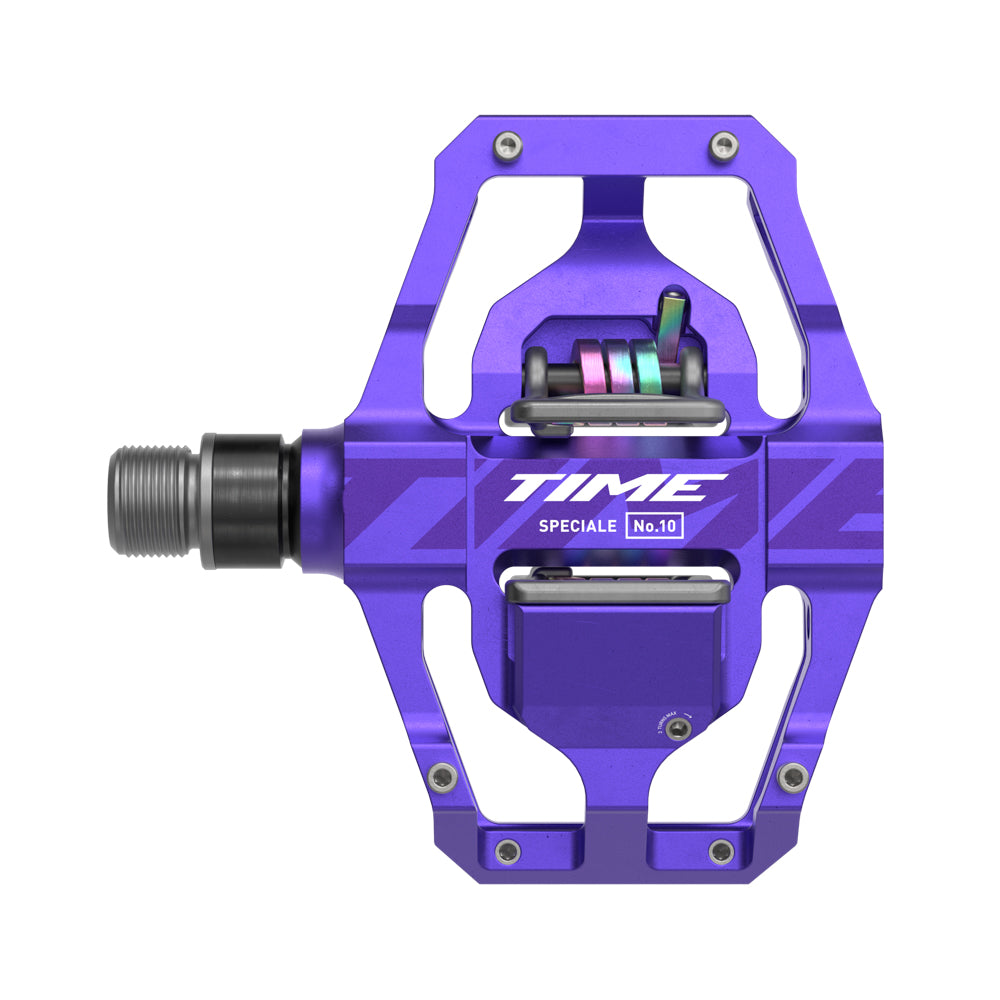

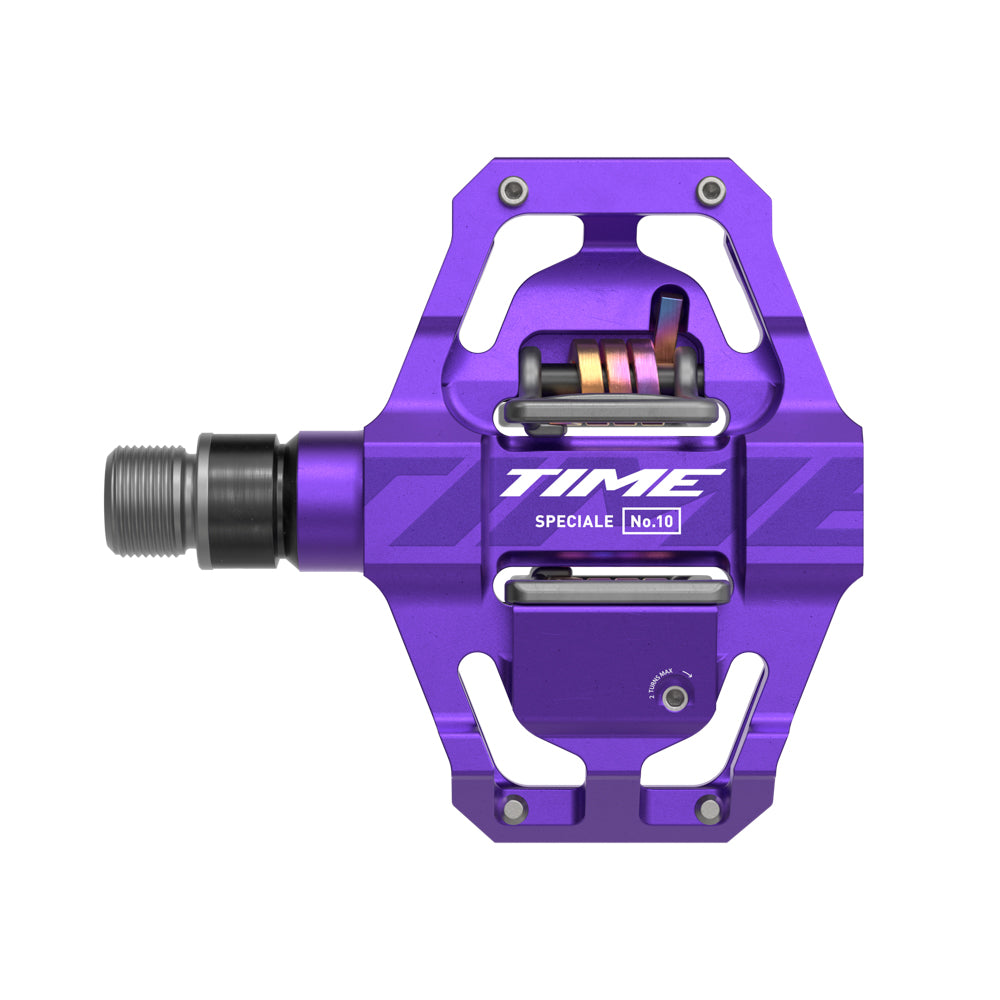

TIME SPECIALE 10 PEDAL
The SPECIALE 10, while inspired by the premium SPECIALE 12, also stands on its own as a high-performance pedal. This pedal is up to the challenge of whatever downhill, Enduro and trail riding throws your way. Pick from two sizes: Large (69x90mm) for downhill and Enduro, or Small (64x80mm) for trail or Enduro. Grippy and durable, the SPECIALE 10 features an alley anodized platform and oversized hollow steel spindle. The pedal is spring-retention adjustable (micrometric) to meet the demands of advanced riders and features TIME's ATAC design for easy entry, predictable release, and mud clearance for reliable performance in all conditions.
SPECIFICATIONS
| Axle component |
Oversized hollow steel axle |
| Bearings |
Steel |
| Body component |
6106 T6 - Aluminum |
| Cleats |
ATAC cleats |
| Pedal stack height |
18.3mm |
| Angular freedom |
+5° to -5° with free cleats, 0° with fixed cleats |
| Contact surface area |
n/a |
| Distance pedal spindle / crank arm |
54mm |
| Lateral freedom |
+2.5 mm or -2.5 mm |
| Release angle |
10° with ATAC Easy cleats, 13 or 17° with ATAC cleats |
| Tension |
Micro adjustment |
| Threading |
9/16 - 20 inch |
| Weight (per pedal) |
197g, 202g |
| Colour (Pedal) |
Grey, Orange, Purple, Raw Aluminum |
| Accessories |
ATAC CLEATS AND 20 GRIP SCREWS |
| Intended use |
Enduro |
| Power Measurement |
Not Compatible |
|
|
FEATURES
- Alloy anodized platform (Color options: Purple, Raw, Dark Grey).
- Adjustments to fine tune for riding preferences.
- ATAC design clears mud with every step-in.
- Easy engagement and performance in all conditions.
- Cleats included with all pedal purchases.
- Large and Small sizes to fit your design.
|
