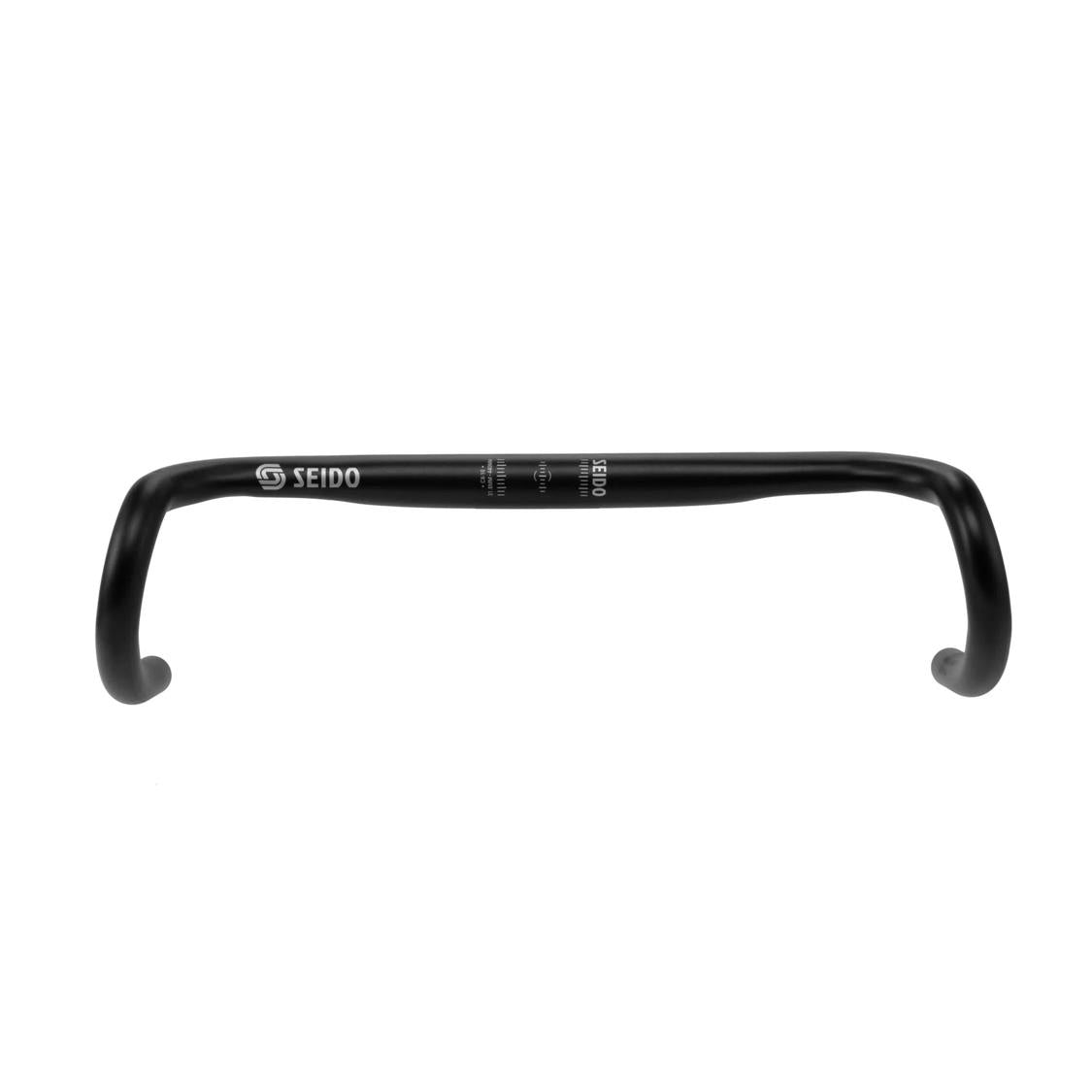

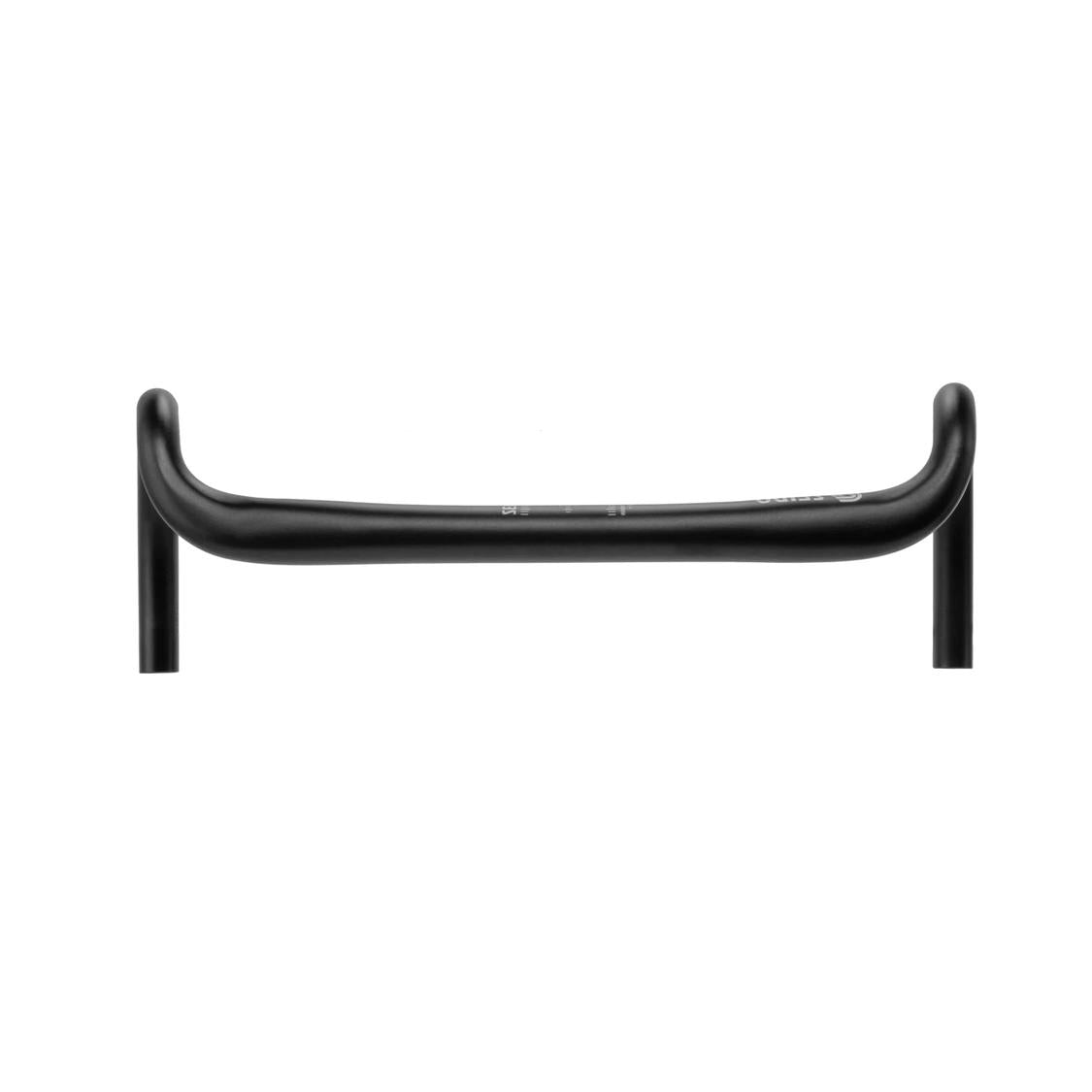

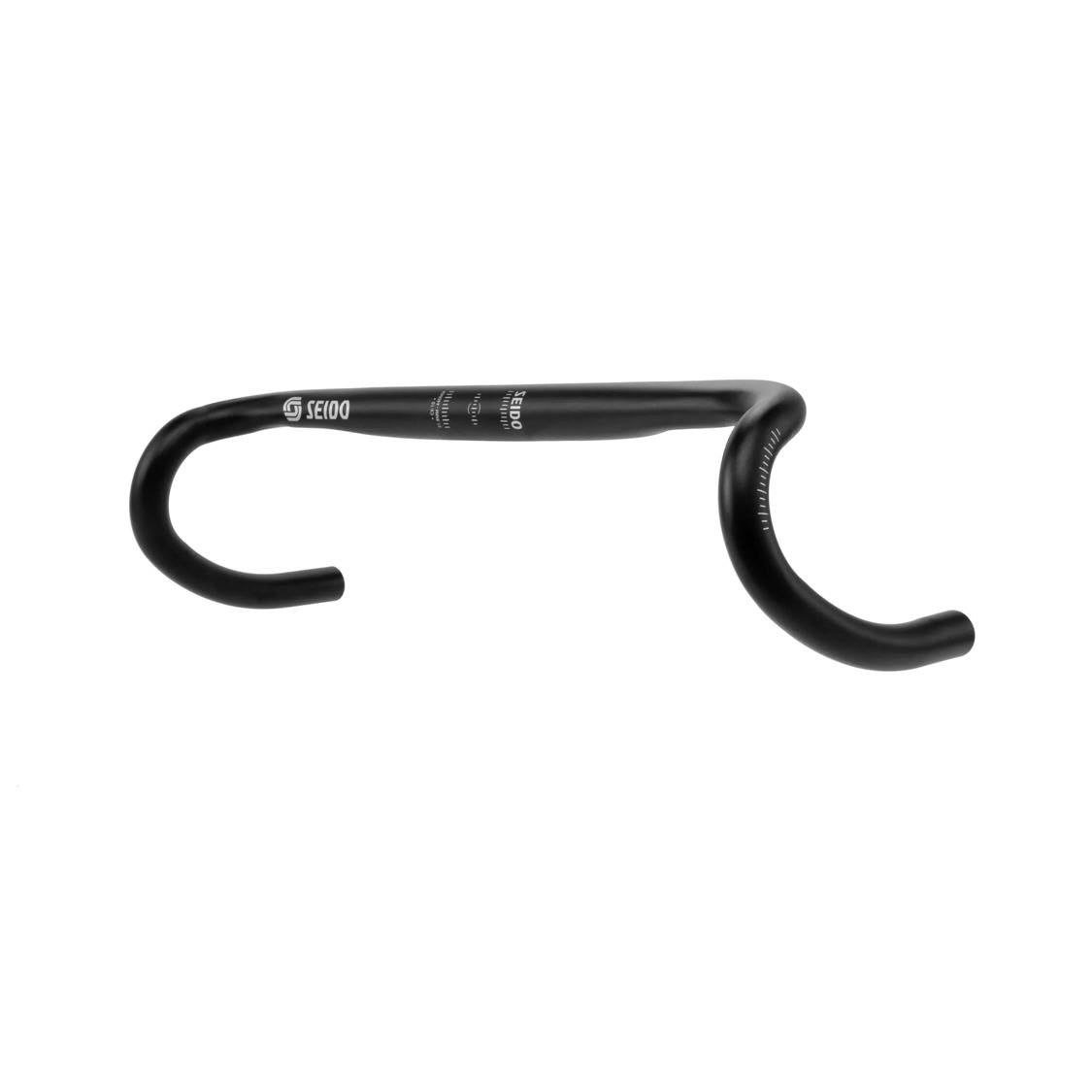

The CX-10 is a traditionally inspired compact drop-bar, that features a 116mm drop combined with a 10° flare. It strikes a great between off-road control and long distance comfort, but also facilitates the quick interchanging between hand positions. This lends itself well to use on cyclocross bikes, as well as criterium race bikes.
- HANDLEBAR TYPE - Drop-bar
- COLOUR - Sandblasted black anodized
- MATERIAL - 6061-T6 butted aluminum
- WIDTH AT HOODS (mm, C-C) - 420 / 440 mm
- WIDTH AT DROPS (mm, C-C) - 466 / 486 mm
- REACH - 75 mm
- FLARE - 10°
- BACKSWEEP (TOP SECTION) - 0°
- DROP - 116 mm
- SWEEP (DROPS) - 0°
- EXTENSION - 148 mm
- RAMP ANGLE - 12°
- WIDTH CLAMPING SECTION - 160 mm ( 420 mm) / 180 mm (440 mm)
- WEIGHT (g) - 370 g (440 mm)
