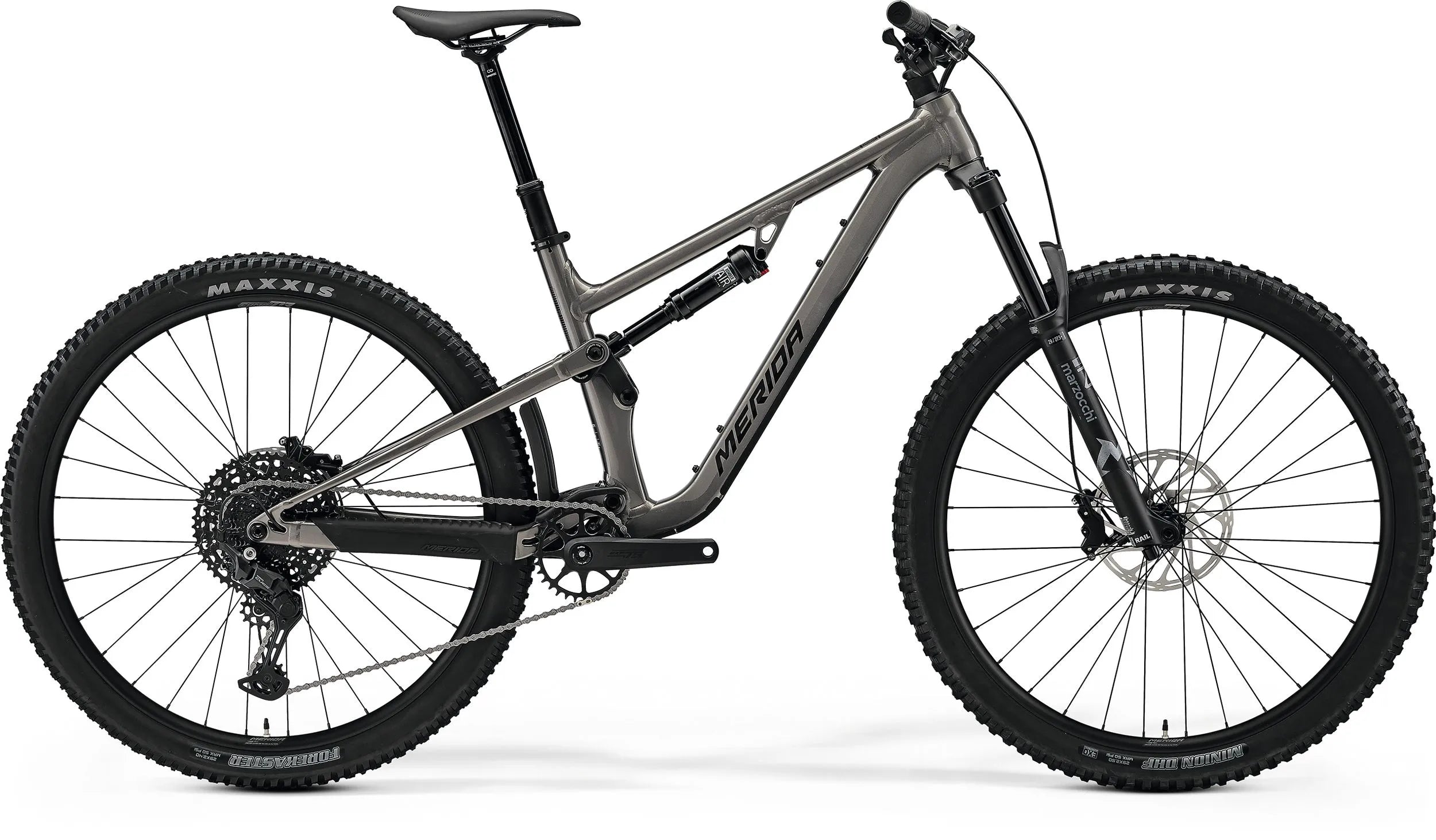

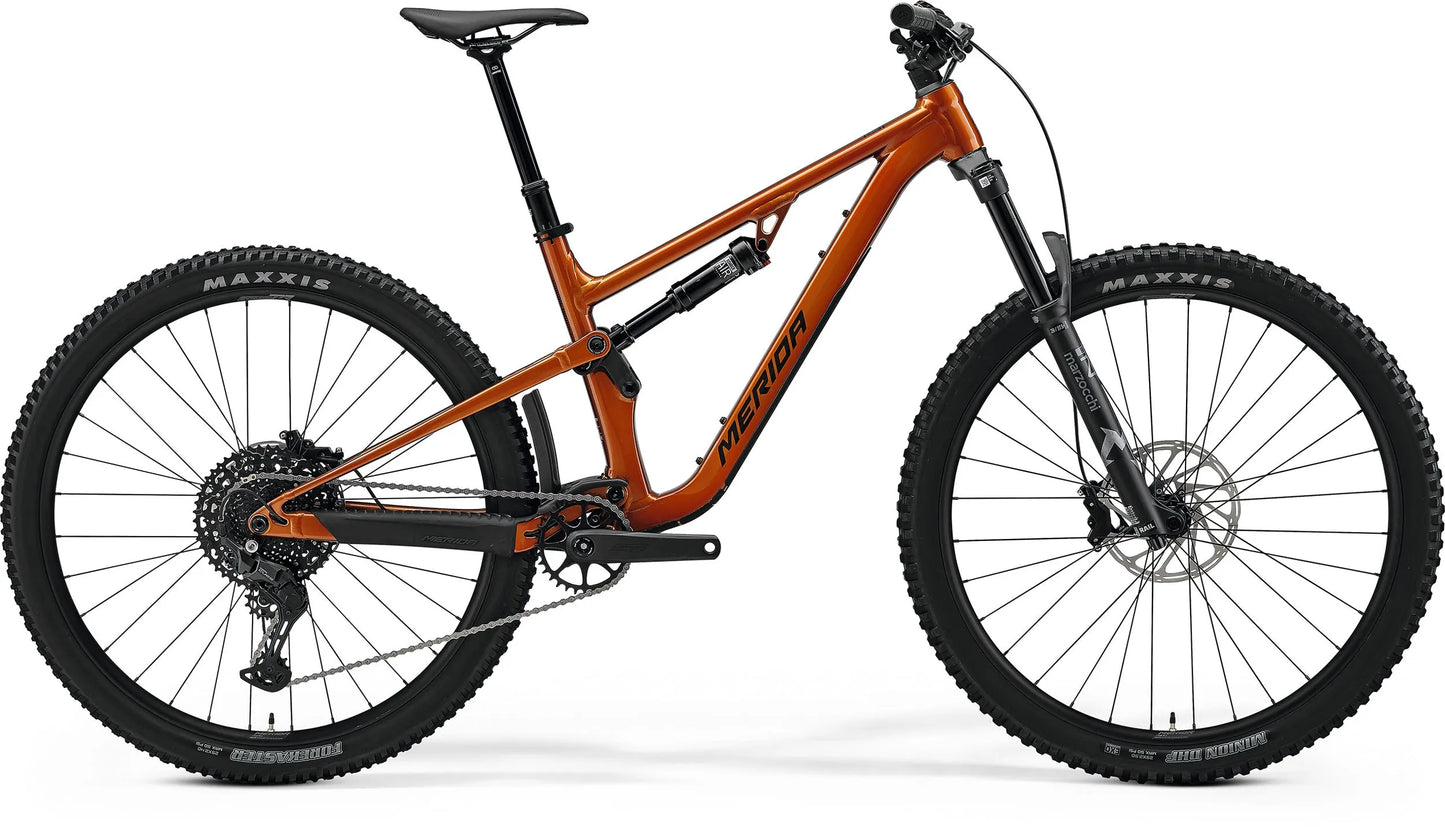

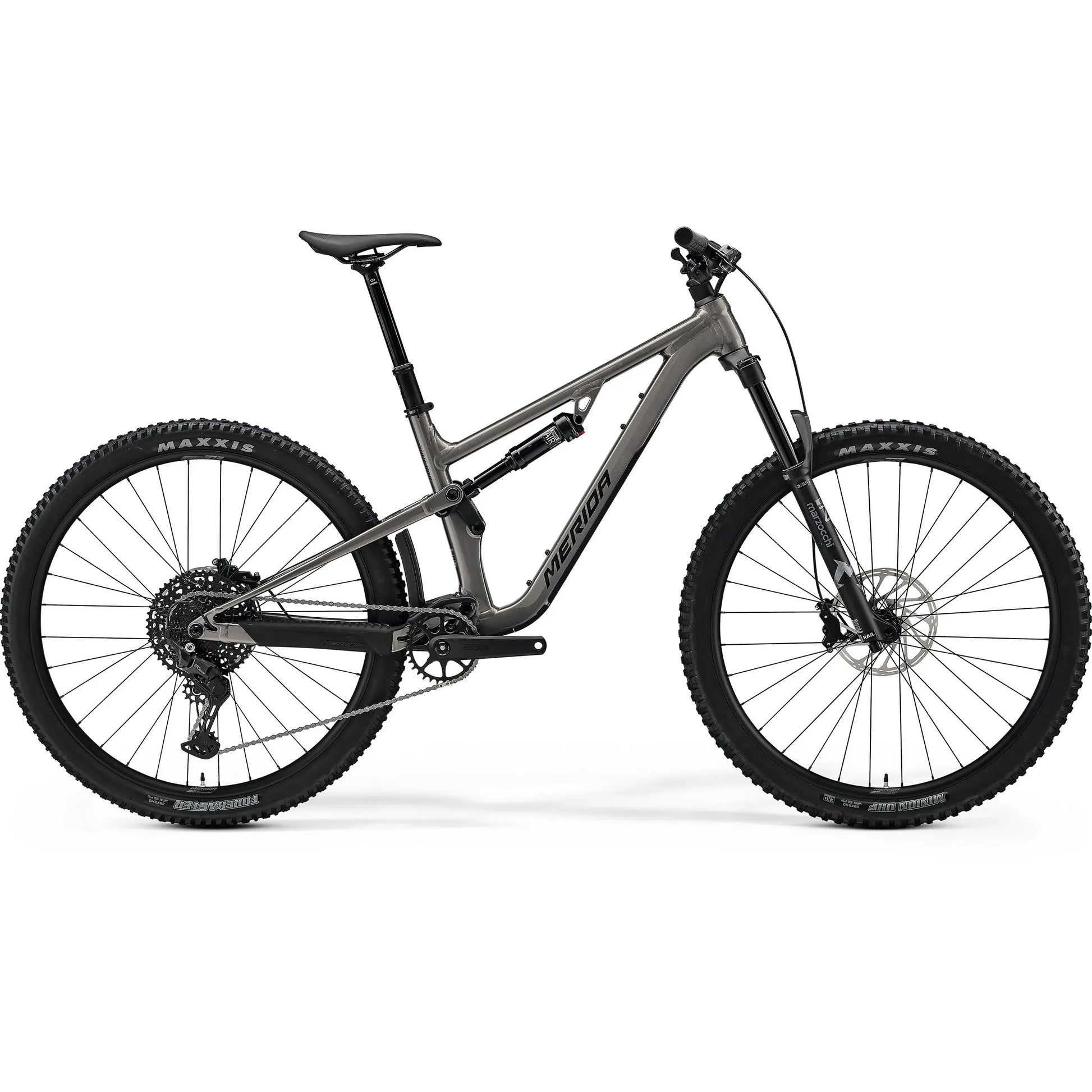

MERIDA ONE FORTY 400 2026
MERIDA ONE FORTY 400 2026
Free in-home basic bike fit
Included with every new bike delivered.
Free first service
Complimentary post-purchase tune to keep your bike running perfectly.
Delivery & pickup
FREE BOP & Waikato: Free home delivery + free bike fit
Auckland: $99 home delivery + free bike fit
Rest of North Island: $199 home delivery + free bike fit
Pickup: Free collection from our Papamoa store
❌ Out of Stock at Papamoa
✅ In Stock at Warehouse
Low stock: 8 left
Features
- Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
- Radical trail geometry with full 29er wheels
- Marzocchi suspension, 150 mm front, 143 mm rear
- Durable, wide-range Shimano CUES 11-speed drivetrain
- 230 mm dropper post on XLong, 200 mm on Long, 170 mm on Mid and 150 mm on Short and XShort
- Powerful 4-piston SRAM DB4 hydraulic disc brakes
The ONE-FORTY 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.
The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focused on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.
| FRAME | ONE-FORTY LITE III, 143 STR 29", MAT aluminium, 29x2.5" max. WHS, 148x12 AST, BSA BBR, |
|---|---|
| SHOCK | Marzocchi Bomber inline, |
| FORK | Marzocchi Z2, Air, 150 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS, |
| BRAKE FRONT | Sram DB4, 4 piston |
| BRAKE REAR | Sram DB4, 4 piston |
| ROTOR FRONT | Sram CenterLine, 200mm |
| ROTOR REAR | Sram CenterLine, 200mm |
| CHAIN | KMC xGlide, |
| CRANKSET | MERIDA Expert TR II, 32t |
| CRANK LENGTH | 170 mm for all sizes, |
| BB SET | Samox BSA 24mm EB2401, |
| DERAILLEUR FRONT | 0, |
| DERAILLEUR REAR | Shimano CUES U6000, Shadow Plus |
| CASSETTE | SunRace 10-50t CS-UX400 EA5, 10-50t, 11sp Linkglide |
| PEDAL | 0, |
| GRIP | MERIDA COMP TR, |
| HANDLEBAR | MERIDA COMP TR, MAT aluminium, 780 WHB, 20 RHB |
| STEM | MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD |
| STEM SIZE | 40 mm, |
| HEADSET | Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock |
| RIM | MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29", |
| SADDLE | MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT/SHORT: 150mm travel - MID: 170mm travel - LONG: 200mm travel - XLONG: 230mm travel |
| SHIFTER FRONT | 0, |
| SHIFTER REAR | Shimano CUES U6000, |
| TYRE FRONT | Maxxis Minion DHF, 29x2.5", wire, |
| TYRE REAR | Maxxis Forekaster, 29x2.4", wire, |
