Merida MATTS J20 DISC
Merida MATTS J20 DISC
Couldn't load pickup availability

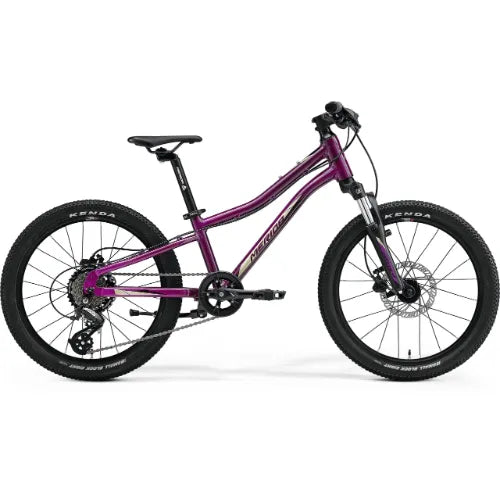

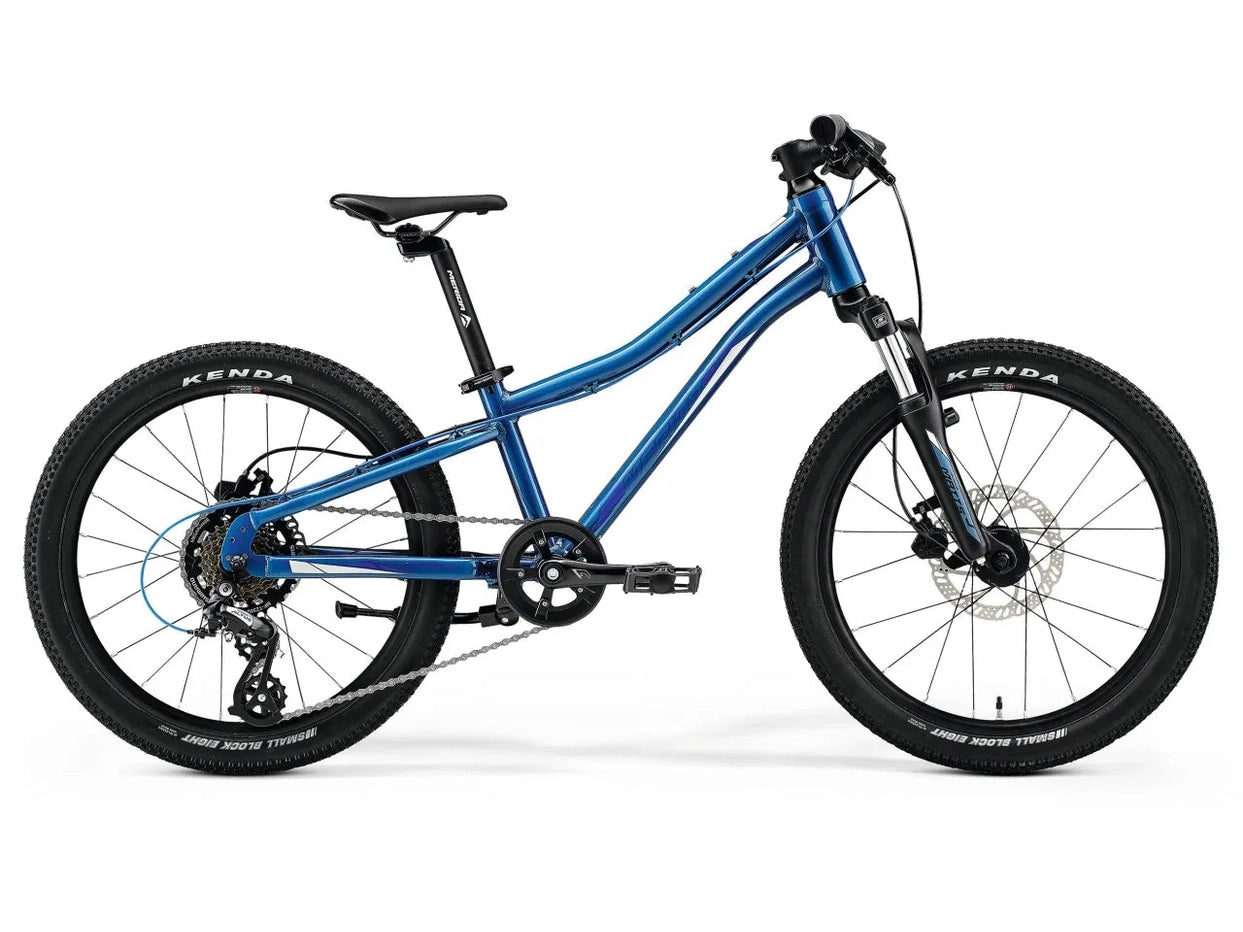

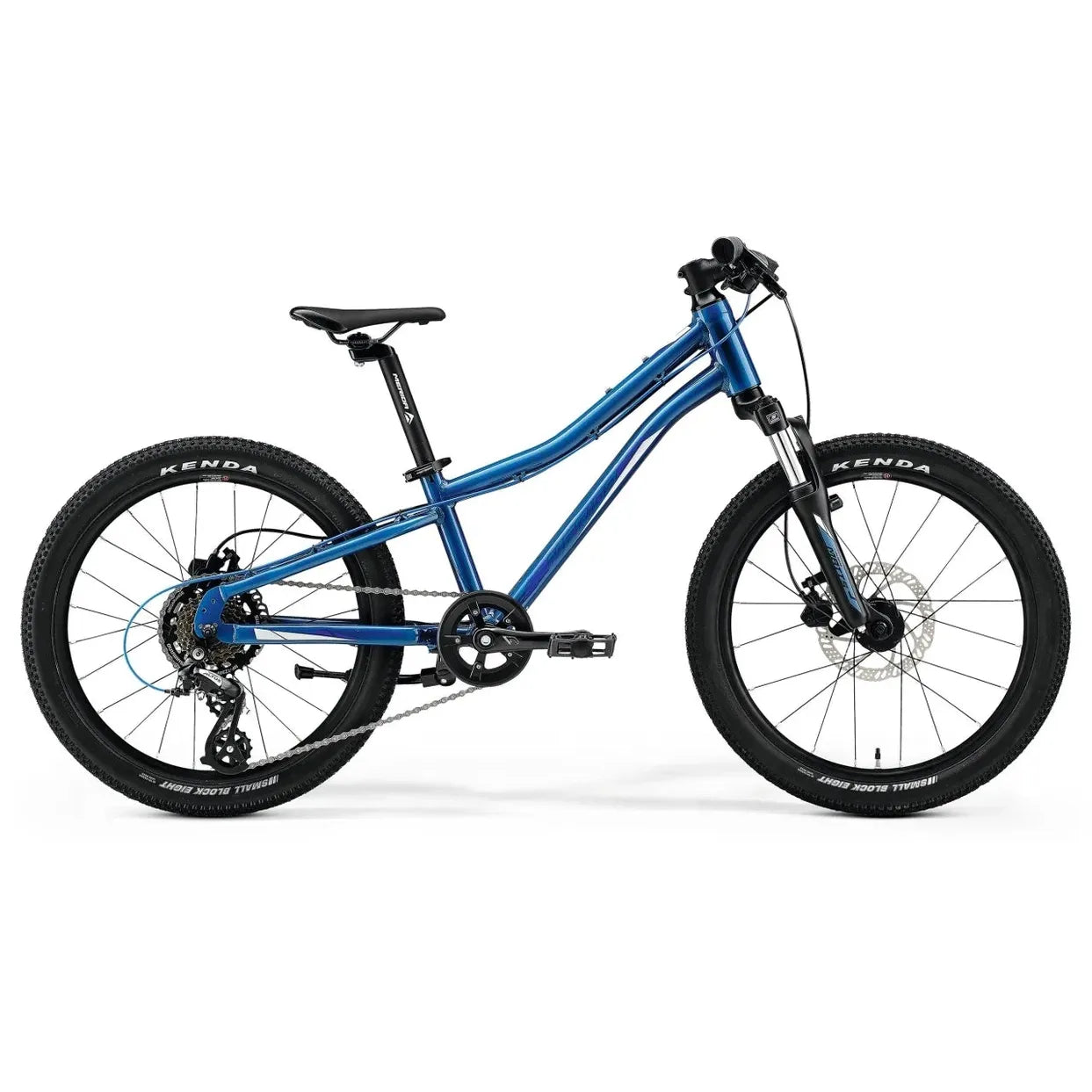

The Merida Matt's J20 is a Hardtail Mountain Bike which has been designed to the specific geometry and needs of a rider approx. 6-10 years old, or between 115-140cm in height. With carefully tailored components, such as the twist shifter and short reach brake lever, ensure that even the less experienced young cyclist can use their bikes safely and comfortably. The frame is manufactured from the same 6061 racelite aluminium as the adult’s bikes, they are also painted and lacquered in the same professional way, so they can handle more than a few hard knocks. 40mm of suspension travel up front helps smoothens things out, while the hydraulic disc brakes provide unrivalled stopping power. A modern 1x7 gear setup avoids confusion for younger riders while also reducing the number of components to maintain. Coming equipped with a kickstand, means this quality ride will not be left lying around. Integrated mounts for a rear rack and mudguards are also included
Features:
- Designed for kids aged 6-10 years
- Lightweight 6061 racelite aluminum frame
- 40mm front suspension for smooth rides
- Hydraulic disc brakes for reliable stopping
- 1x7 gear setup for easy shifting
01. FRAME | MATTS J. 20+, Aluminium, 20", 135x9/100x9, BSA Bottom Bracket |
---|---|
02. FORK | Suntour XCT-JR, Custom coil, 40mm suspension travel |
03. BRAKE FRONT | Tektro M275, two pistons. |
04. BRAKE REAR | Tektro M275, two pistons. |
05. ROTOR FRONT | Tektro, 160mm |
06. ROTOR REAR | Tektro, 140mm |
07. CHAIN | KMC NS8 |
08. CRANKSET | MERIDA EXPERT JR, 28T |
09. CRANK LENGTH | 127 mm |
10. BOTTOM BRACKET | Bearing cartridge |
11. DERAILLEUR FRONT | 0 |
12. DERAILLEUR REAR | Shimano RD-M310 |
13. CASSETTE | Shimano MF-TZ500, 14-34 teeth, 7 speed |
14. PEDALS | Marwi SP-202 |
15. GRIPS | MERIDA EXPERT JR |
16. HANDLEBAR | MERIDA EXPERT JR, Aluminium, 580mm width, 20mm rise |
17. SEAT POST | MERIDA COMP CC, MAT aluminium, 30.9mm, 0° Setback |
18. STEM | MERIDA EXPERT CC, Aluminium, 31.8mm diameter, -5° Rise |
19. STEM LENGTH | 60 mm |
20. HEADSET | FSA TH888 |
21. HUB FRONT | Joytech D041DSE, 100x9mm width front hub, 20 spoke holes |
22. HUB REAR | Joytech D242TSE, 135x9mm width rear hub, 24 spoke holes |
23. RIM | MERIDA JR 20+, Aluminium |
24. AXLE FRONT | 0 |
25. AXLE REAR | 0 |
26. SADDLE | MERIDA COMP JR |
27. SEAT CLAMP | MERIDA COMP QR |
28. SHIFTER FRONT | 0 |
29. SHIFTER REAR | Altus |
30. TYRE FRONT | Kenda Small Black 8, 20x1.95", wire |
31. TYRE REAR | Kenda Small Black 8, 20x1.95", wire |
