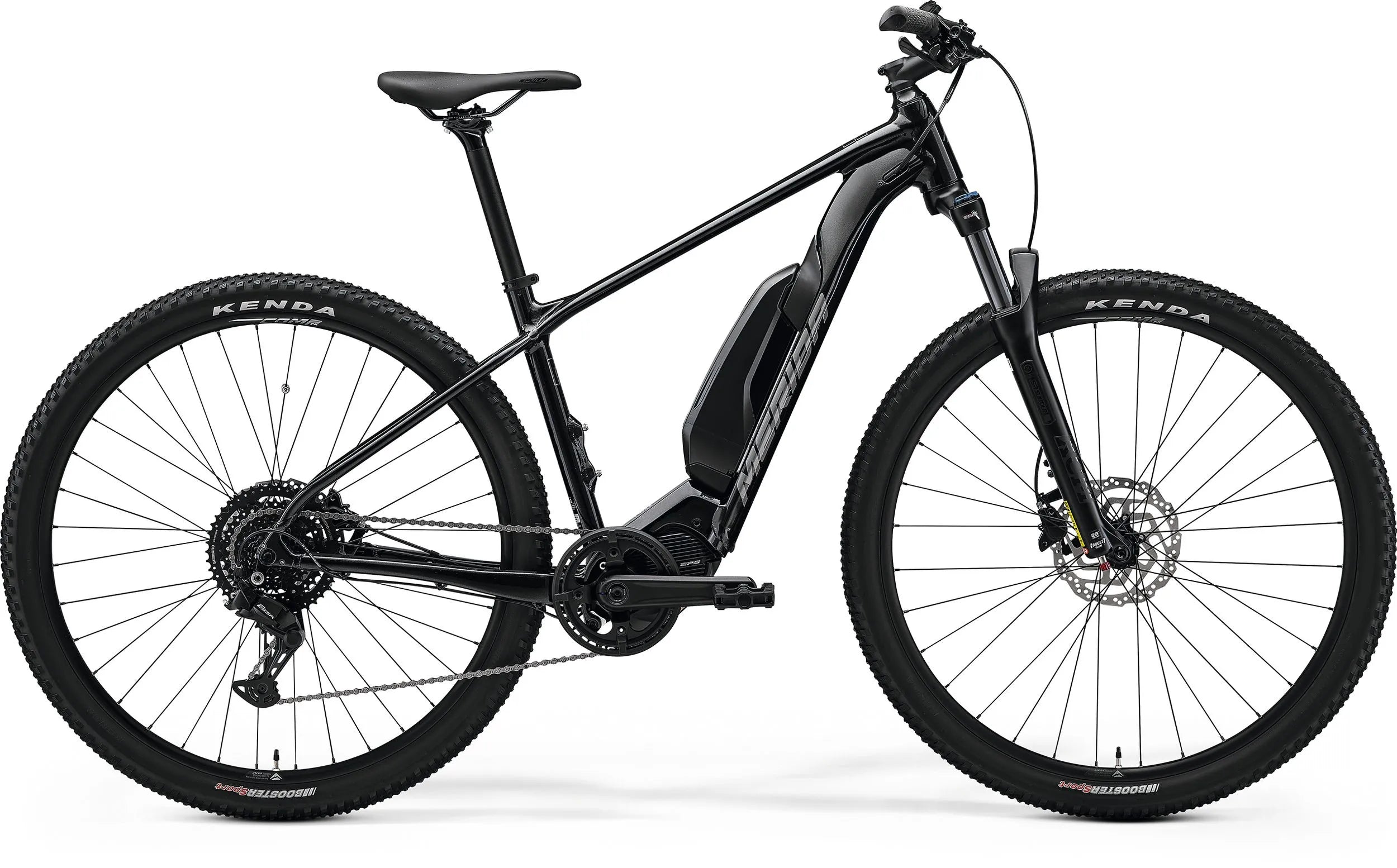

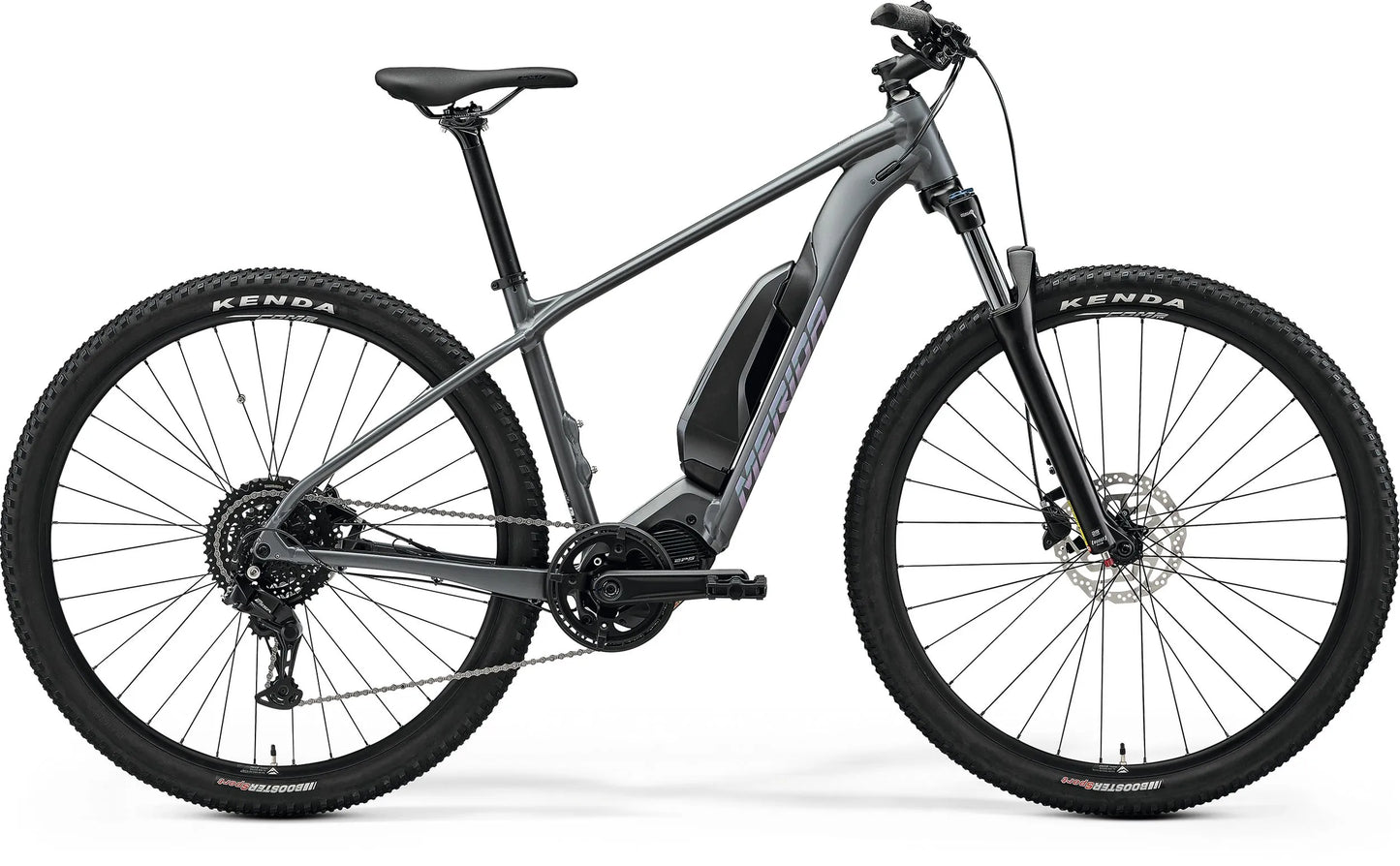

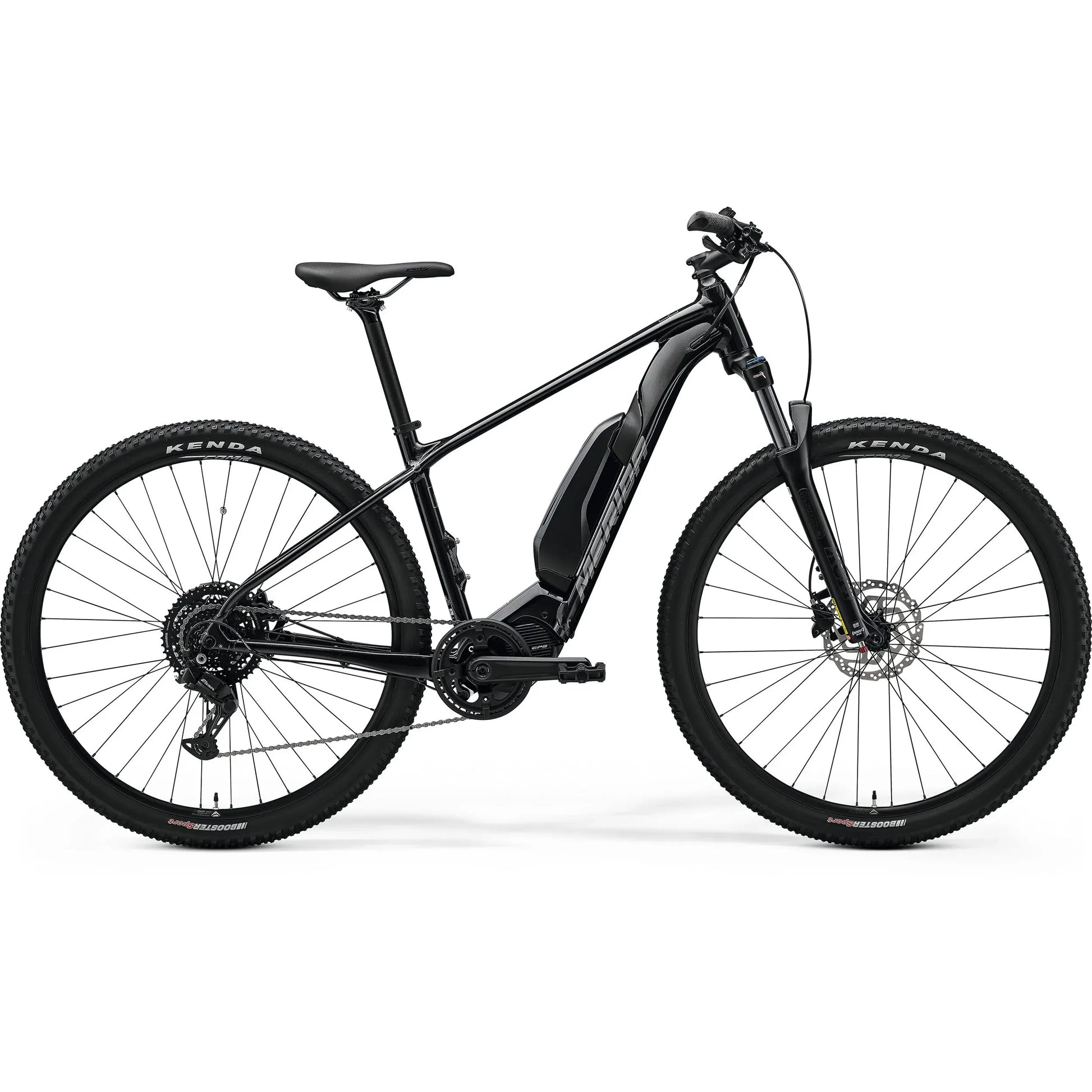

MERIDA eBIG NINE 300 SE 504WH 2026
MERIDA eBIG NINE 300 SE 504WH 2026
Free in-home basic bike fit
Included with every new bike delivered.
Free first service
Complimentary post-purchase tune to keep your bike running perfectly.
Delivery & pickup
FREE BOP & Waikato: Free home delivery + free bike fit
Auckland: $99 home delivery + free bike fit
Rest of North Island: $199 home delivery + free bike fit
Pickup: Free collection from our Papamoa store
✅ In Stock at Papamoa
✅ In Stock at Warehouse
31 in stock
Features
- Lightweight aluminium frame with 29er wheels
- Refined Shimano EP5 drive unit with 60 Nm torque
- Easy-to-remove 504 Wh external battery
- Confidence inspiring mountain bike handling
- Versatile enough for the trail or the commute
- Comfort and control enhancing suspension fork
You don't need to spend a fortune to enjoy the world of e-biking. Our budget-focused eBIG.NINE 300 SE models deliver a quality ride thanks to an aluminium frame and powerful but refined Shimano EP5 drive unit, but with the convenience of an easily removable externally mounted 504 Wh battery. Powerful, all-weather Shimano hydraulic disc brakes are on hand to keep control and the tough, long-lasting CUES drivetrain offers plenty of gearing for off-road adventures or the city streets.
Arguably the most versatile e-bike in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure activity. It's a bike that can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way. The high-quality aluminium frame integrates a choice of 630 or 750 Wh battery sleekly into the downtube, with a more economical frame featuring semi-integrated 504 Wh battery on some models. All feature powerful and smooth Shimano drive units that will power you up any hill. Ready to be equipped with mudguards and even a side stand (or available as the EQ fully equipped version), the eBIG.NINE will help you make the most of any situation.
| FRAME | eBIG.NINE LITE, |
|---|---|
| SHOCK | , |
| FORK | Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max WHS, |
| BRAKE FRONT | Shimano MT-200, 2 piston |
| BRAKE REAR | Shimano MT-200, 2 piston |
| ROTOR FRONT | Shimano RT10, 180 mm |
| ROTOR REAR | Shimano RT10, 180 mm |
| CHAIN | KMC Z8.3 EPT, |
| CRANKSET | Prowheel EB11, 165mm for all sizes |
| CRANK LENGTH | Prowheel Pro38P-S16-49, 38t |
| DERAILLEUR REAR | Shimano Essa, |
| CASSETTE | Shimano HG300, 11-45,8, |
| PEDAL | VP VPE-891, |
| GRIP | MERIDA COMP TK, |
| HANDLEBAR | MERIDA EXPERT, MAT aluminium, 680 WHB, 15 RHB |
| STEM | MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD |
| STEM SIZE | 90 mm all sizes, |
| HEADSET | MERIDA-2341 (for the steerer 1-1/8"~1.5"), |
| HUB FRONT | Shimano QC300, 100x9 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-HM-B, 148x12 WHR, 36 SPH, Centerlock |
| RIM | MERIDA COMP TK, 20 IWR, MAT aluminium, |
| SADDLE | MERIDA Expert TK, 168 width |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB |
| SHIFTER FRONT | , |
| SHIFTER REAR | Shimano ALTUS, |
| TYRE FRONT | Kenda Booster, 29x2.2", wire, |
| TYRE REAR | Kenda Booster, 29x2.2", wire, |
| LIGHT FRONT | CG-119PG-BLACK(1), |
| LIGHT REAR | CG-404RG-BLK, |
| DRIVE UNIT | Shimano EP5, 60Nm |
| BATTERY | Shimano EN604 Battery, 504Wh |
| DISPLAY | Shimano SC-EN500, |
| KICKSTAND | Uses 18mm kickstand |
