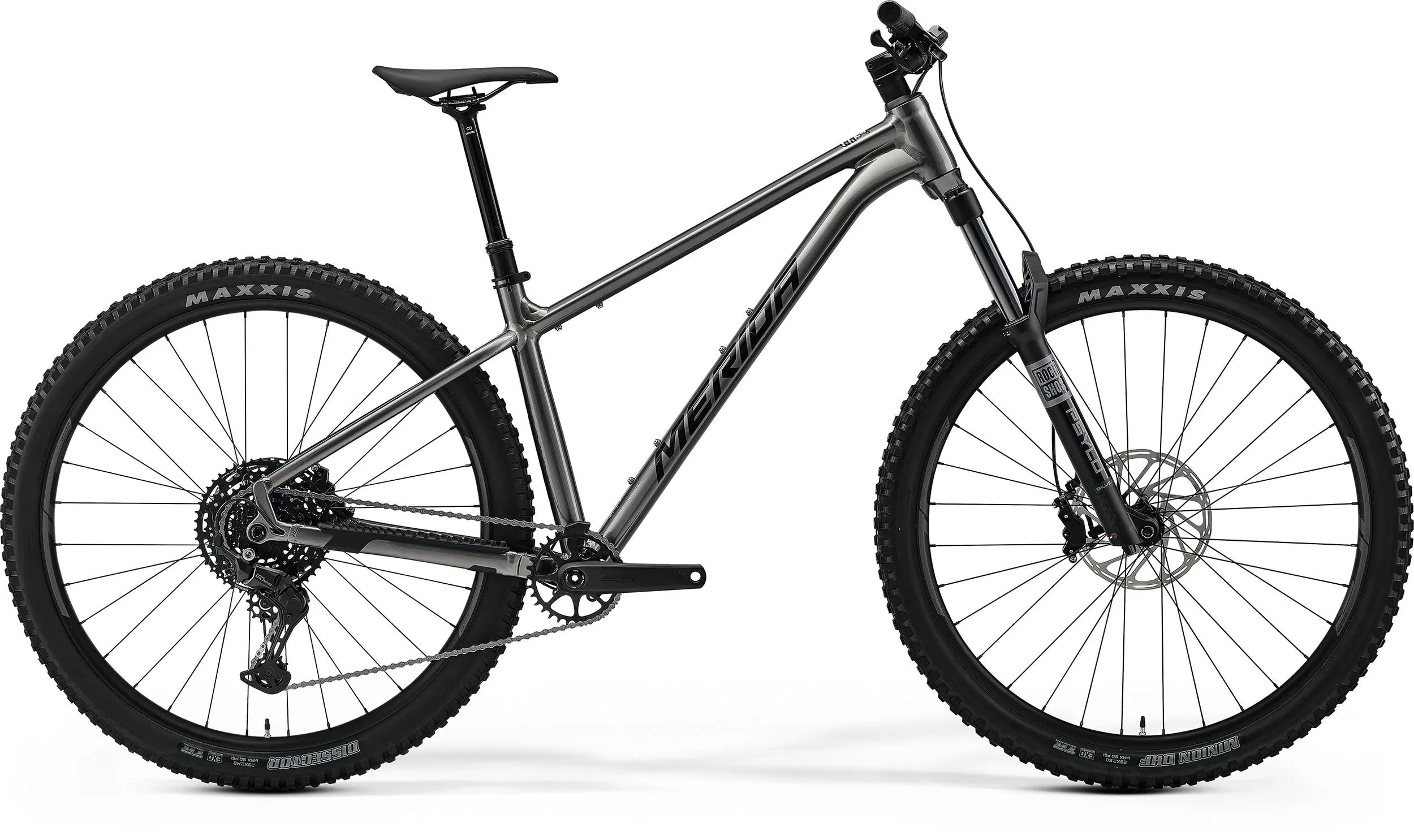

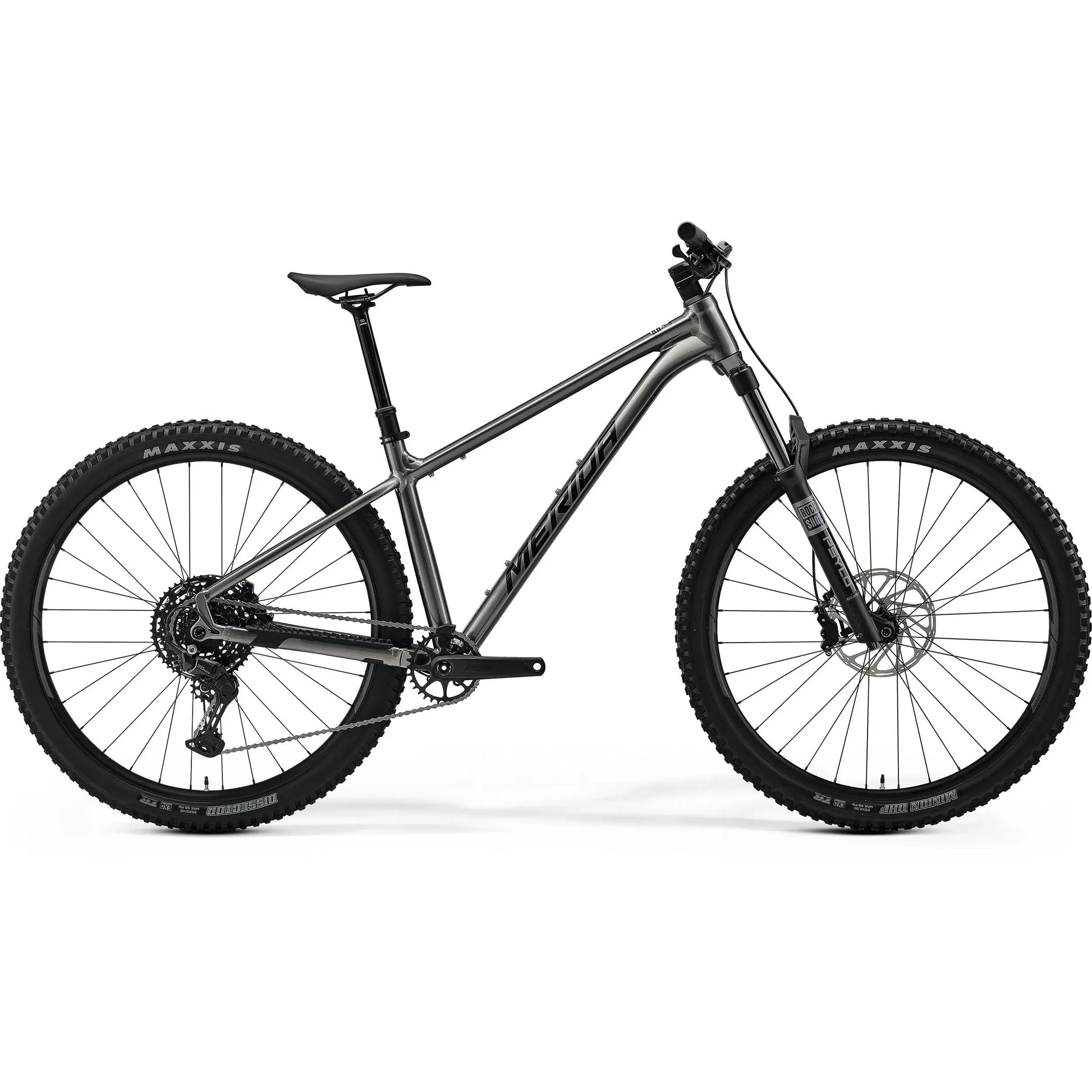

MERIDA BIG TRAIL 500 2026 - GUNMETAL GREY
MERIDA BIG TRAIL 500 2026 - GUNMETAL GREY
❌ Out of Stock at Papamoa
✅ In Stock at Warehouse
Features
- Durable double butted aluminium frame
 - 140 mm RockShox Psylo fork with 35 mm chassis for incredible stiffness
 - Progressive trail bike geometry with long reach, slack head angle and steep seat angle
 - 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
 - Extremely low standover height paired with long travel dropper posts
 - Powerful 4-piston SRAM DB4 brakes

A passion for trail fun, all wrapped up in a no-nonsense package. The BIG.TRAIL 500 offers handling that at inspires confidence and pushes you to go that little bit further in your search for true trail connection. Our top-quality aluminium frame is paired with tough, trail-ready 29er tyres, a 140 mm travel fork and a long travel dropper post to add confidence and capability to any ride.
The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.
| FRAME | BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR |
|---|---|
| FORK | Rock Shox Psylo Silver RC; Air; 140 STR; platform |
| BRAKE FRONT | Sram DB4; 4 piston |
| BRAKE REAR | Sram DB4; 4 piston |
| ROTOR FRONT | Sram CenterLine; 200mm |
| ROTOR REAR | Sram CenterLine; 180mm |
| CHAIN | KMC xGlide |
| CHAINWHEEL | MERIDA Expert TR II; 32 ATC |
| CRANKSET | 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG |
| DERAILLEUR REAR | Shimano CUES U6000; GS |
| CASSETTE | Shimano LG300; 11-48 ATC; 10 GER |
| GRIP | MERIDA COMP TR |
| HANDLEBAR | MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB |
| STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| STEM SIZE | 40 mm |
| HEAD SET | Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing |
| HUB FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE REAR | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT |
| SHIFTER FRONT | Shimano SL-MT500-L |
| SHIFTER REAR | Shimano CUES U6000 |
| TYRE FRONT | Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual |
| TYRE REAR | Maxxis Dissector; 29x2.4"; fold; TR EXO Dual |
