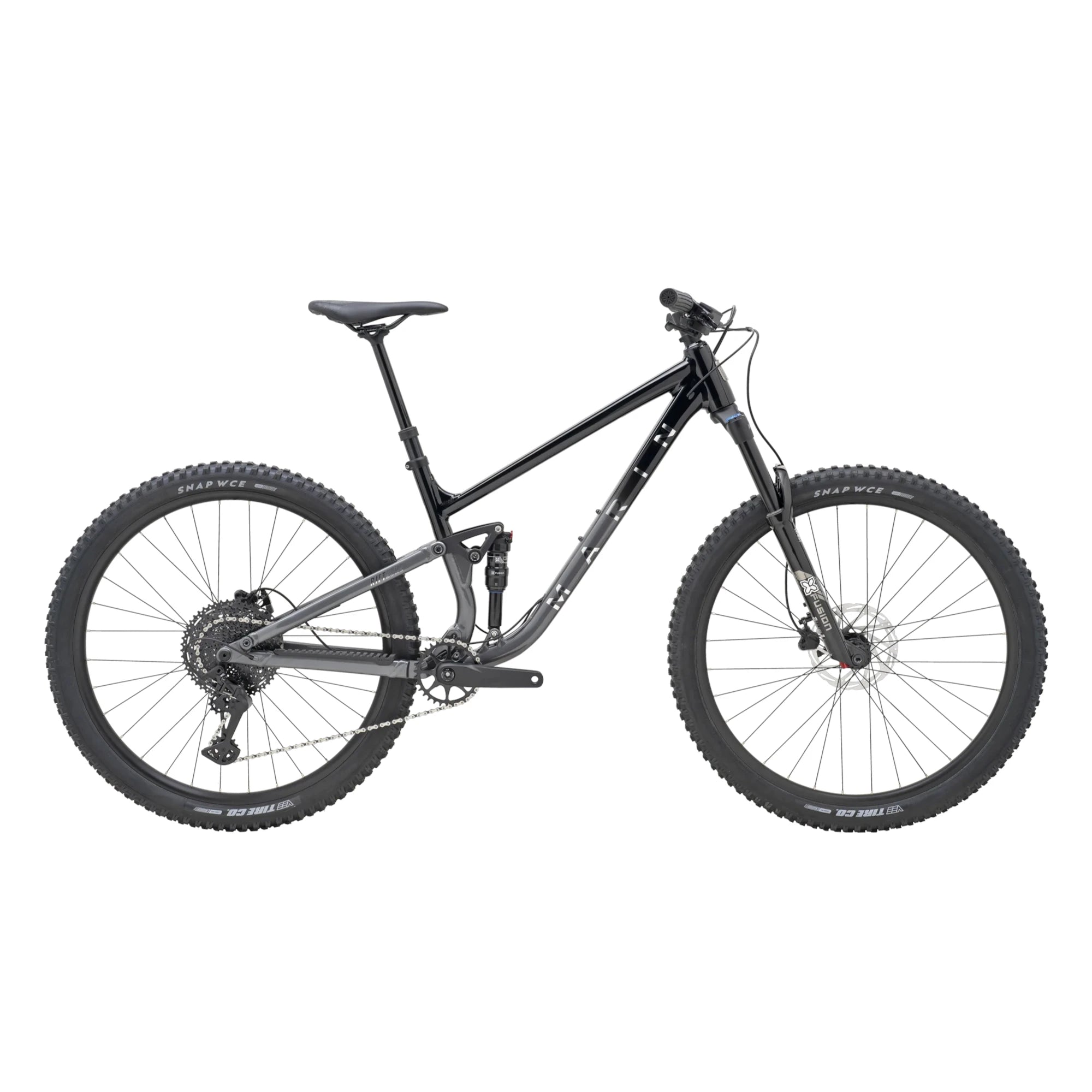

MARIN RIFT ZONE 1 TRAIL BIKE 2026 - BLACK/GREY

MARIN RIFT ZONE 1 TRAIL BIKE 2026 - BLACK/GREY

CycleWorx is rated 4.9 on Google 76 reviews
$2,999.00
$2,999.00
Sale Sold out
Shipping calculated at checkout.
Size
INTEREST FREE OPTIONS More Payment Options
Out of stock  ·  Papamoa store
Low stock  ·  Only 1 remaining from supplier
View full details
Frame: Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Fork: X-Fusion Slide (29") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Shifters: Tektro, SL M5100-11R, 11-Speed
Derailleur Rear: Tektro RD-5100-L, Long Cage, Clutch
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Bottom Bracket: External Sealed Cartridge Bearing
Cassette: Tektro CS-M5100-11, 11-Speed, 11-50T
Chain: KMC X-11 Silver and Black
Brakes: F: Tektro HD-M280 Hydraulic, 180mm Rotor | R: Tektro HD-M280 Hydraulic, 180mm Rotor
Hubs: F: Joytech D142TSE-B5, 141QR, 6-Bolt | R: Joytech D041-B15, 110x15mm, 6-Bolt
Rims: Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tyres: Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Stem: Marin 3D Forged Alloy, 35mm
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back
Grips: Marin MTN, Closed End
Seat Post: X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
Saddle: Marin Speed Concept
Specifications +
Specifications subject to change without prior notice.
FRAME Series 3 6061 Aluminum, 27.5 or 29" Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION X-Fusion Slide (29) or Sweep(27.5) Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
REAR SUSPENSION X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
RIM Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
HUB REAR Joytech D142TSE-B5, 141QR, 6-Bolt
HUB FRONT Joytech D041-B15, 110x15mm, 6-Bolt
SPOKES 14g Black Stainless Steel
TIRES Vee Tire Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible
DERAILLEUR REAR Shimano CUES 11-Speed
DERAILLEUR FRONT -
SHIFT LEVER Shimano CUES 11-Speed
CRANKSET Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing
BOTTOM BRACKET External Sealed Cartridge Bearing
CHAIN KMC LG
CASSETTE Shimano CUES, 11-Speed, CS-LG400-11, 11-50T
BRAKES FRONT Tektro HD-M280 Hydraulic Disc, 180mm Rotor
BRAKES REAR Tektro HD-M280 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS Tektro HD-M280
HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back
STEM Marin 3D Forged Alloy, 35mm
GRIPS Marin MTN, Closed End
HEADSET FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
SADDLE Marin Speed Concept
PEDALS -
EXTRAS Closed 9-12 Thru-Axle Bolt On System
