The Marin DSX 2 is built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Shimano hydraulic brakes and plenty of reliable Marin components.
1
/
of
6

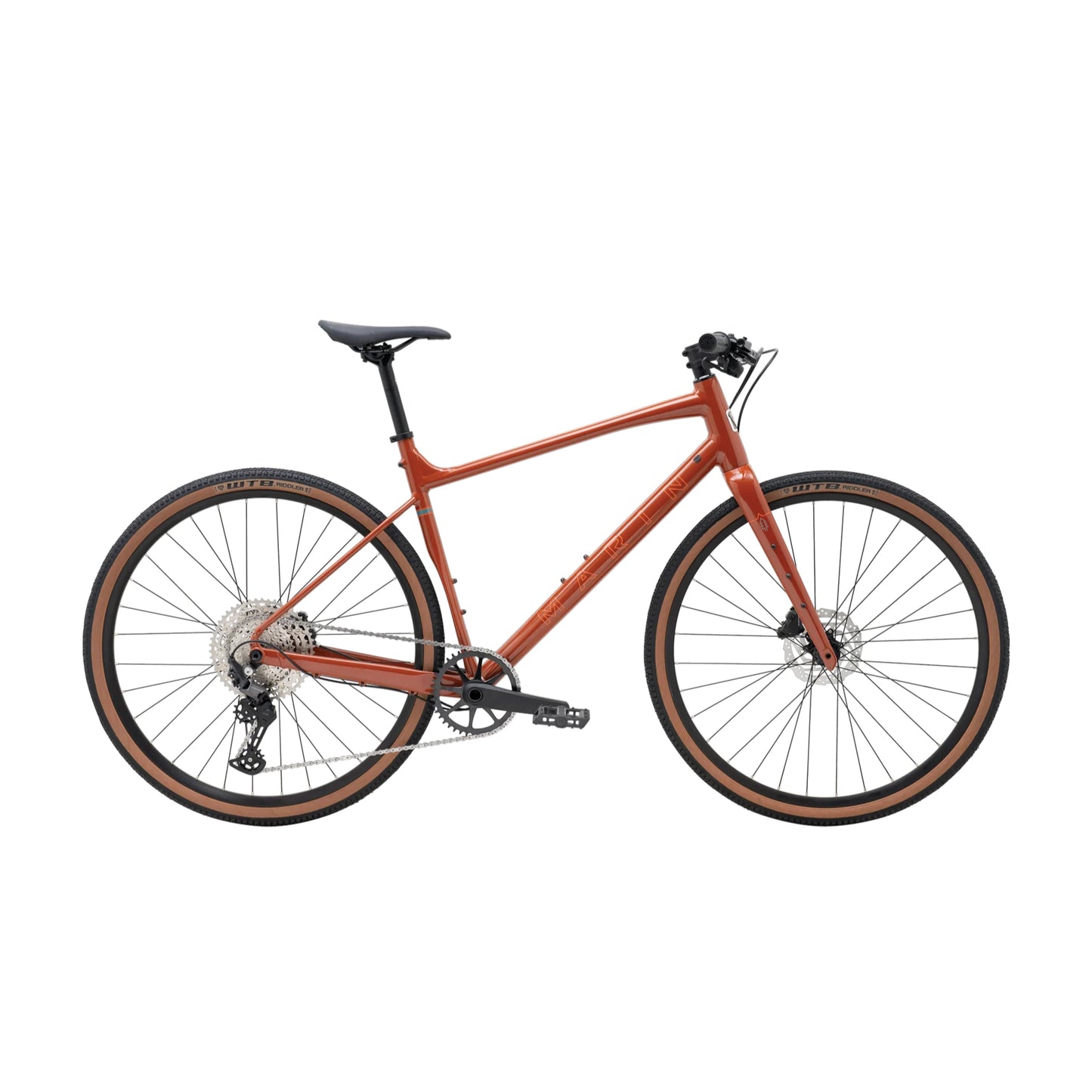

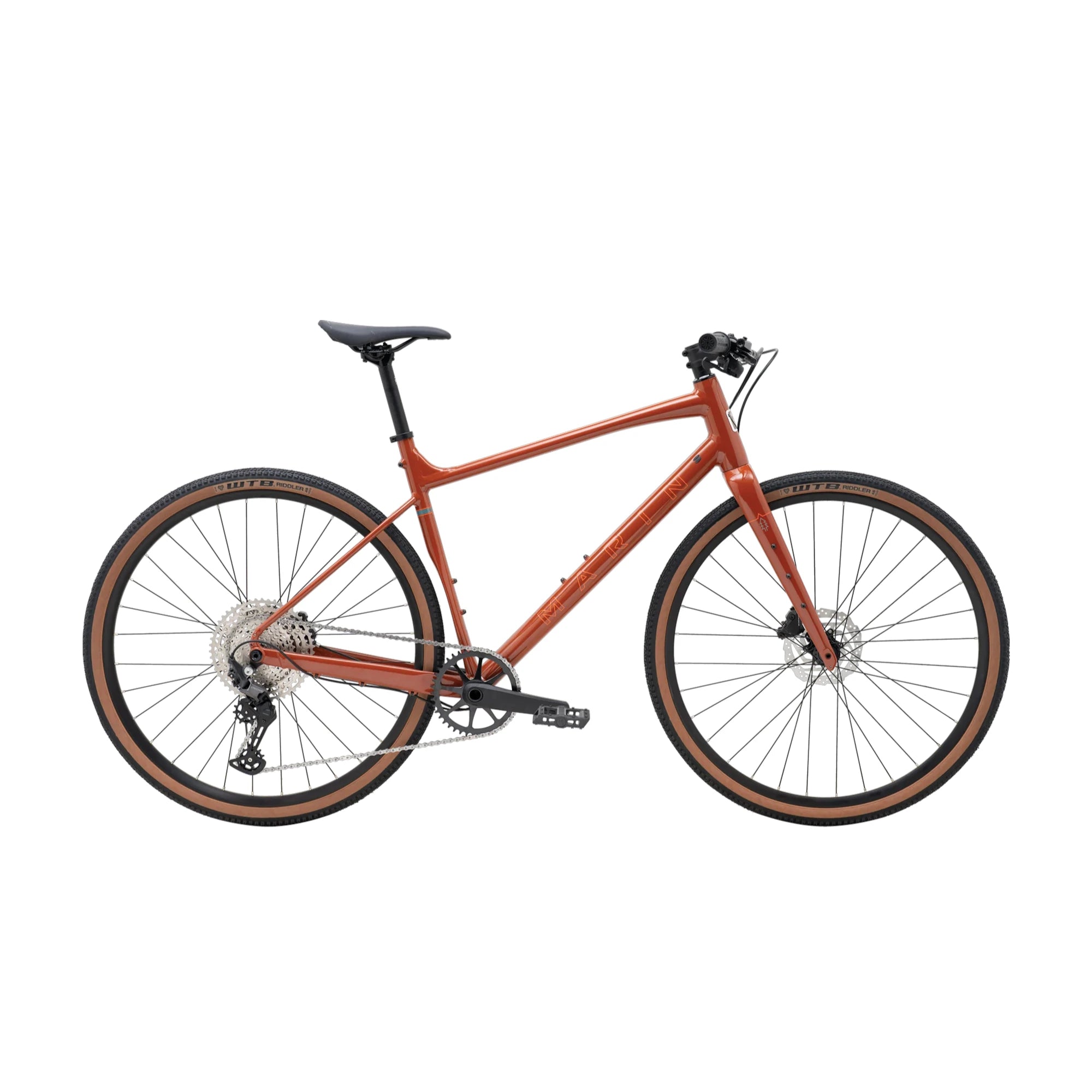

MARIN DSX 2 FLATBAR GRAVEL BIKE 2026 - DARK CLAY
MARIN DSX 2 FLATBAR GRAVEL BIKE 2026 - DARK CLAY
Regular price
$1,999
Regular price
Sale price
$1,999
Shipping calculated at checkout.
Quantity
❌ Out of Stock – CONTACT US for ETA
Share
Features
- Lightweight alloy frame for easy handling
- Carbon fork for improved shock absorption
- Hydraulic disc brakes for reliable stopping power
- 1 x 12 Shimano drivetrain
- 700x45c tyres for comfort
▶
Specifications
Please note - specifications subject to change without prior notice.
| FRAME | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| FORK | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| RIM | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| HUB REAR | Forged Aluminum, 142x12mm, Disc Specific, 32H |
| HUB FRONT | Forged Aluminum, 100x12mm, Disc Specific, 32H |
| SPOKES NIPPLES | 14g Black Stainless Steel |
| TIRES | WTB Riddler, 700Cx45mm |

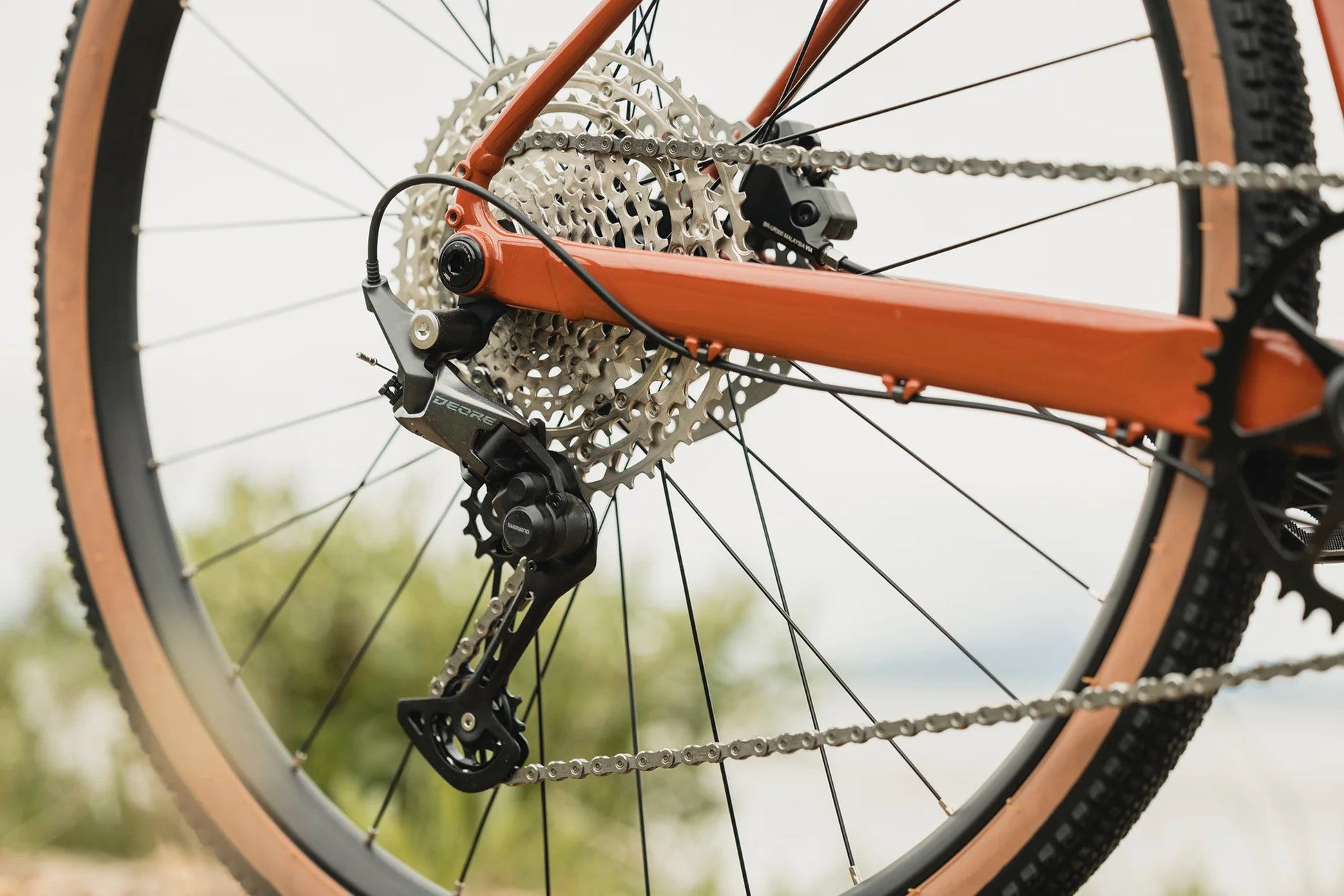

| DERAILLEUR REAR | Shimano Deore, RDM6100, 12-Speed |
| DERAILLEUR FRONT | - |
| SHIFT LEVER | Shimano Deore, SLM6100, 12-Speed |
| CRANKSET | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| BOTTOM BRACKET | Sealed Outboard Bearing |
| CHAIN | KMC X12 |
| CASSETTE | Shimano Deore, CS-M6100, 12-Speed, 10-51T |
| BRAKES FRONT | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| BRAKES REAR | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| BRAKE LEVERS | Shimano Hydraulic |
| HANDLEBAR | Marin MiniRiser |
| STEM | Marin 3D Forged Alloy |
| GRIPS | Marin MTB |
| HEADSET | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| SEATPOST | Marin Alloy |
| SADDLE | Marin DSX |
| PEDALS | Nylon Platform |
| EXTRAS | Bolt-On Thru-Axles F and R |
