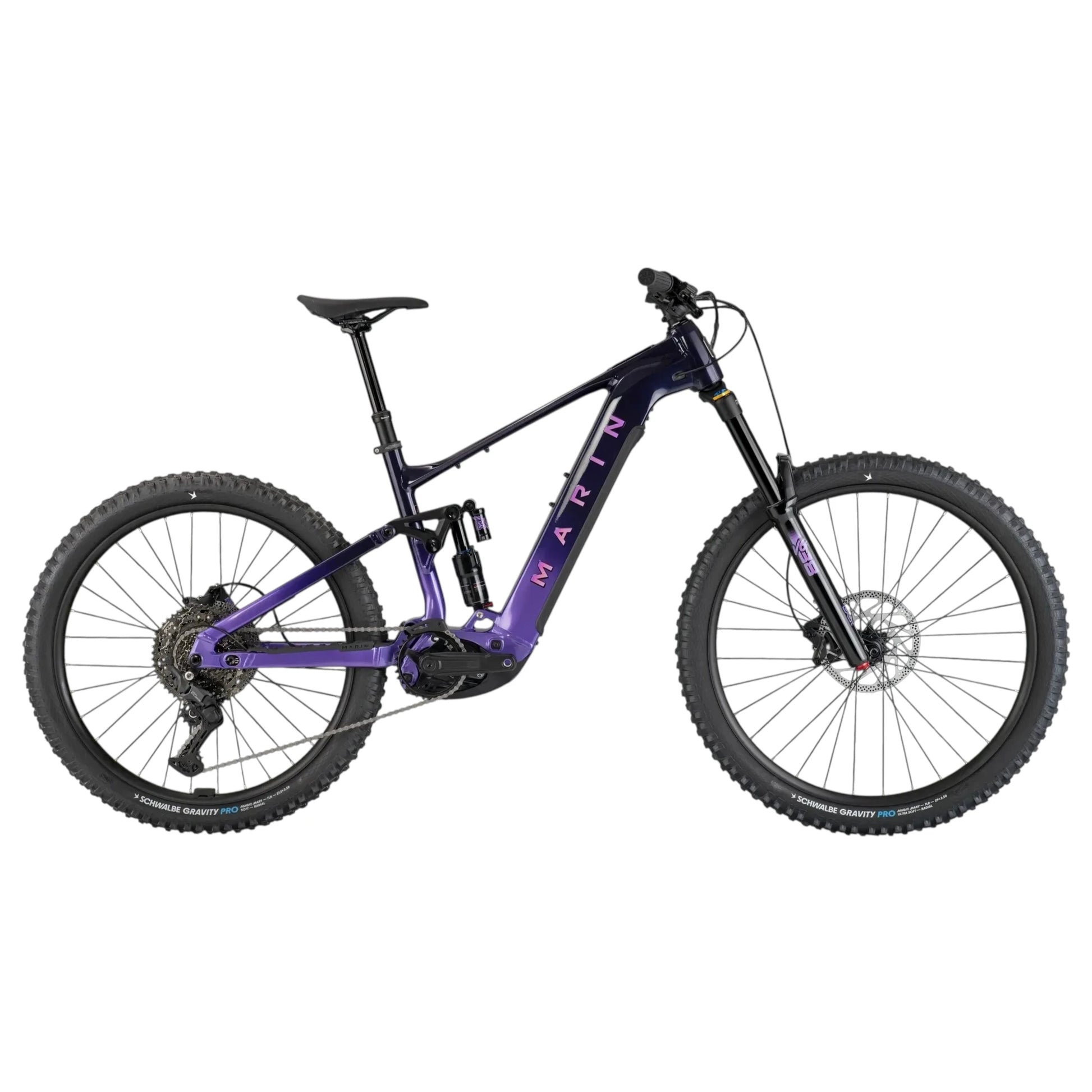

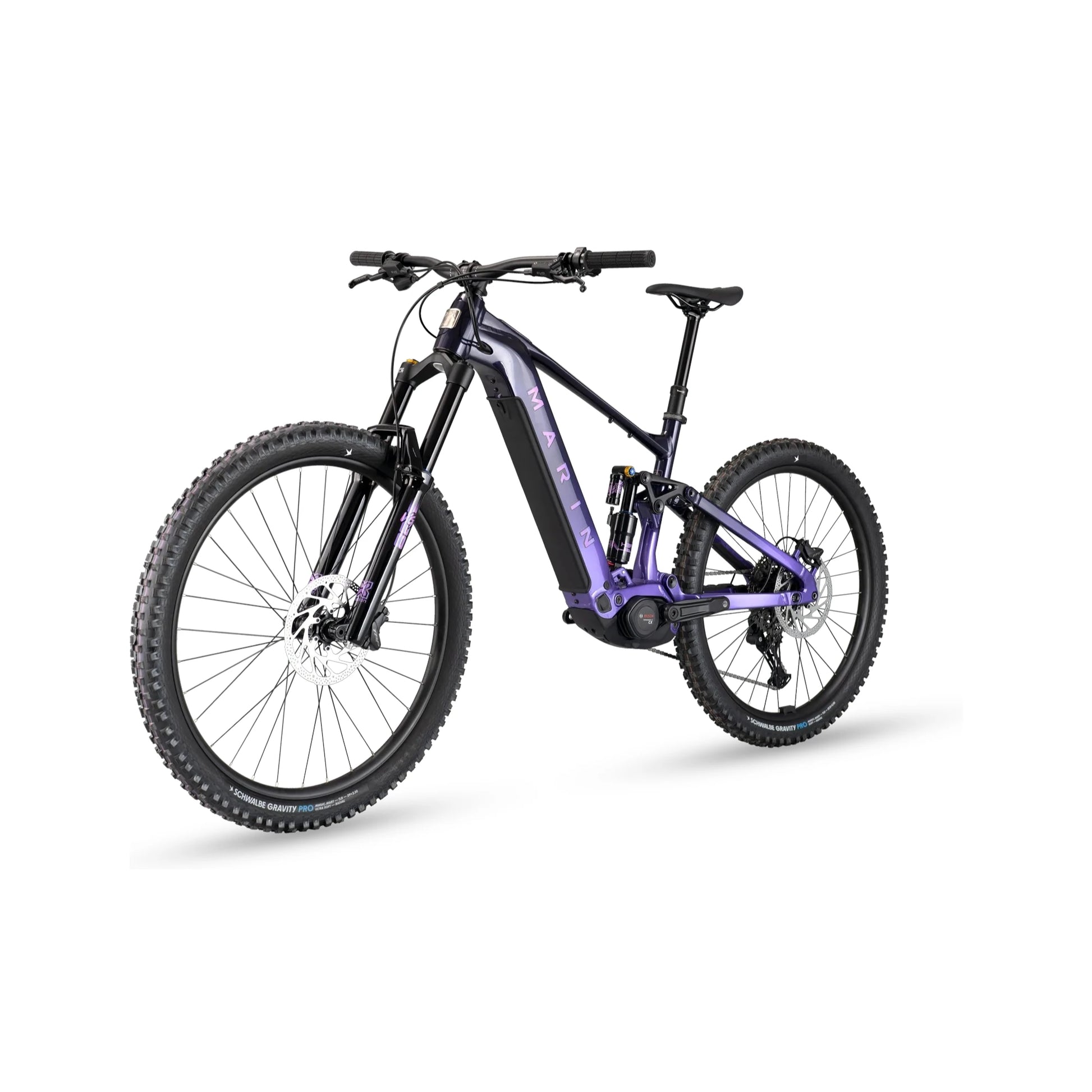

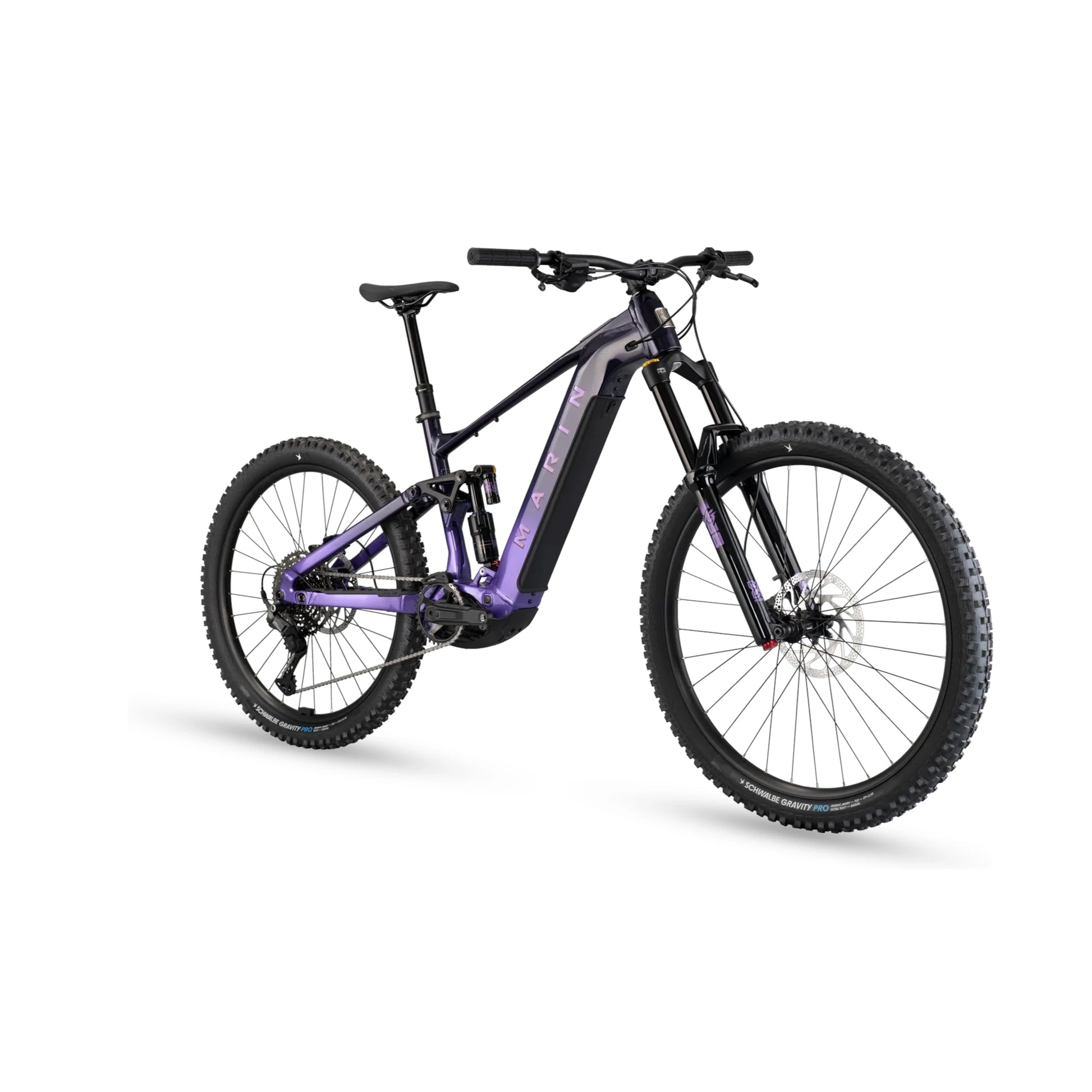

Marin Alpine Trail E1 2026 Electric Mountain Bike - Purple
Marin Alpine Trail E1 2026 Electric Mountain Bike - Purple
Regular price
$9,999.00
Regular price
$9,999.00
Sale price
$9,999.00
Shipping calculated at checkout.
Quantity
Out of stock · Papamoa store
Low stock · Only 2 remaining from supplier
- Ask an Expert Free advice from our team
- Fast Shipping See delivery options
- Secure Checkout SSL encrypted & safe
Share
FEATURES
- Bosch Performance Line CX motor (100Nm, 750W) with PT800 horizontal battery and Bosch Kiox 400 display
- Series 4 Alloy frame with adjustable headset and chainstay length/height for tunable geometry
- 160mm MultiTrac LT suspension with X-Fusion Vengeance fork (170mm travel) and X-Fusion H3A Air shock
- Shimano CUES 10-speed drivetrain
- Available in sizes Small through Extra Large
The Alpine Trail E1 is Marin's do-it-all enduro eMTB, built for bigger climbs and longer descents without adding unnecessary weight or complexity. The Bosch Performance Line CX motor and 750Wh-class battery mean there's power in reserve for another lap, while the adjustable geometry lets you tune the ride to the trail.
It's built to shrug off rough terrain and hold its line under real riding pressure, with a suspension platform that keeps the front and rear wheels working together rather than fighting each other.
Specifications
+
Specifications subject to change without prior notice.
| FRAME | All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| FRONT SUSPENSION | X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle |
| REAR SUSPENSION | X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune |
| RIM | New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| HUB REAR | Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body |
| HUB FRONT | Shimano HF-MT500B, 110x15mm, Centerlock |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5" |
| DERAILLEUR REAR | Shimano CUES RD-U6000 GS, 10-Speed |
| DERAILLEUR FRONT | - |
| SHIFT LEVER | Shimano CUES SL-U6000-10R, 10-Speed |
| CRANKSET | Marin Forged eMTB Cranks, 150mm |
| MOTOR | Bosch Performance Line CX, 750W, 100Nm |
| CHAIN | Shimano LG500 |
| CASSETTE | Shimano CS-LG300-10, 11-48T |
| BRAKES FRONT | TRP DHR EVO Comp, 200mm Rotors |
| BRAKES REAR | TRP DHR EVO Comp, 200mm Rotors |
| BRAKE LEVERS | TRP DHR EVO Comp |
| HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back |
| STEM | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin Grizzly Lock-On |
| HEADSET | FSA Custom Headset, Adjustable HTA Design |
| SEATPOST | TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm |
| SADDLE | Marin Short Nose |
| PEDALS | - |
| BATTERY | PT800 Horizontal |

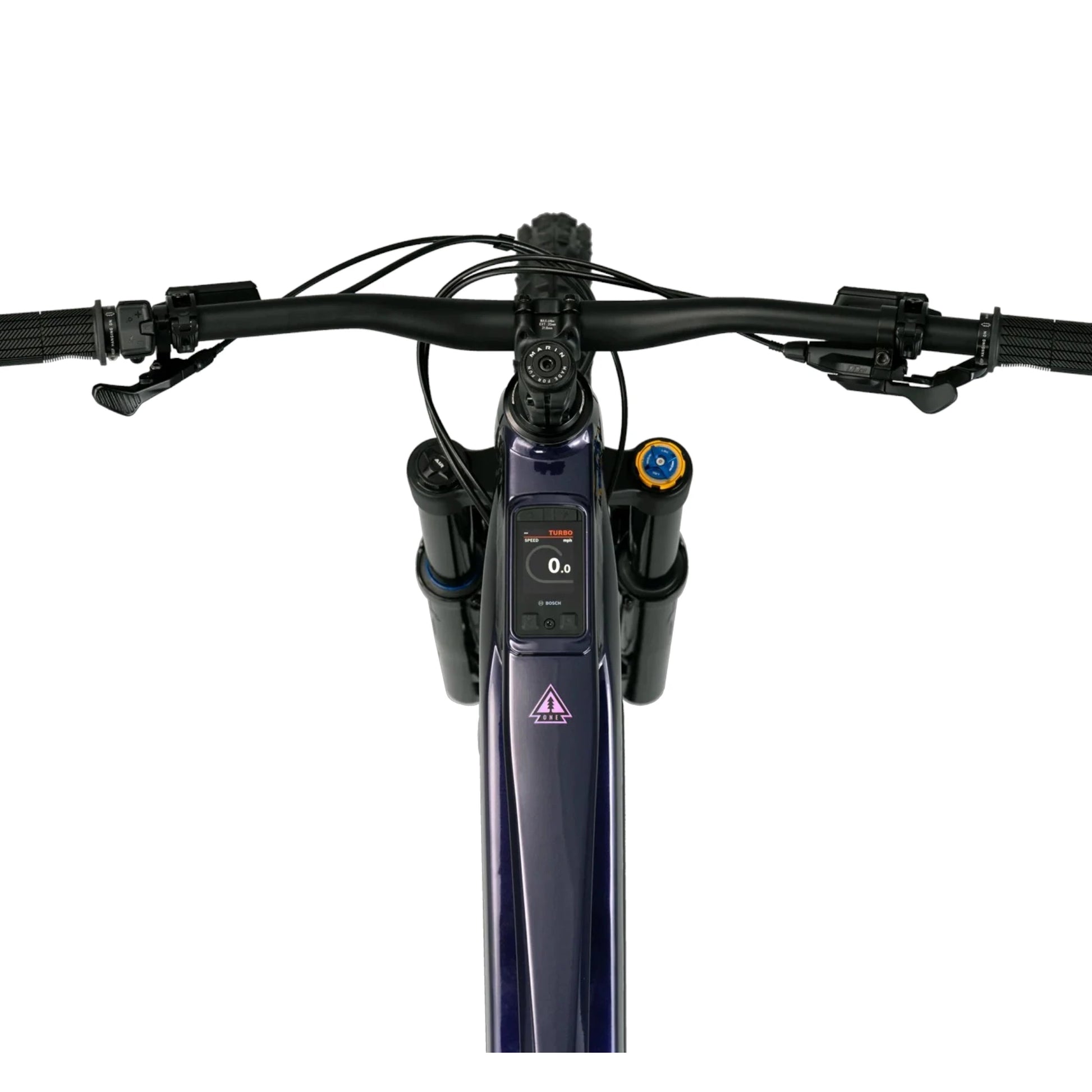

| DISPLAY | Bosch Kiox 400 Top Tube Display |
| SWITCH | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| EXTRAS | e*thirteen e*Spec Chainguide |
| EXTRAS | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
