Replacement parts for Tange/IRD sliding dropouts, featured on numerous Soma frames.

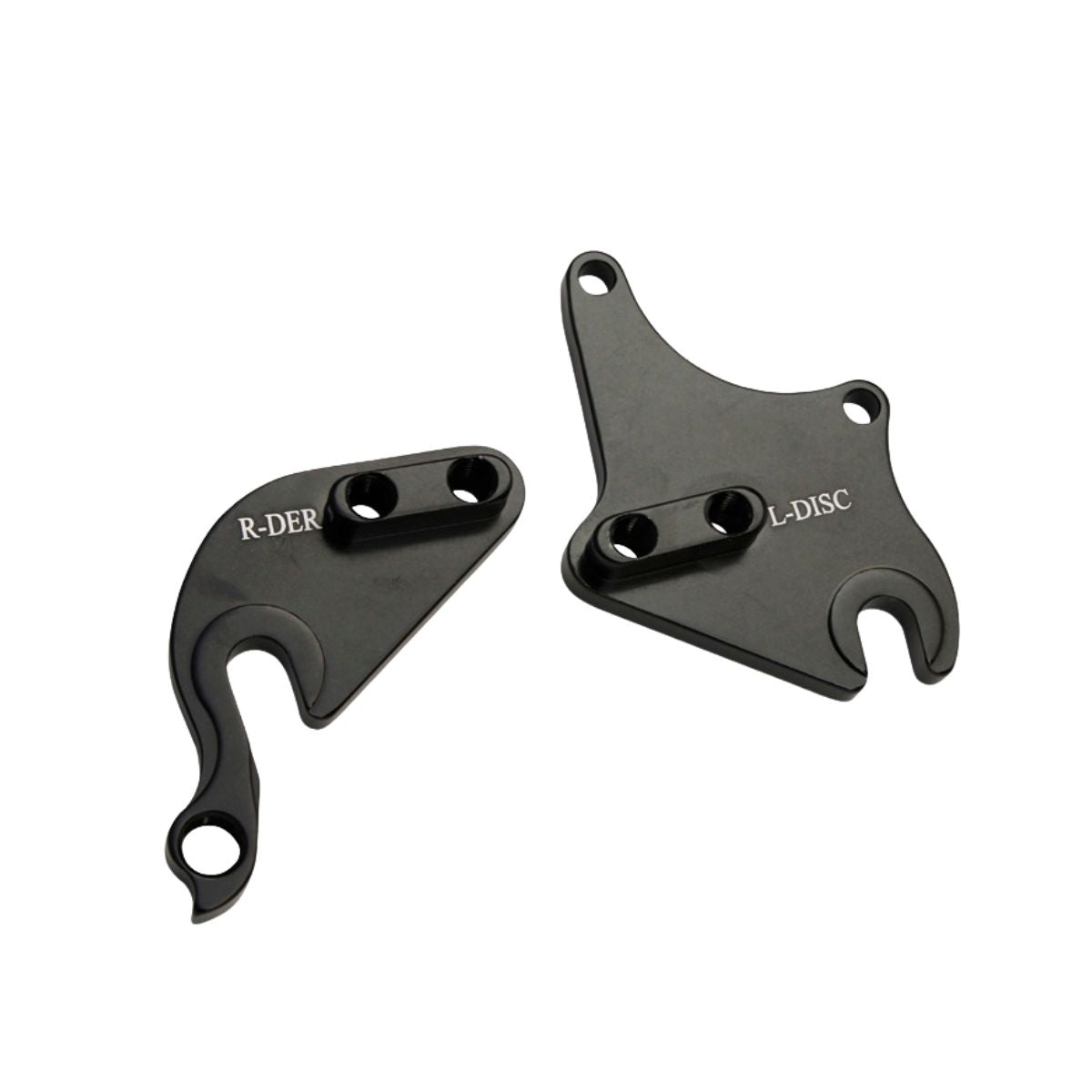

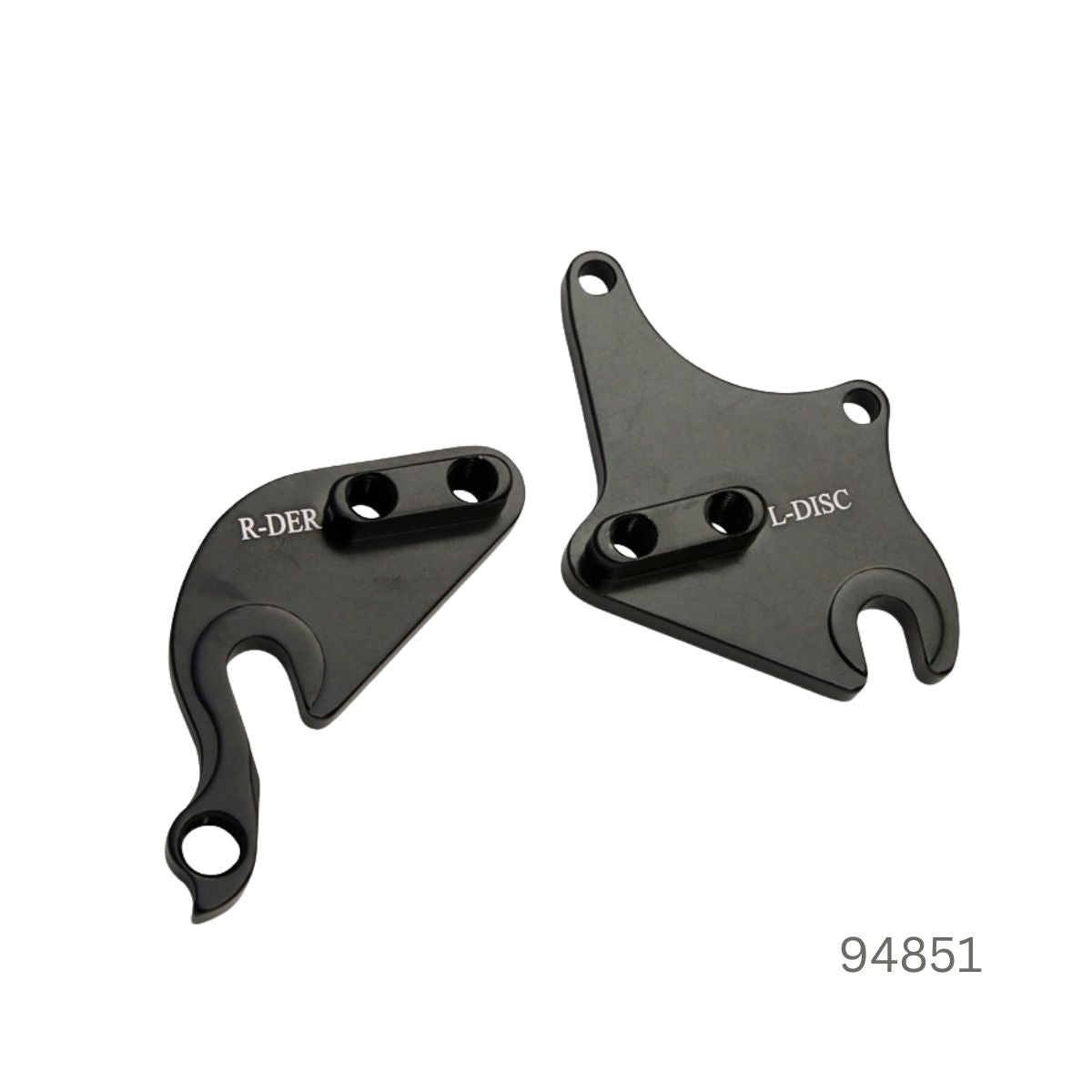

SLIDING DROPOUT SET - 135MM QR - 94851
- The aluminum sliding pieces of the Tange/IRD Sliding Dropout. Also fits IRD Broski Dropouts
- Left side has an IS disc tab. Right side has a derailleur hanger.
- For QR hubs.
- Bolts not included.

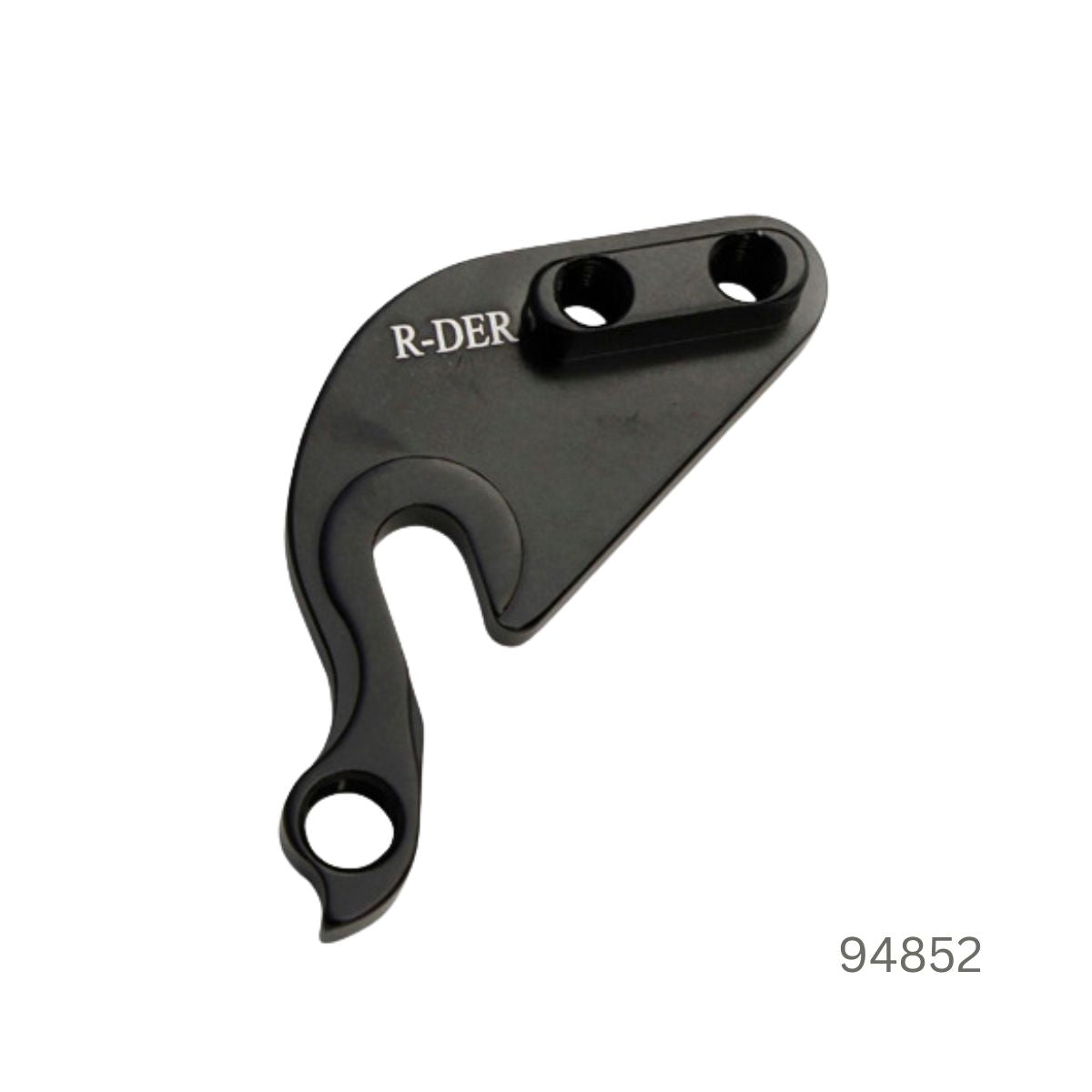

SLIDING DROPOUT RIGHT ONLY - 135MM QR - 94852
- The derailleur hanger/right dropout portion of the Tange/IRD Sliding Dropout set and also the IRD Broski Sliding Dropout set.
- Order this part is you want a spare/replacement hanger for your compatible Soma frame running QR hubs
- CNC’d aluminum.
- Bolts not included

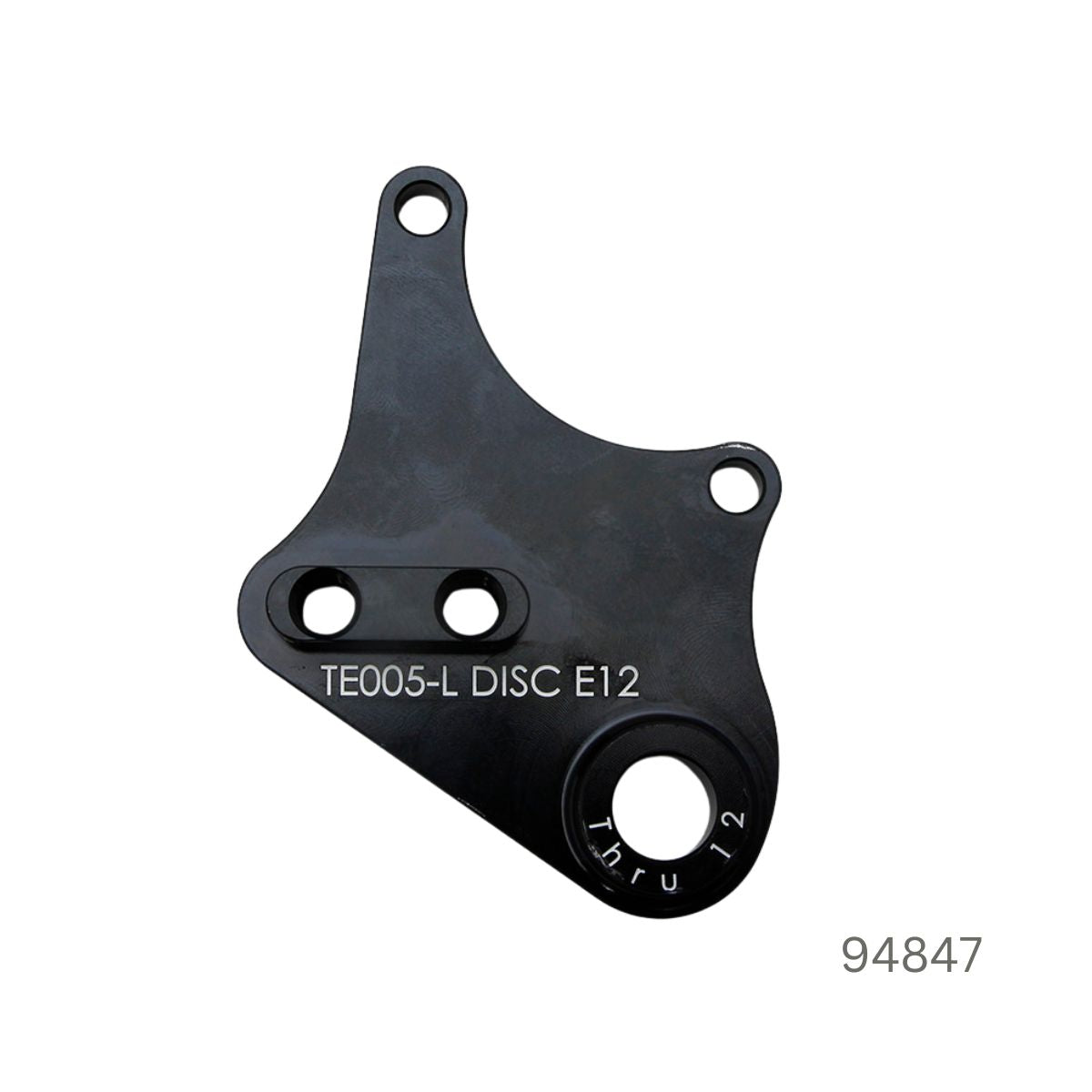

SLIDING DROPOUT LEFT ONLY - 142MM THRU - 94847
- Left side dropout insert for Tange/IRD sliding dropouts and IRD Broski sliding dropouts.
- For QR hubs and International Standard disc brakes.
- Bolts not included.
SLIDING DROPOUT RIGHT ONLY - 142MM THRU - 94849
- Aluminum sliding insert for IRD Broski dropouts and older IRD/Tange Sliding inserts.
- Right side.
- Fits Shimano E-Thru style 142 x 12mm with 1.5mm thread pitch
- Purchase with matching left side (94847) to upgrade older Wolverines, 2023 Jawbone B-Type, older Juice, Riff/B-Side frames to 12x142mm thru-axle dropouts

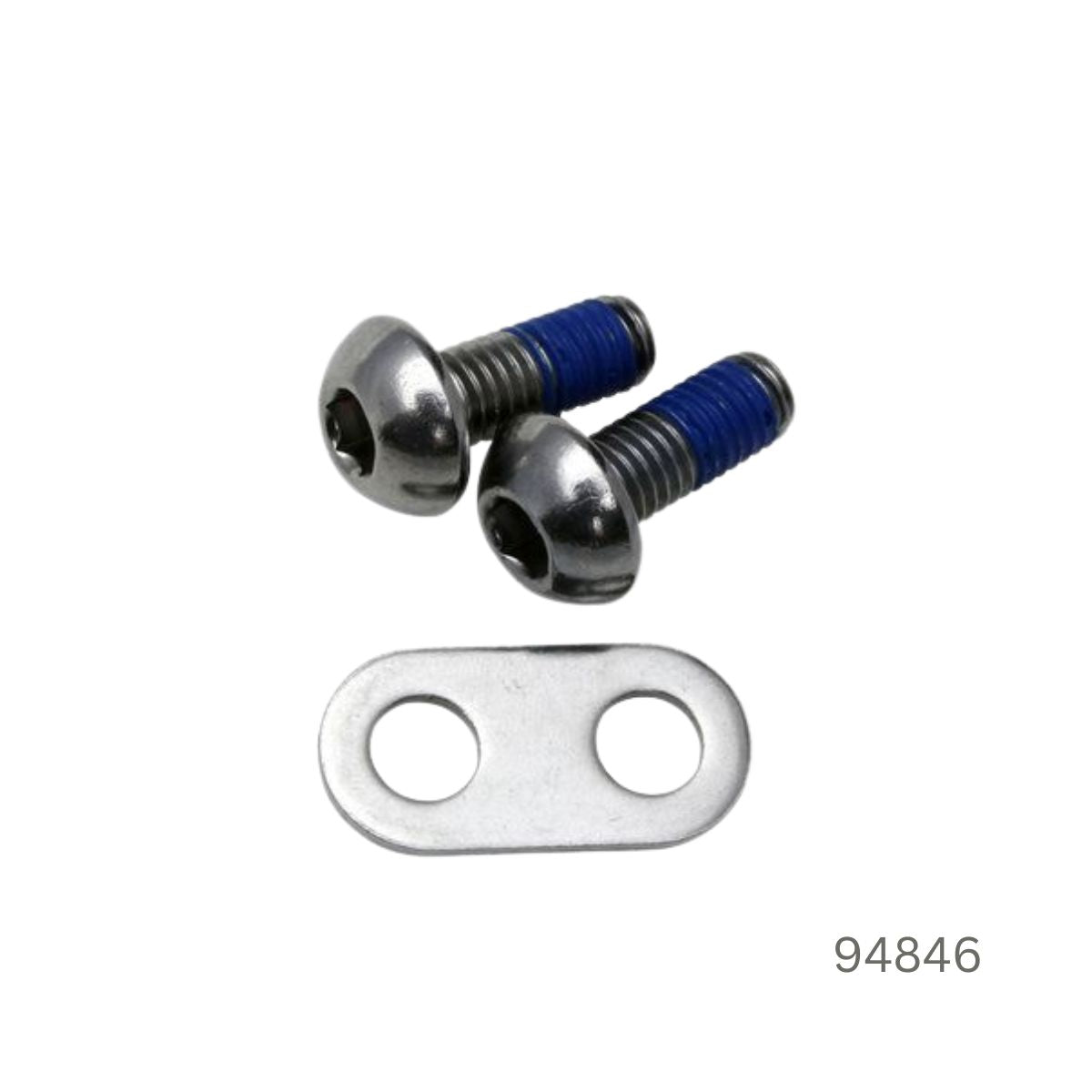

SLIDING DROPOUT BOLT + WASHER SET - 94846
- Bolts and double-hole flat washer for IRD Broski dropouts.
- M8 x 1.25 x 18mm.
- Includes 2 x bolts and 1 x washer.
