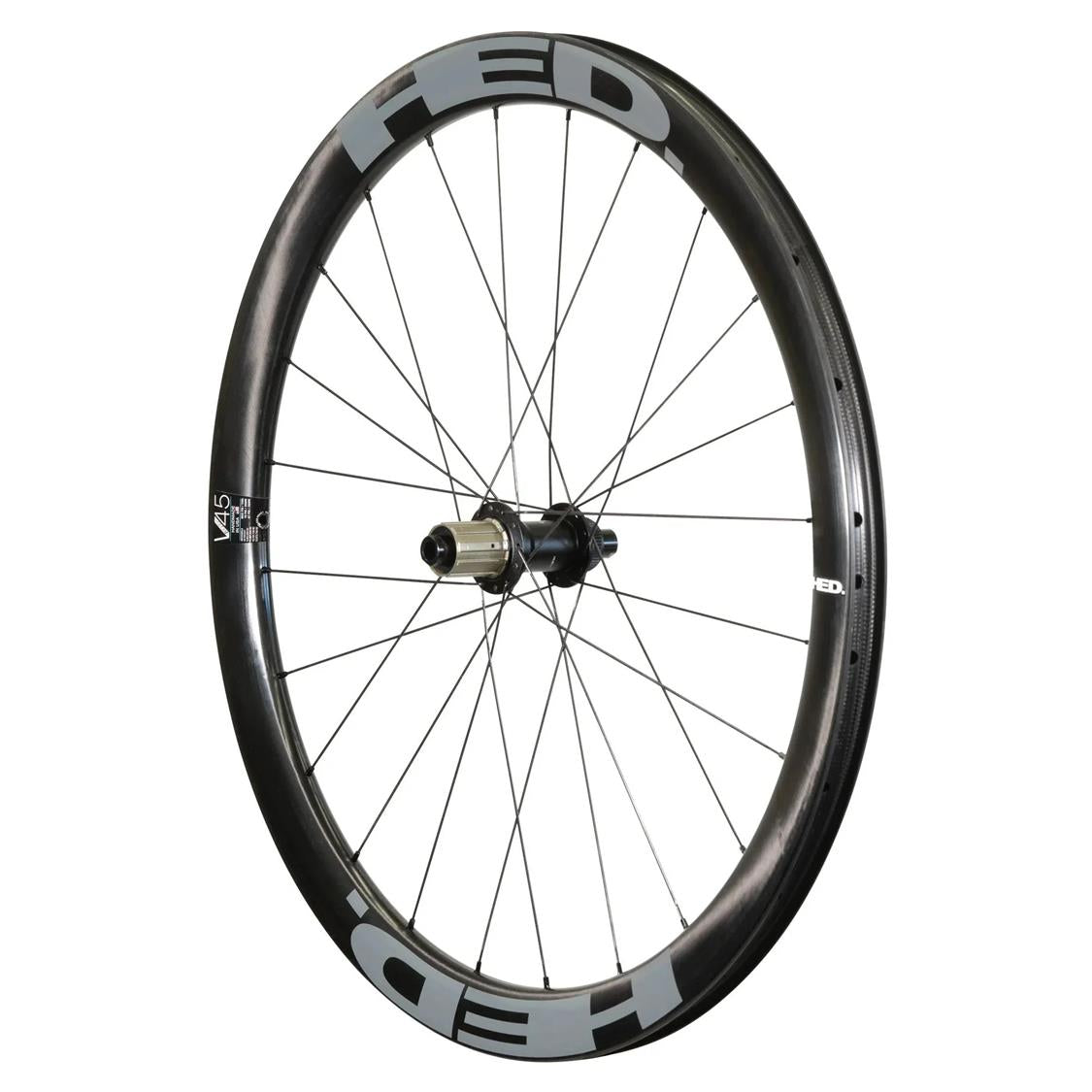

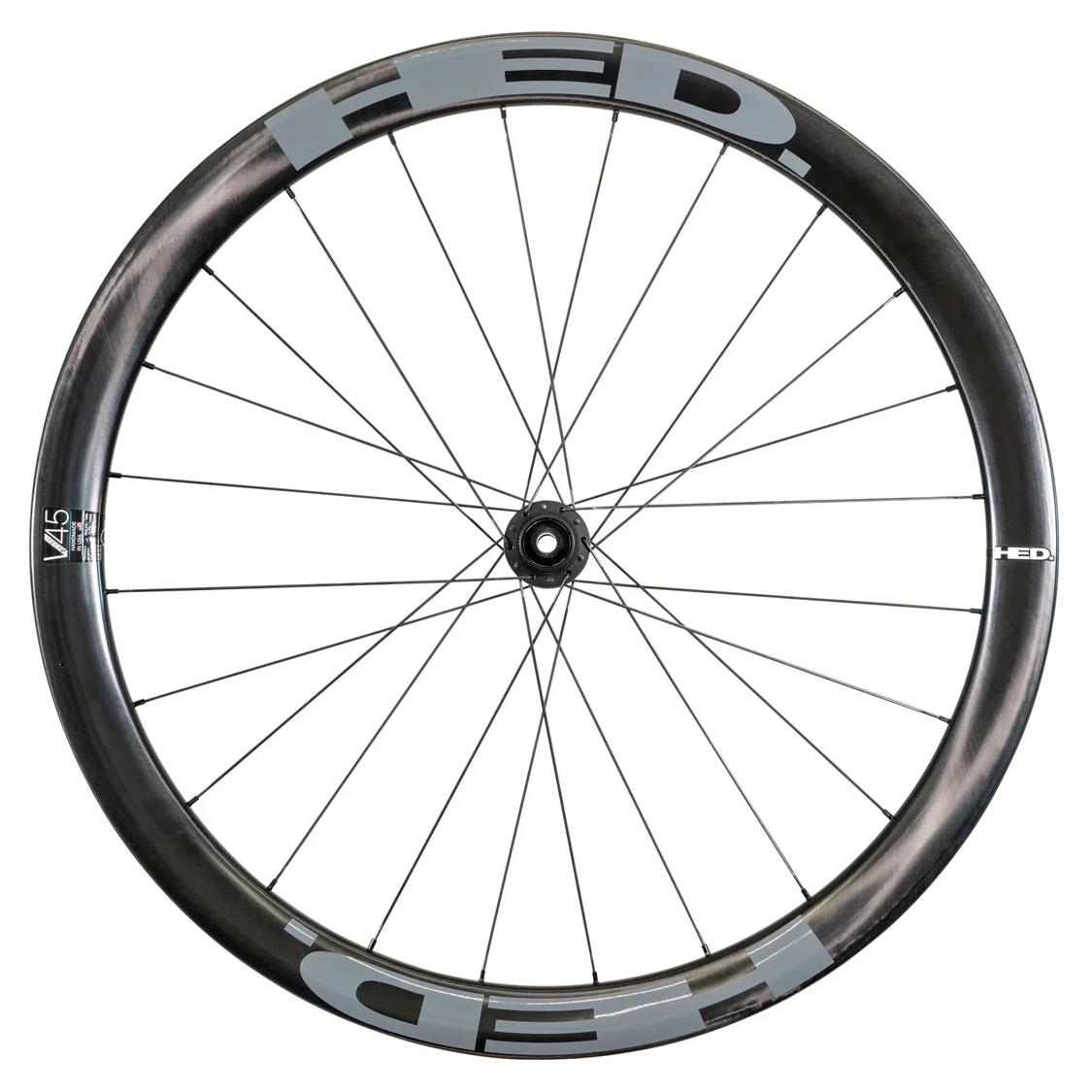

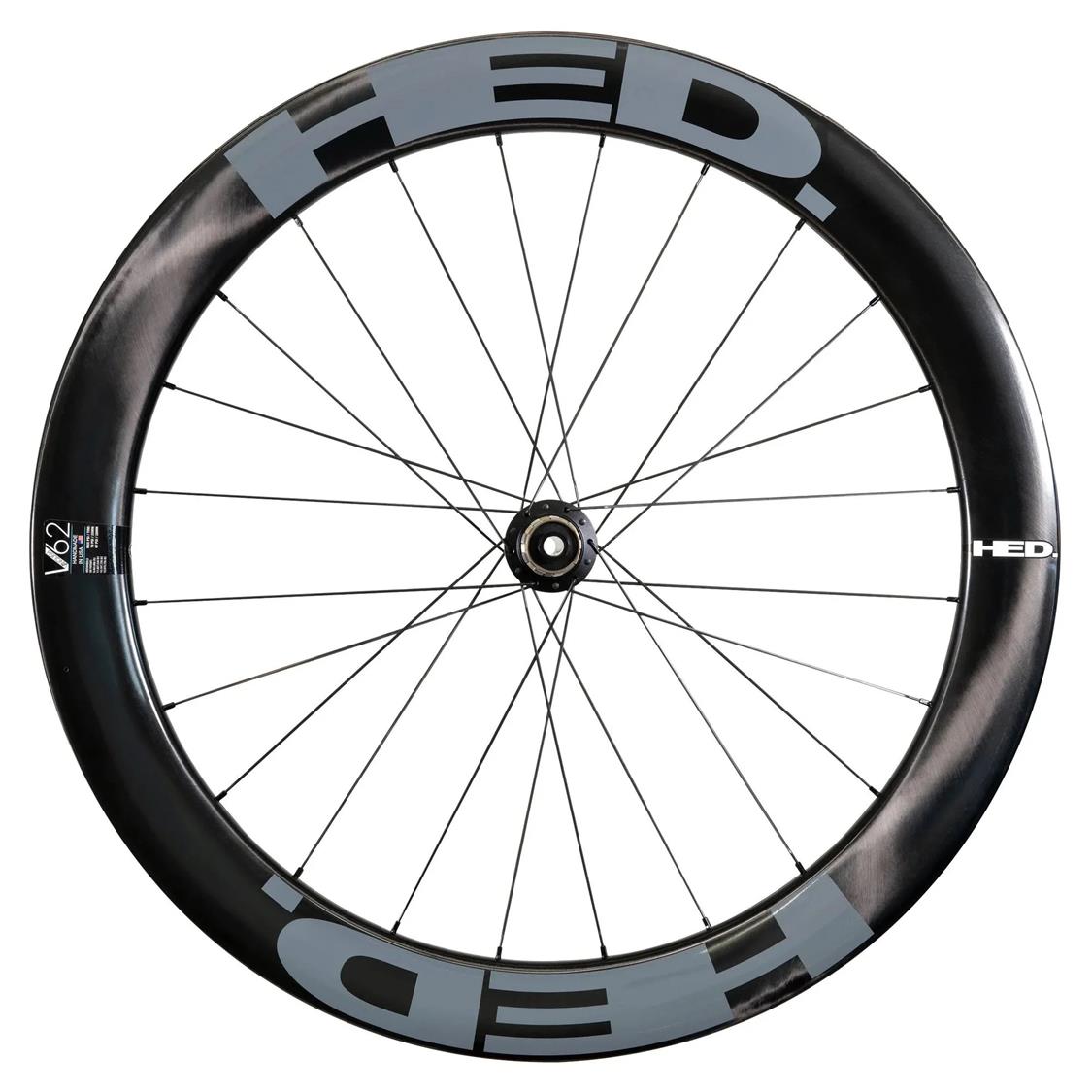

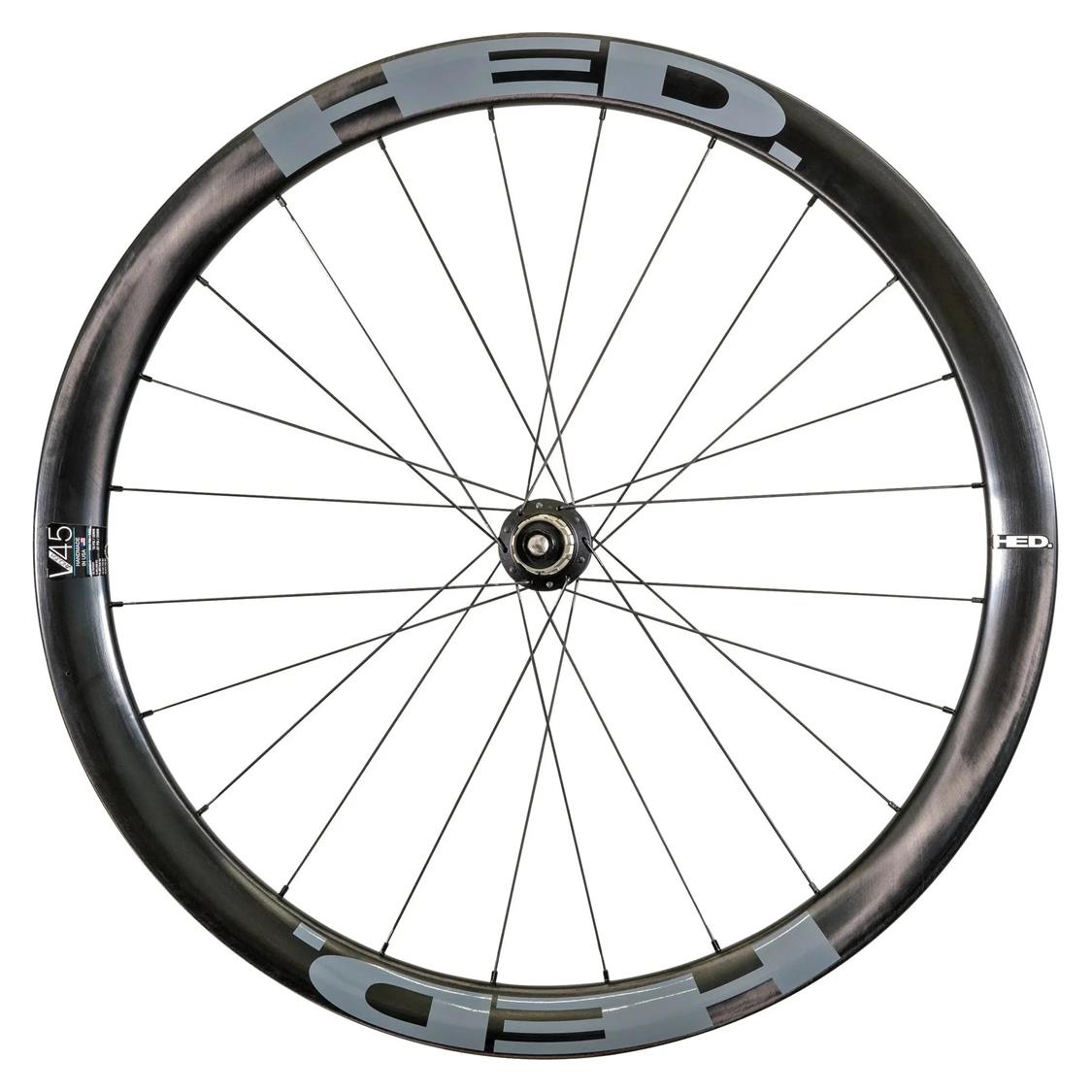

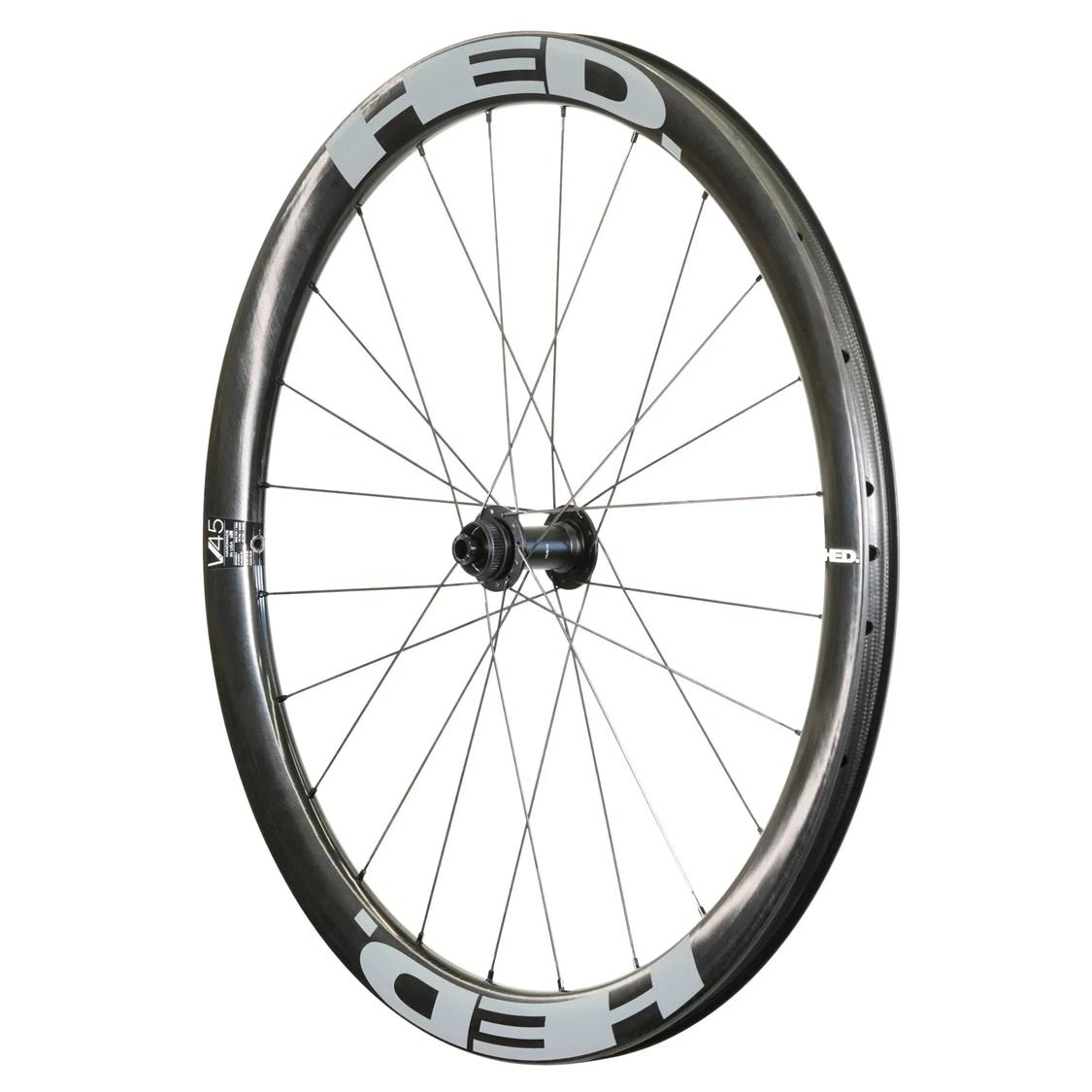

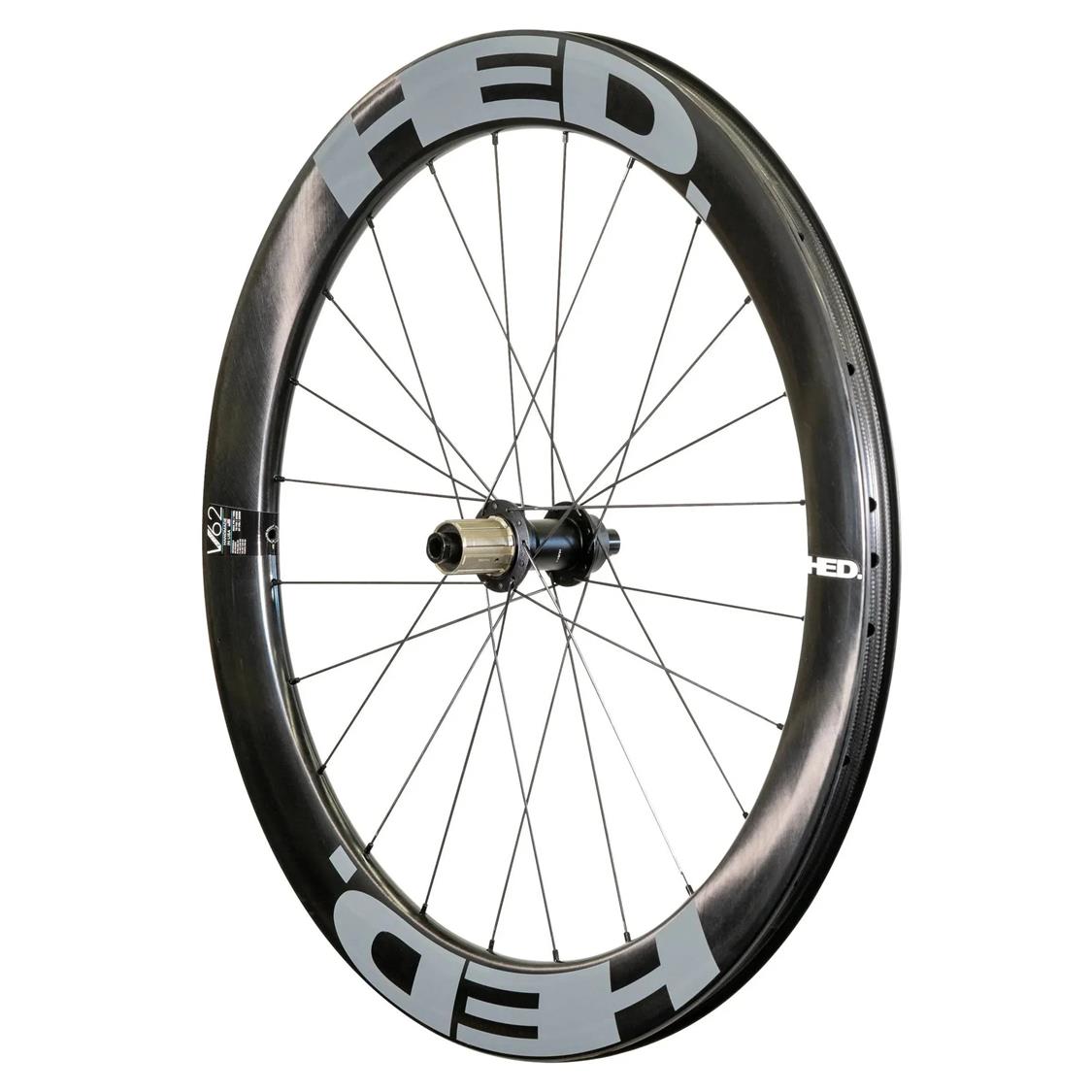

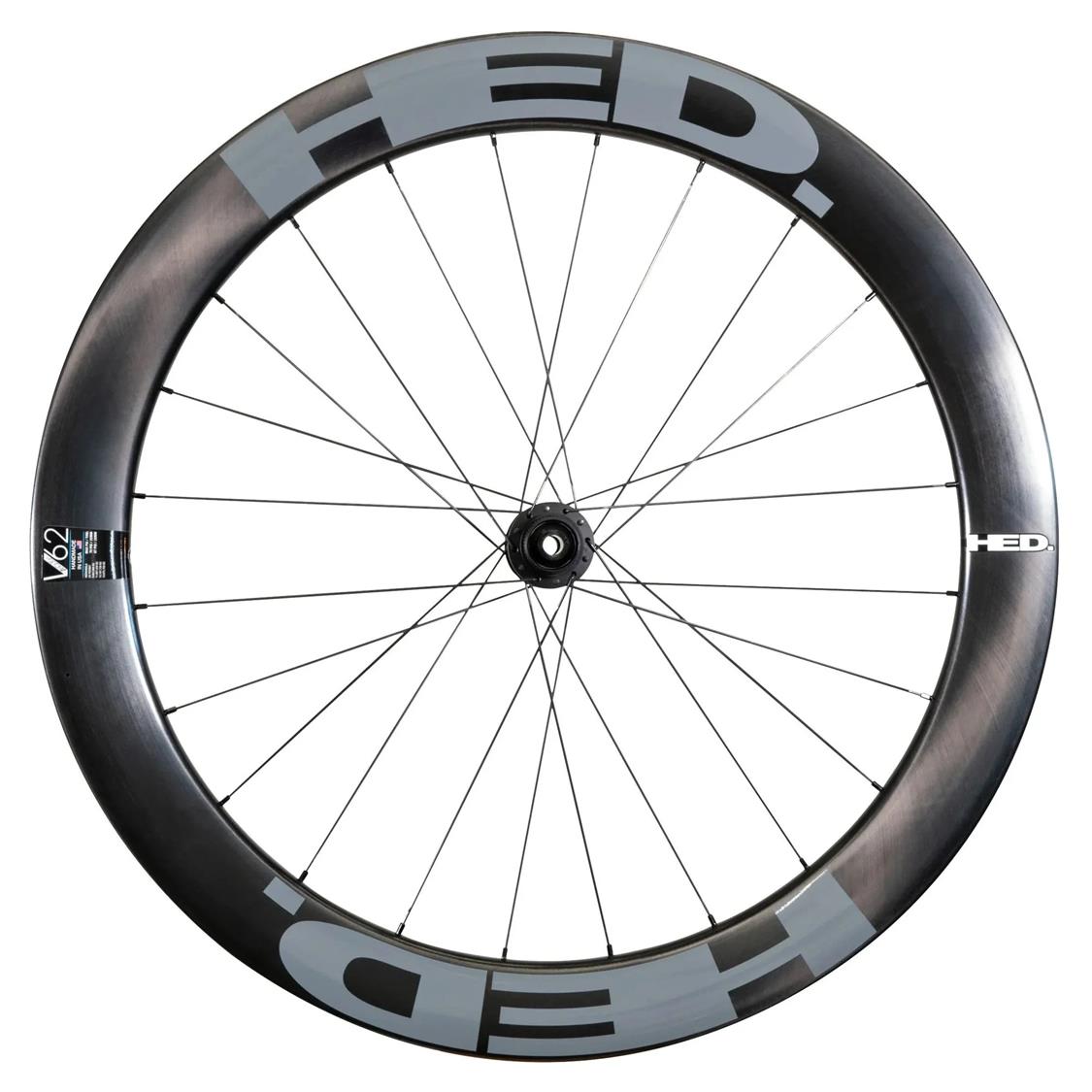

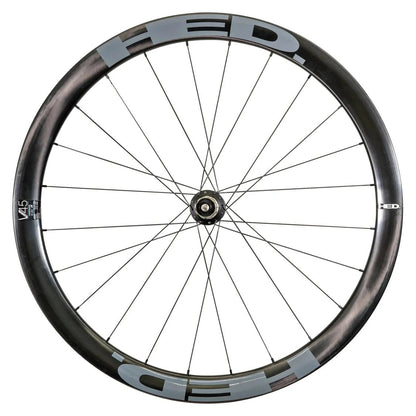

Vanquish // V45 & V62
Designed by the same minds and handmade by the same hands that created the Vanquish Pro series, this wallet-friendly option offers the same aerodynamic rim profile and performance edge as our pro line at a price point that saves room in the budget for a few equally fast kits. Going fast is about drag reduction AND predictability.
Get ready to turn heads at the next group ride.
Vanquish Features //
- Handmade in the USA

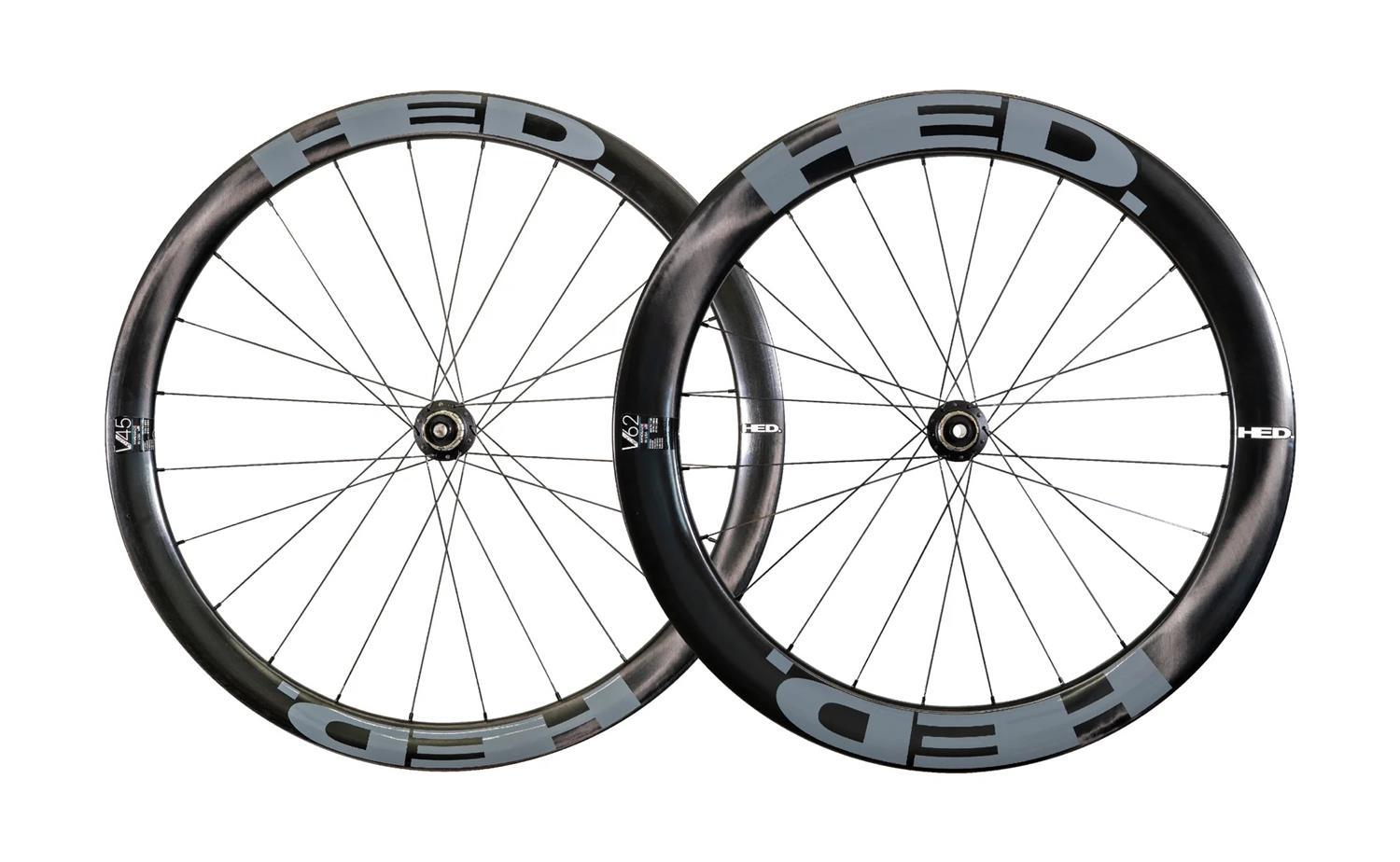

- Rim depth options of 45mm and 62mm
- 22.4mm Internal Width.
- HED GP Performance Centerlock Disc Brake Hubs
- Shimano or XDR Freehub options.
Vanquish Benefits //

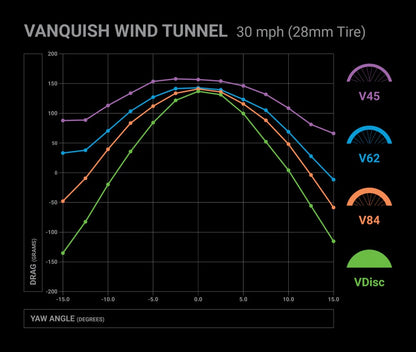

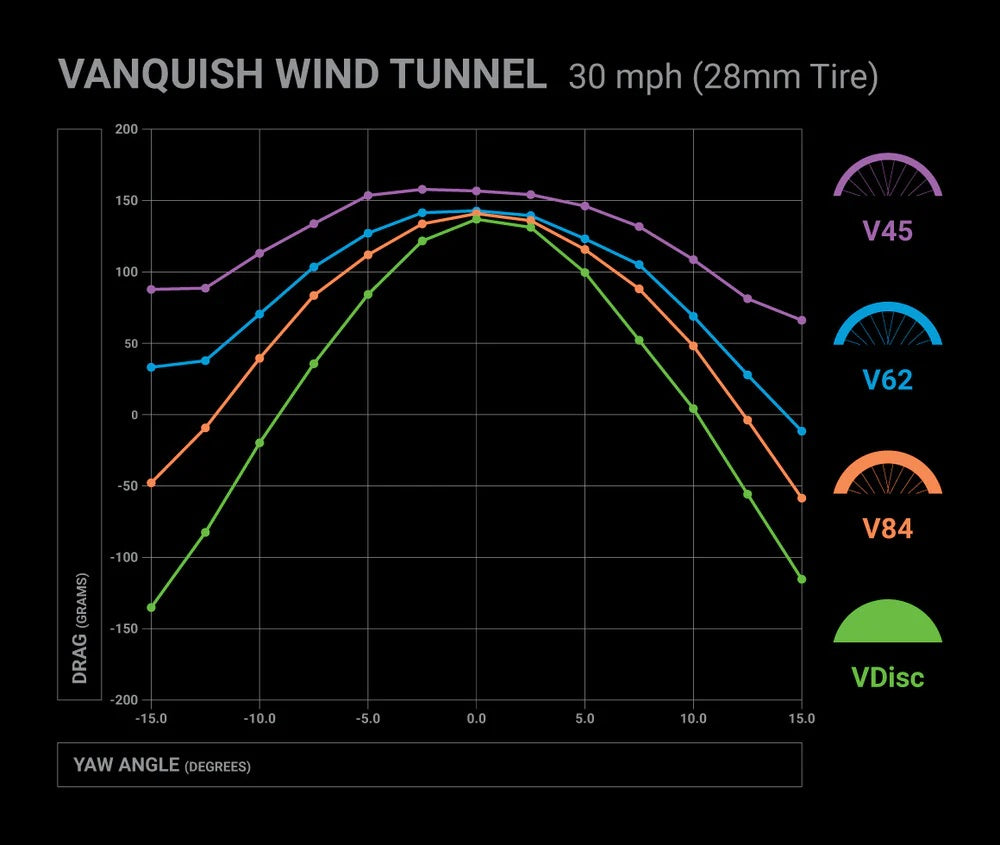

- Stable crosswind handling characteristics were retained to greater than 70% of typical cycling yaw angles
- 25mm-28mm tires are optimal for performance
| Specification | Vanquish 45 | Vanquish 62 |
| Intended Use | Road Race / All road | Road Race / TT / Triathlon |
| Tubeless Compatible | Yes | |
| Optimal Tyre Size | 28c | |
| Rim Internal Width | 22.4mm | |
| Rim External Width | 30.9mm | 31.1mm |
| Depth | 45mm | 62mm |
| Hole Count | 24 | |
| Front Hub | 12x100mm axle. Centrelock | |
| Front Hub Bearing | EZO Japan 2902RS x 2 | |
| Rear Hub | 12x142mm axle. Centrelock | |

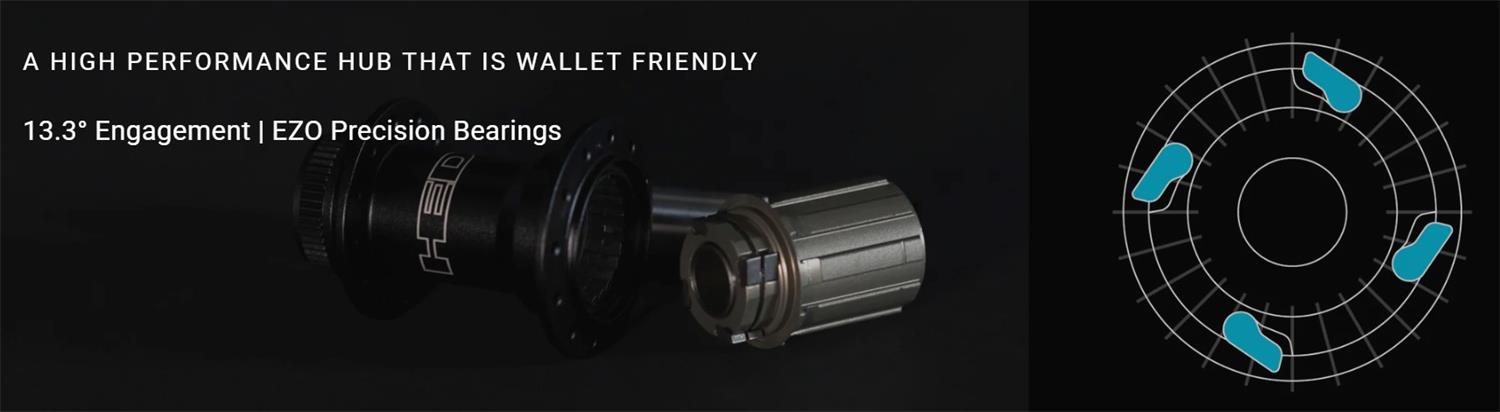

| Freehub | 4 Pawl: 13 degree engagement | |
| Rear Hub Bearing | EZO Japan 2902RS x 4 | |
| Spokes | Sapim Sprint, Hooked | |
| Front Wheel Weight | 757g | 789g |
| Rear Wheel Weight | 896g | 930g |
| Wheelset Weight | 1653g+/- 30g | 1719g+/- 30g |
| Tyre Pressure Max | 72 psi / 5 bar | |
| Incuded | Tubeless Rim tape (applied) + Tubeless valves | |
Technical Notes
1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.
2. We do NOT recommend hanging a bike equipped with Vanquish wheels from hooks – this can damage the carbon skin and will not be covered under warranty.
