The Vanquish Pro Series is HED’s most advanced wheelset, a full carbon, disc brake specific platform engineered for world-class performance and handmade in the U.S.A.
Proven Speed.
Every Vanquish Pro rim is molded and finished by hand in Minnesota. From raw carbon layup to quality control, each wheel passes through multiple stages of inspection to ensure elite-level performance. The result? A fast, stable, rim built on more than 35 years of HED’s aerodynamic leadership.
HED’s Fastest Wheel. Ever.

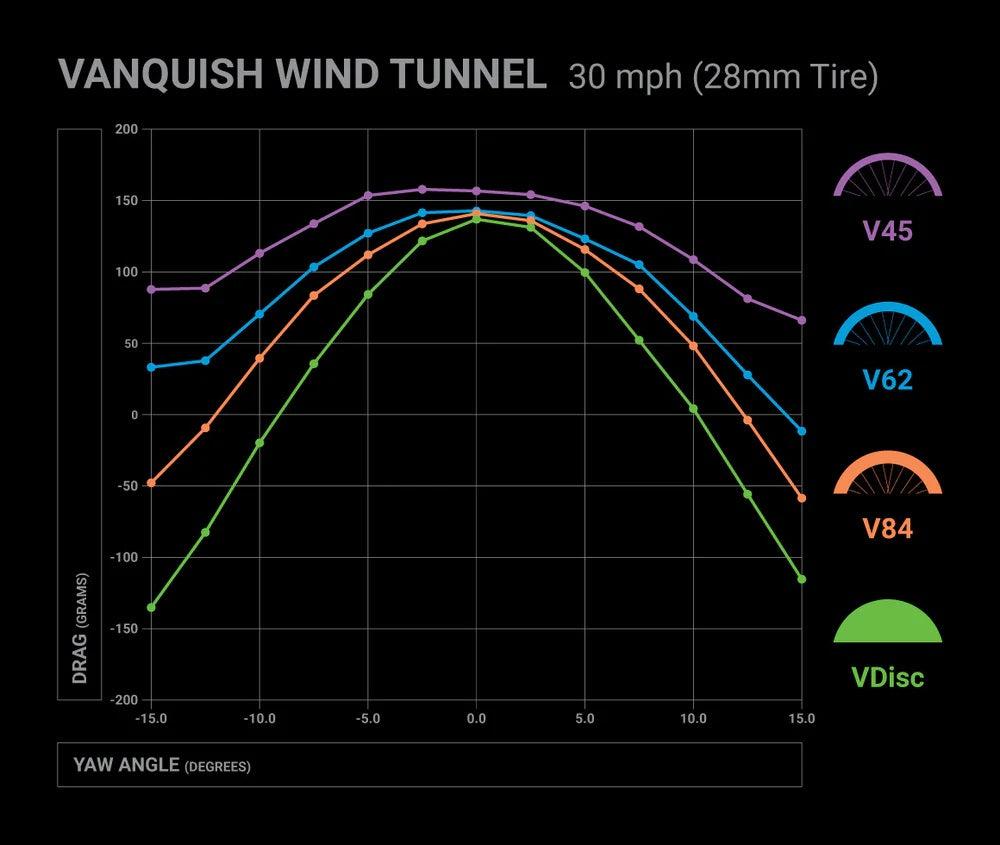

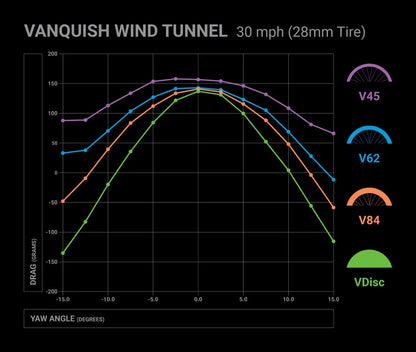

The Vanquish Pro Series delivers unmatched aerodynamic efficiency. These wheels are designed to cut through the wind and deliver a fast experience from start to finish.
Built for Disc Brakes.
Designed exclusively for disc brakes, each wheel features HED's Pro Centerlock hubs and a tubeless-compatible rim bed. The internal width pairs with today’s wider road tires, reducing rolling resistance while improving grip and control, even in crosswinds.
Vanquish Benefits //
- Stable crosswind handling characteristics were retained to greater than 70% of typical cycling yaw angles
- 25mm-28mm tires are optimal for performance
- 62mm Front / 84mm Rear rim depth
- Patented Rim Profiles
| Specification | Vanquish Pro 62/84 Wheelset |
| Intended Use | Road Race / TT / Triathlon |
| Tubeless Compatible | Yes |
| Optimal Tyre Size | 28c |
| Rim Internal Width | 22.4mmm |
| Rim External Width | 30.9 |
| Depth | Front 62mm/ Rear 84mm |
| Hole Count | 24 |
| Front Hub | 12x100mm axle. Centrelock |
| Front Hub Bearing | EZO Japan 2902RS x 2 |
| Rear Hub | 12x142mm axlw. Centrelock |
| Freehub | 5 Pawl: 8 degree engagement |
| Rear Hub Bearing | EZO Japan 2902RS x 4 |
| Spokes | Sapim CX-ray hooked |
| Front Wheel Weight | 750g |
| Rear Wheel Weight | 960g |
| Wheelset Weight | 1710g +/- 30g |
| Tyre Pressure Max | 72 psi / 5 bar |
| Incuded | Tubeless Rim tape (applied) + Tubeless valves |
Technical Notes
1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.
2. We do NOT recommend hanging a bike equipped with Vanquish wheels from hooks – this can damage the carbon skin and will not be covered under warranty.
