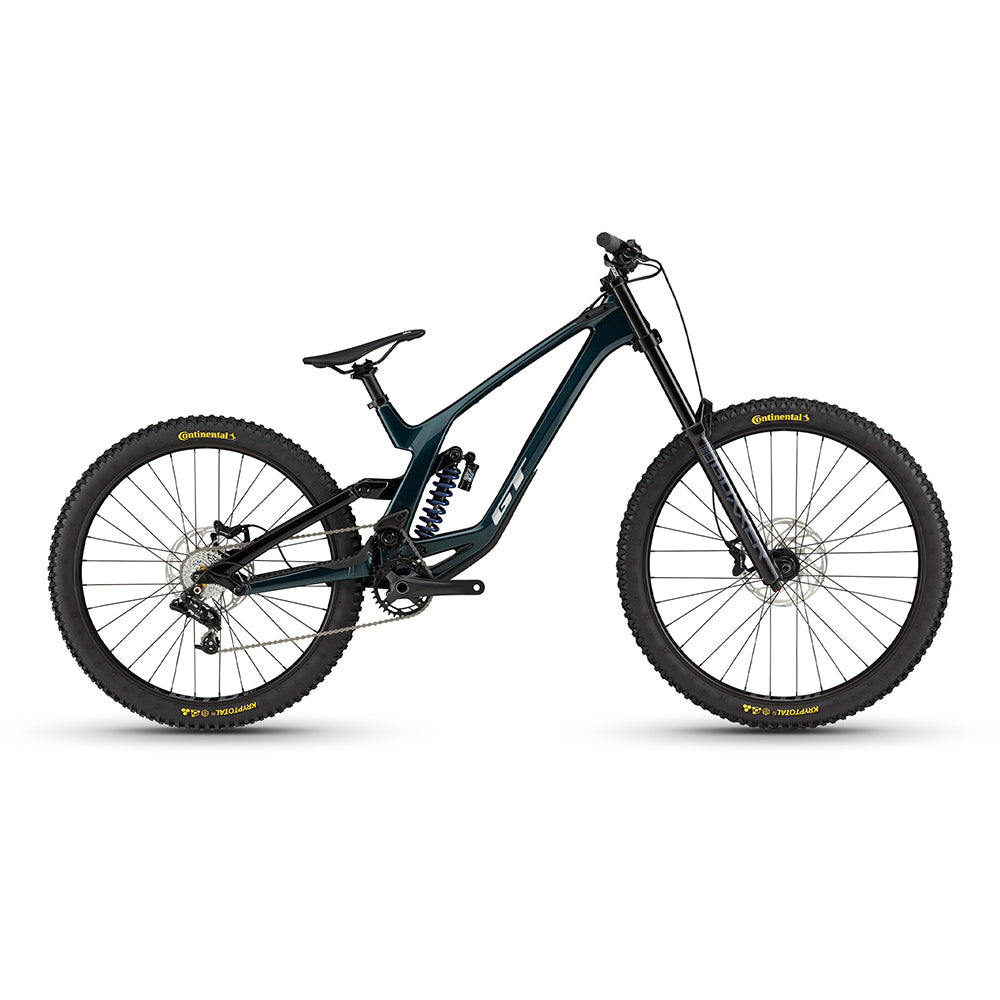

GT Fury 2023 Frame Parts

GT FURY 2023 FRAME PARTS

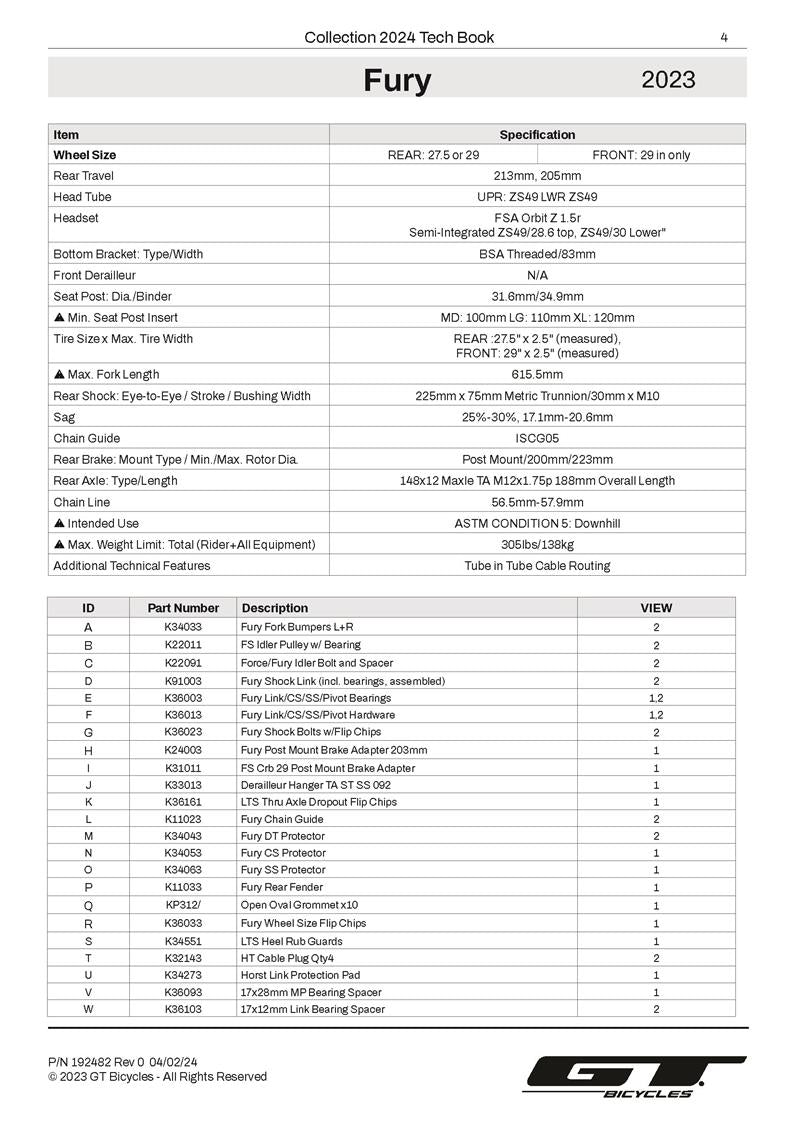

SPECIFICATIONS

• Rear Travel - 27.5 in : 213 mm, 29 in : 205 mm
• Head Tube - UPR: ZS49 LWR ZS49
• Headset - FSA Orbit Z 1.5r Semi-Integrated ZS49/28.6, ZS49/30
• Bottom Bracket: Type / Width - BSA/83mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - MD: 100mm LG: 110mm XL: 120mm
• Tire Size x Max. Width - 27.5 in x 2.5 in / 29 in x 2.5 in
• Max. Fork Length - 615.5mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 225 mm x 75 mm / 30 mm x 10mm
• Sag - 25%-30%, 17.1mm-20.6mm
• Chain Guide - ISCG 05
• Rear Brake Mount / Type - Post Mount / 200mm / 223mm
• Rear Axle: Type / Length - 148x12 Maxle TA M12x1.75p 188mm L
• Max. Weight Limit: Total - 138kg
