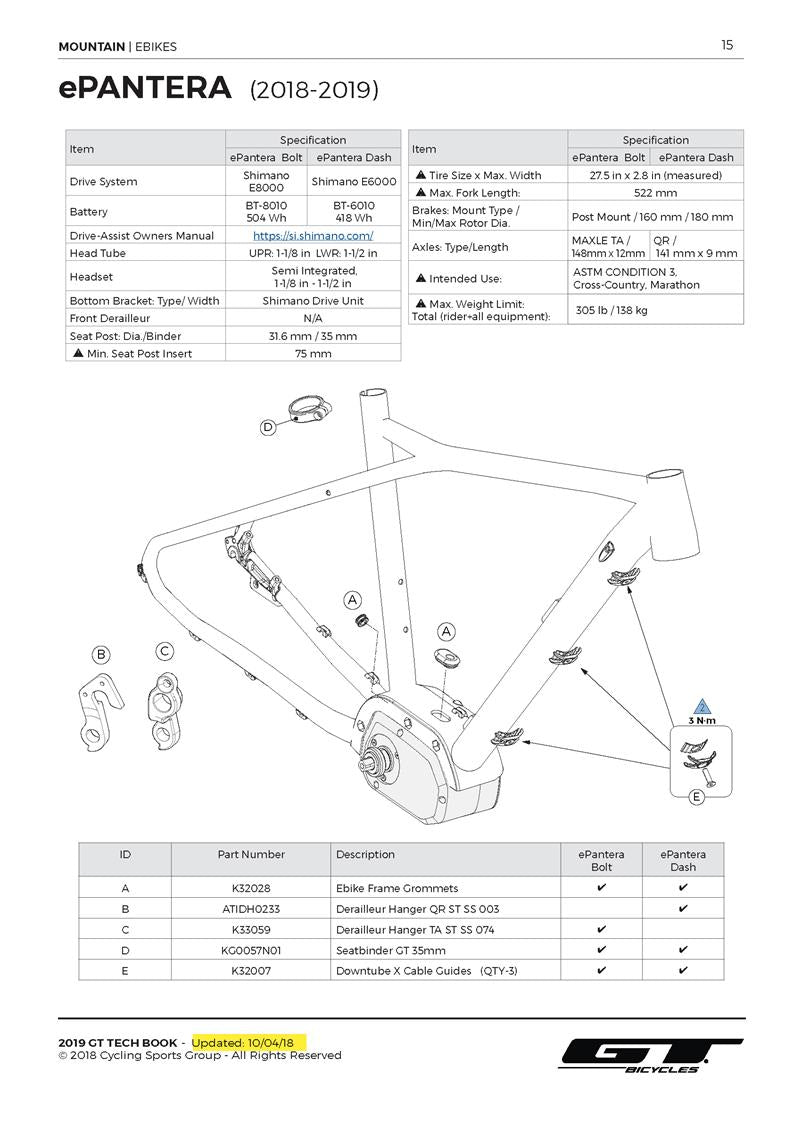

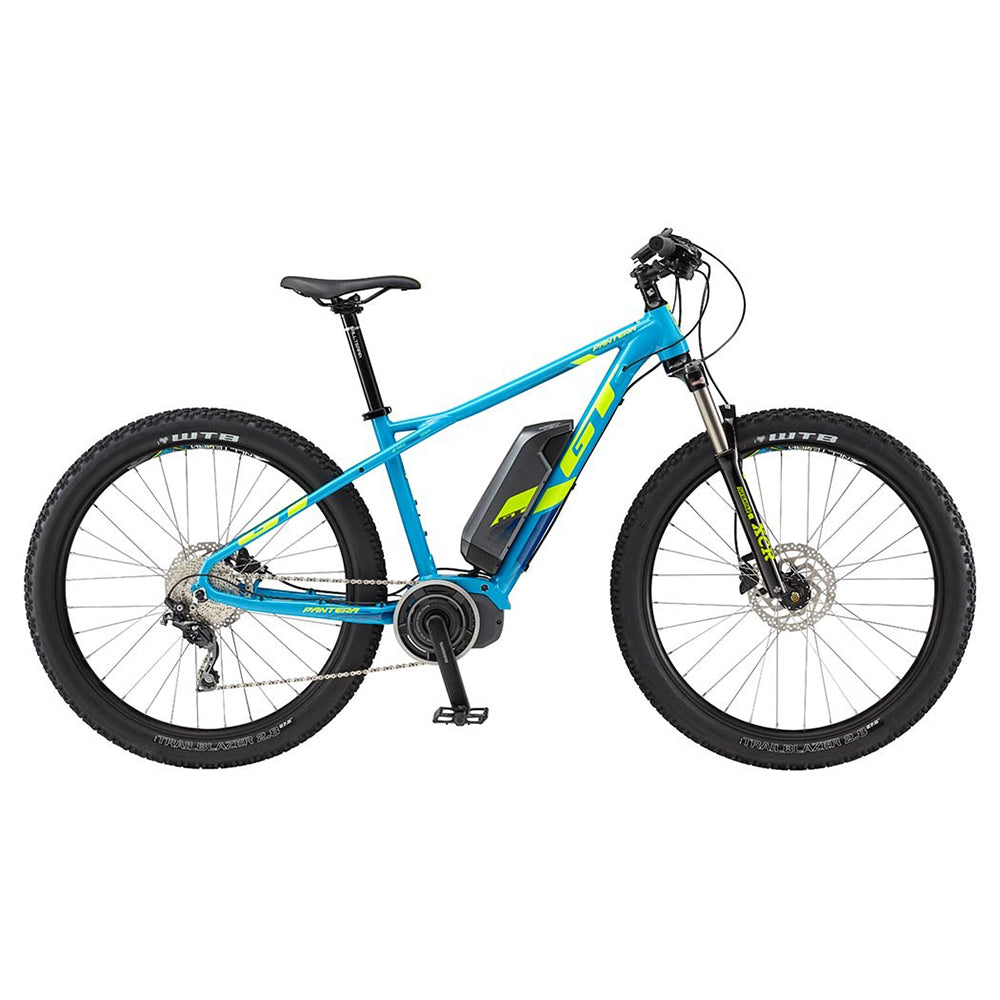

GT ePantera 2018 - 2019 Frame Parts

GT ePANTERA 2018 - 2019 FRAME PARTS

SPECIFICATIONS

• Drive System - Shimano
• Battery - BT-6010
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Semi Integrated, 1-1/8 in - 1-1/2 in
• Bottom Bracket: Type / Width - Shimano Drive Unit
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 75 mm
• Tire Size x Max. Width - 27.5 in x 2.8 in
• Max. Fork Length - 522 mm
• Rear Brake Mount / Type - Post Mount / 160mm / 180mm
• Rear Axle: Type / Length - MAXLE TA / 148mm x 12mm or 141mm QR
• Max. Weight Limit: Total - 138kg
