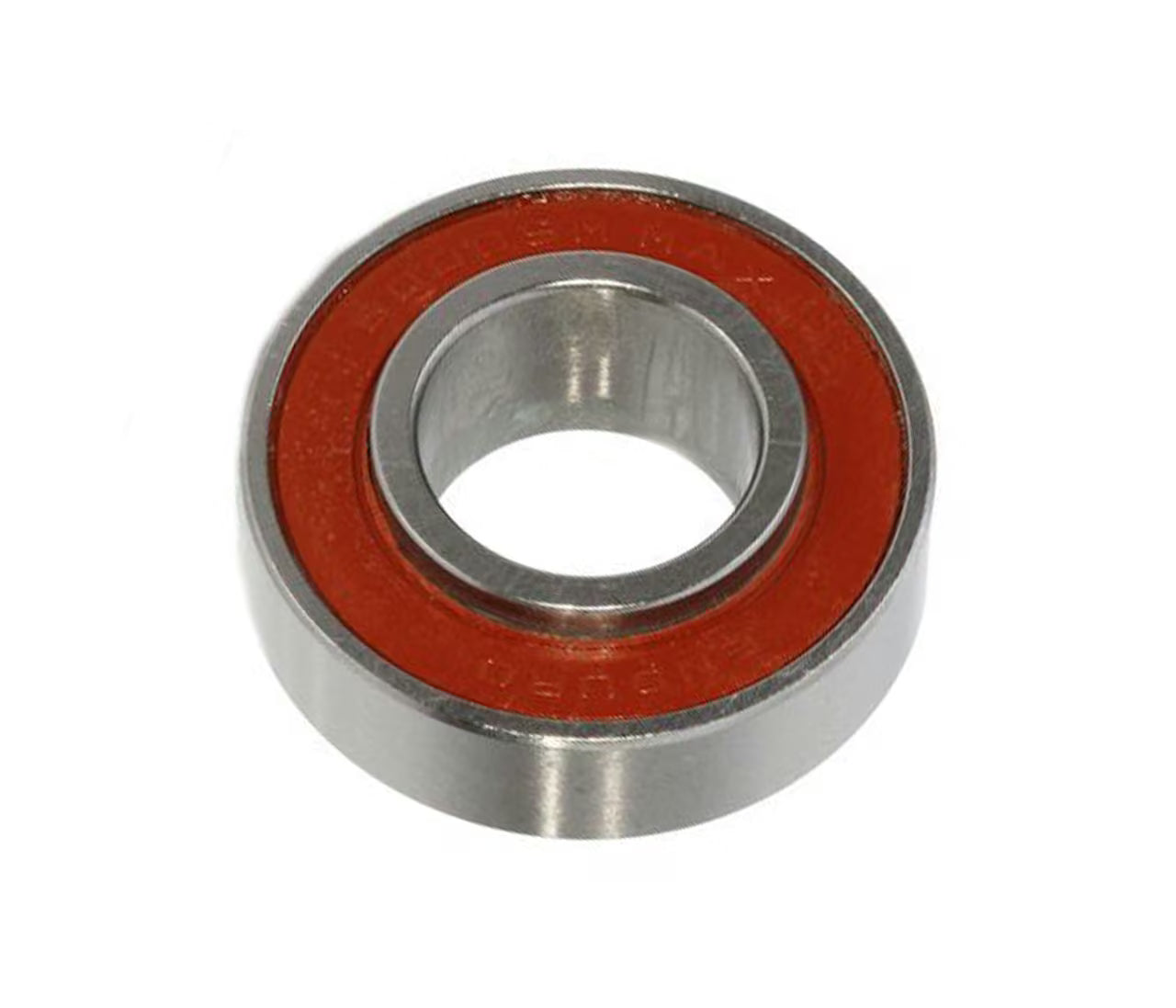

6000 2RS MAX EE-8 - MAX-Design, Extended Inner Race, ABEC-3, radial suspension bearing - 1/2 x 26mm x 8mm -
Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing features slightly enlarged 1/2 inner diameter and a double-extended inner race that eliminates the need for extra spacers to connect suspension linkages.
This bearing has been used as a suspension pivot bearing in cases where the bearing bore is metric and the shaft is 1/2".
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.
Static load - 697lbf / 3.1kN
Weight - 20.1g
