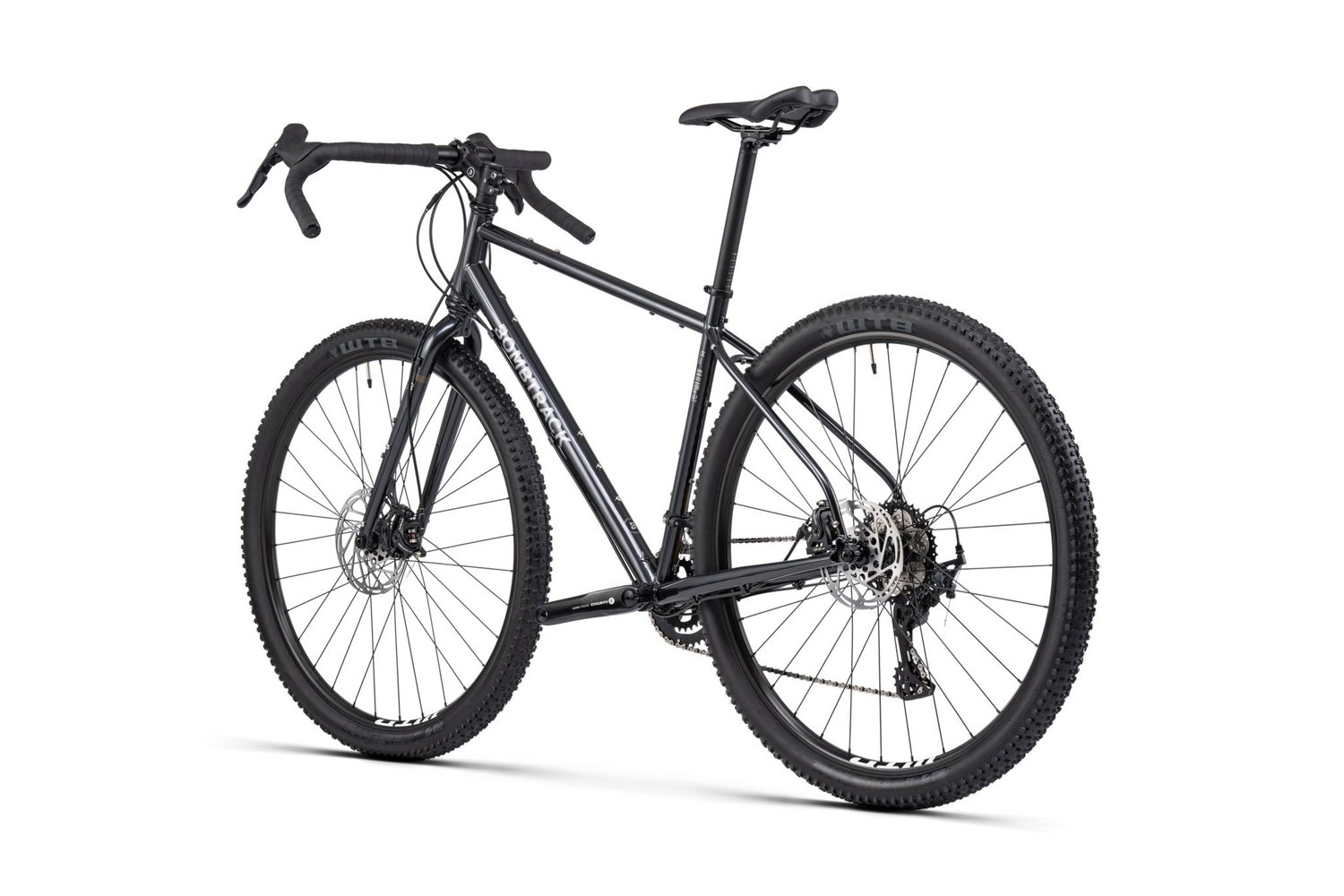

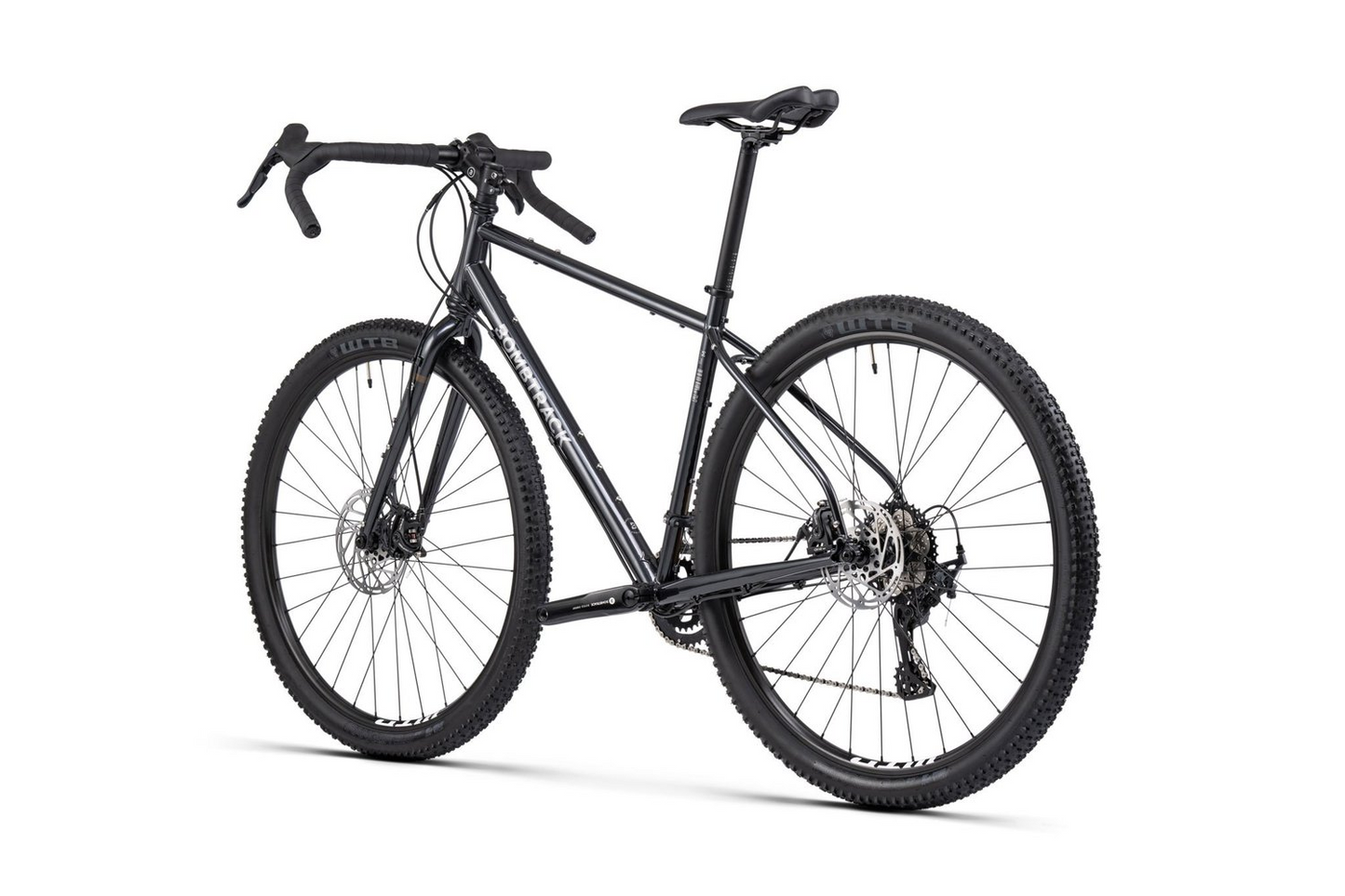

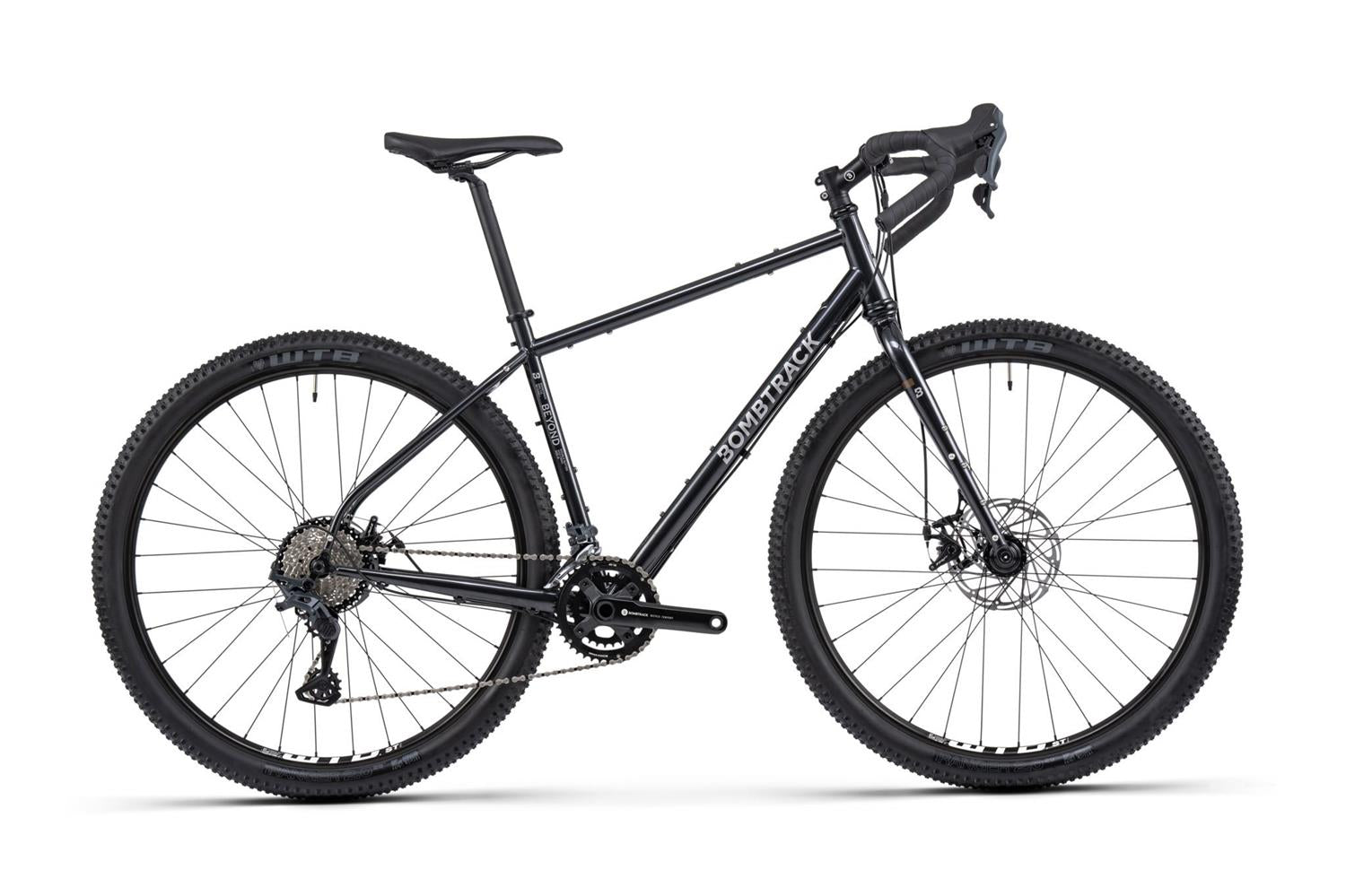

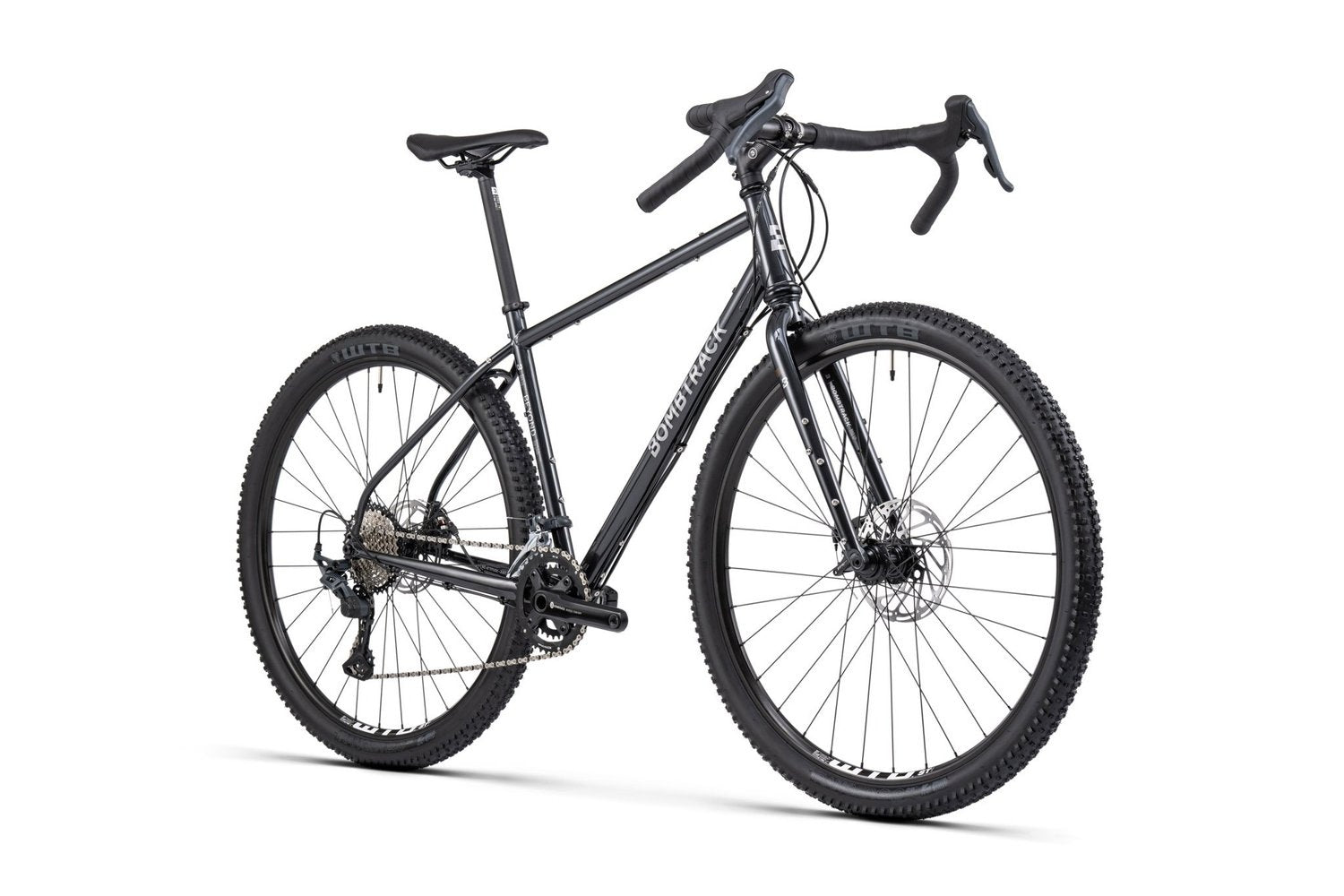

Our Beyond 1 is a drop bar, off-road adventure bike designed to take the rider wherever the compass guides them. The frame and fork are both made from reliable and lightweight 4130 double butted crmo tubing with a multitude of bottle and rack mounting options, joined to dropouts for thru-axles. Internal dynamo light cable routing also eliminates the possibility of snagging.
Shifting is from Microshift and their new 2 x 10 Sword set mated with an 11 - 38T cassette and 40 / 28T chainset. Braking duties are handled by TRP Spyre C mechanical callipers. The WTB rims are tubeless-ready and both 27.5’’ (XS-S) and 29’’ sizes use the awesome all-condition WTB Ranger TCS tyres. All you need now is to choose a destination, pack up and head off.
"Made to cross countries and continents via all kinds of roads and trackways..."
| Color 1 | Metallic black |
| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |

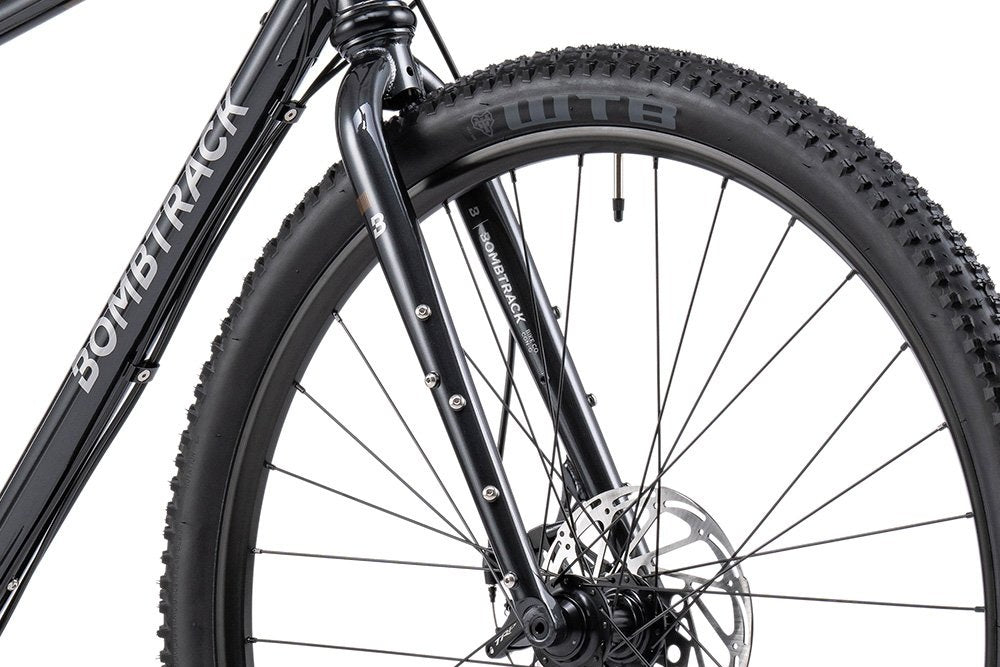

| Fork | 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

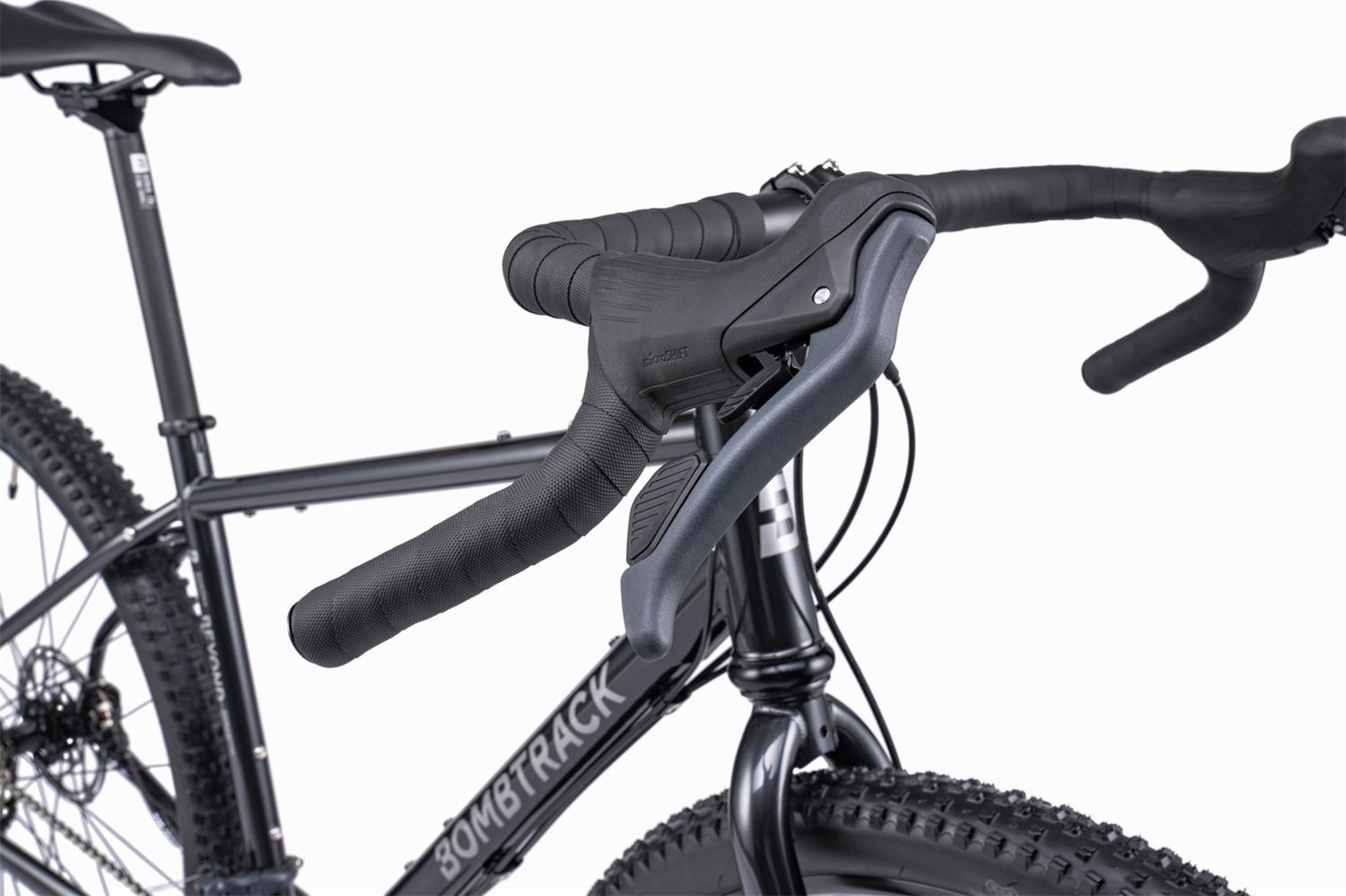

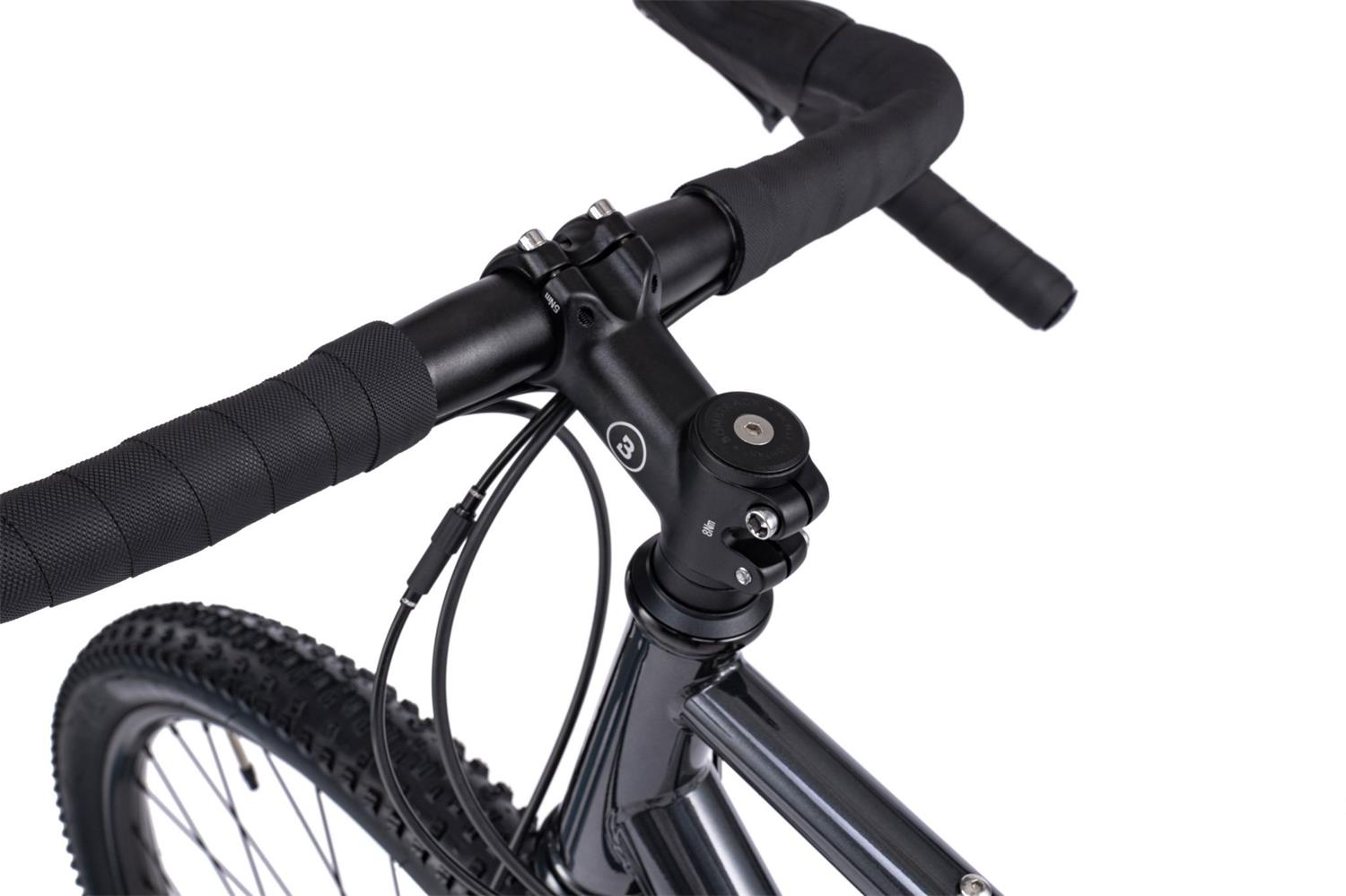

| Handlebar | Bombtrack Beyond travel bar, 31.8 mm, 30° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Bombtrack Wander forged aluminium stem, +17° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Microshift SB-G7020 Dual Control Lever mechanic |
| Shifter | Microshift SB-G7020 Dual Control Lever 2 x 10 |
| Brakes | TRP Spyre C mechanic disc brakes |
| Rotor | TRP 180 mm front and 160 mm rear rotor |

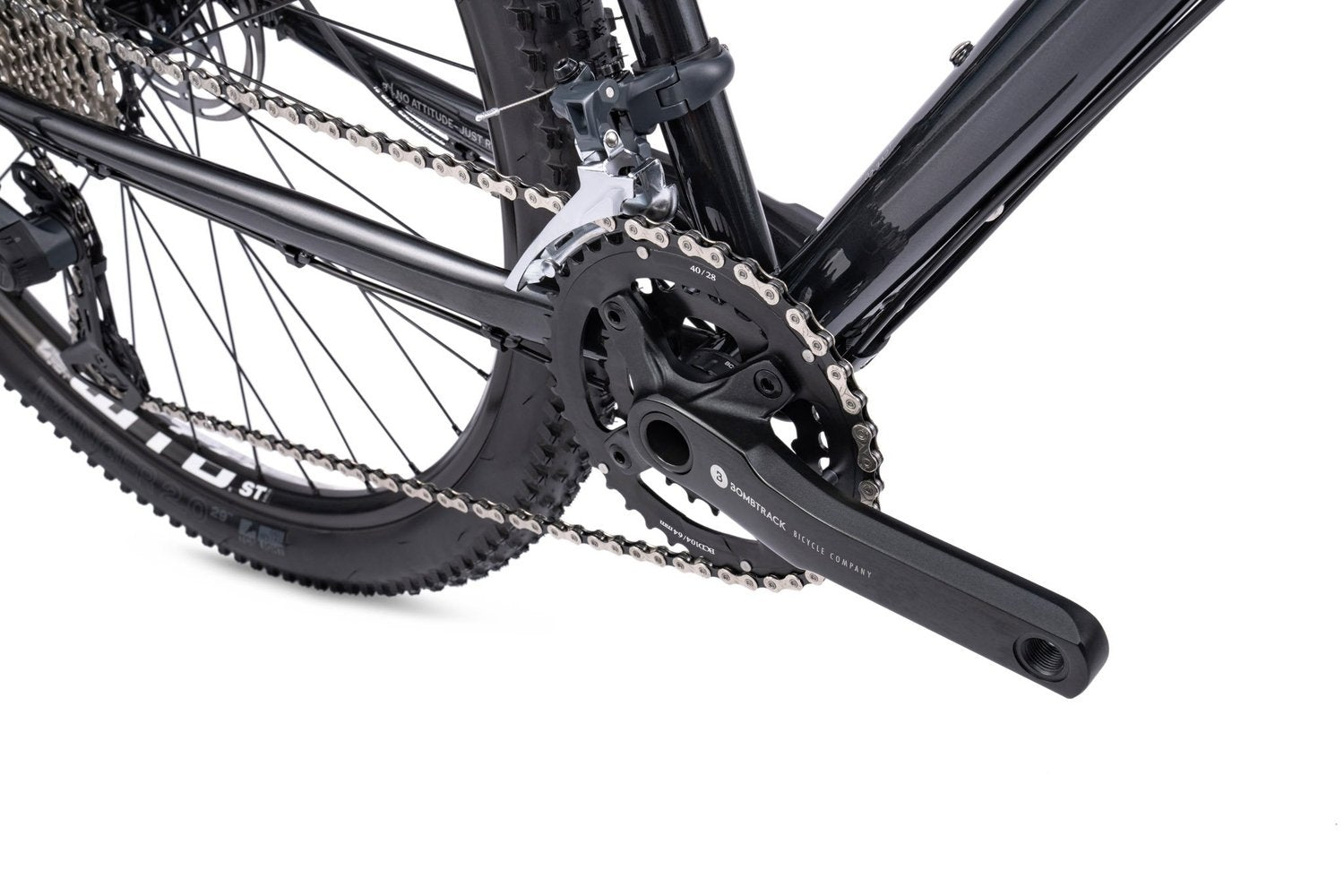

| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
| Chainring | Aluminium / Steel, 40 / 28 T |

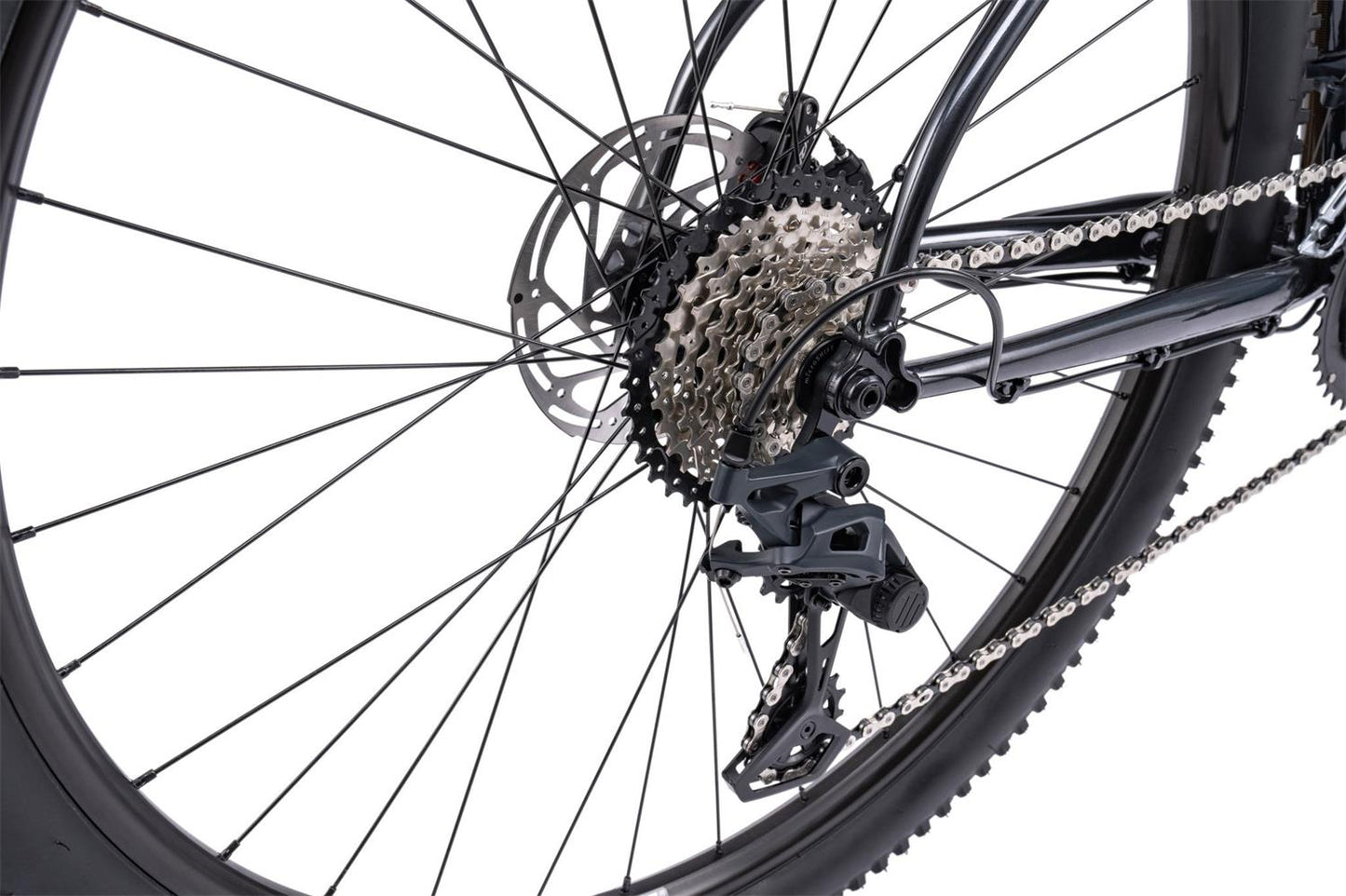

| Cassette | Microshift 10-speed, 11 - 38 T |
| Front derailleur | Microshift Sword FD-G7020-F |

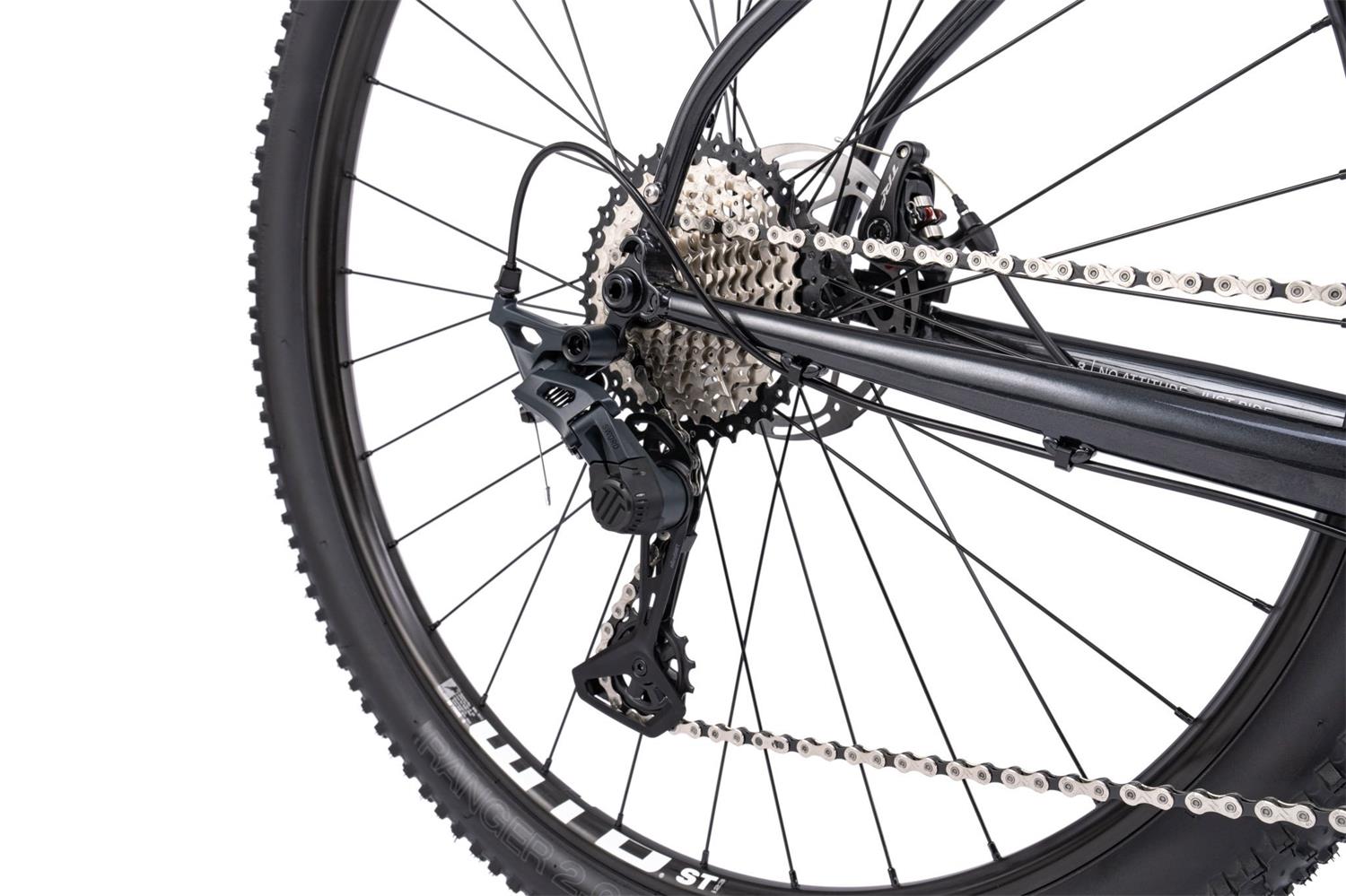

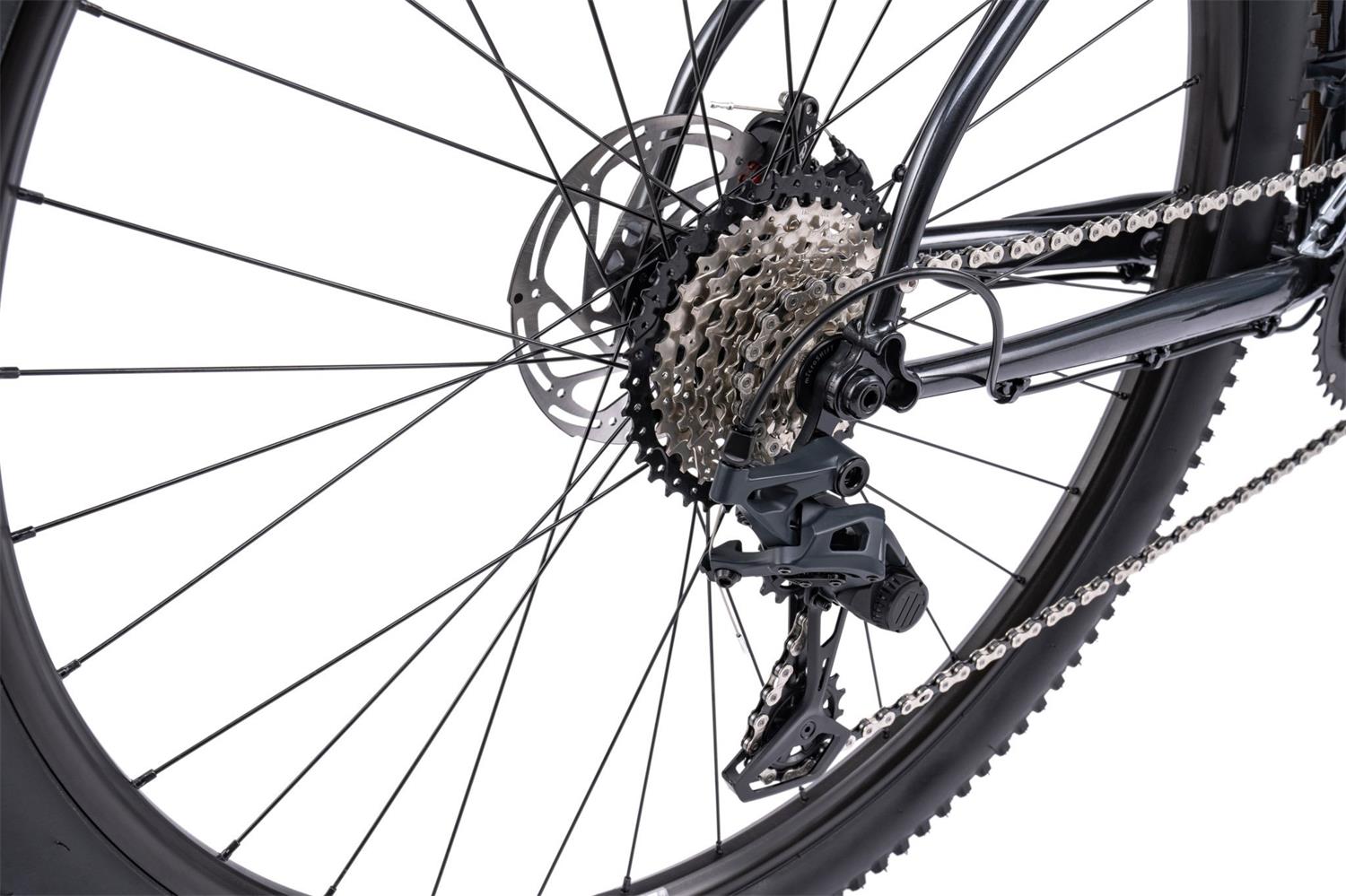

| Rear derailleur | Microshift Sword RD-G7025L, clutch, long cage |

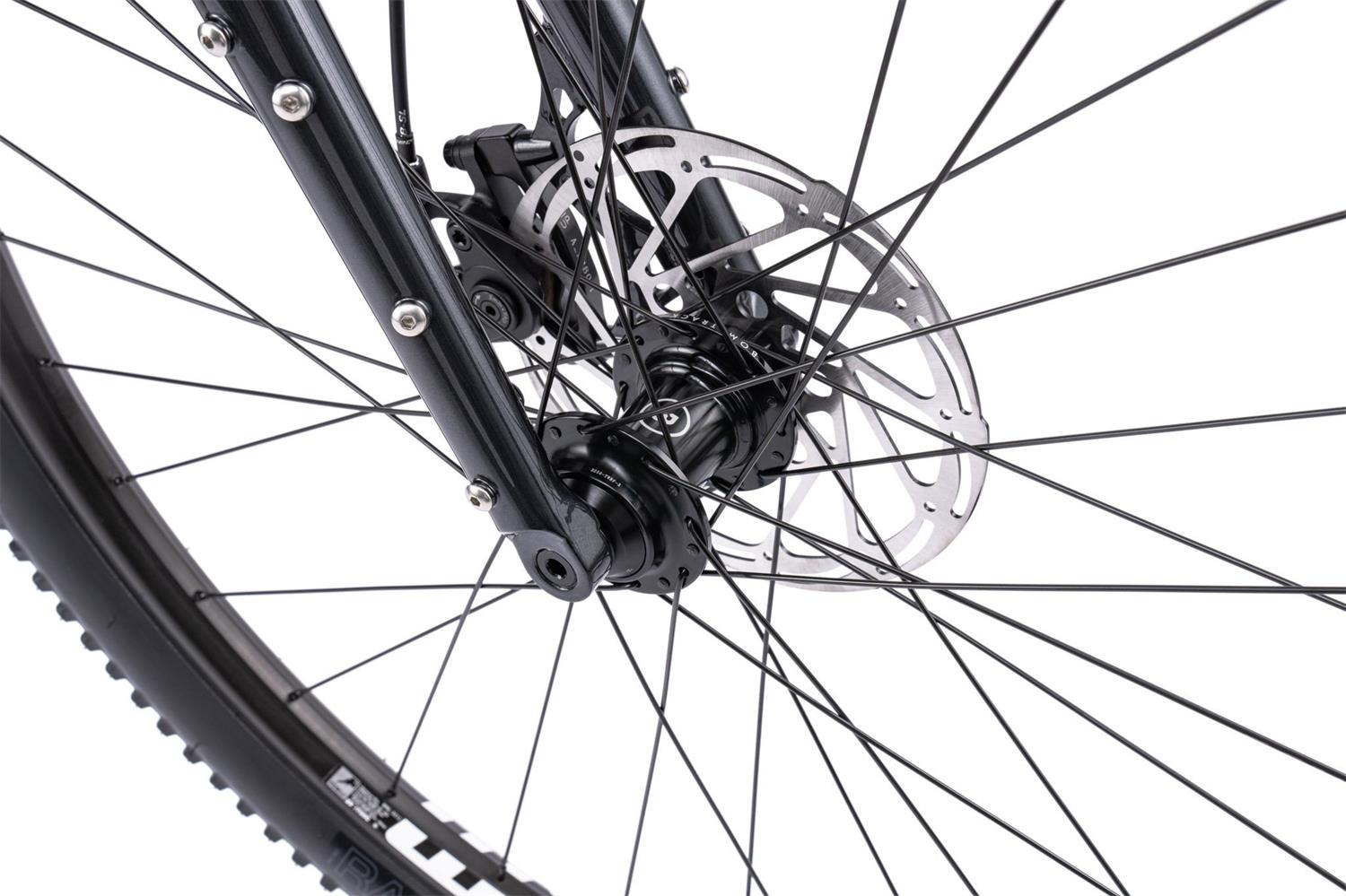

| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 15 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Seido Beech 27.2 mm x 400 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tire | WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Weight | 12.9 kg (size M) |
| Weight frameset | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
