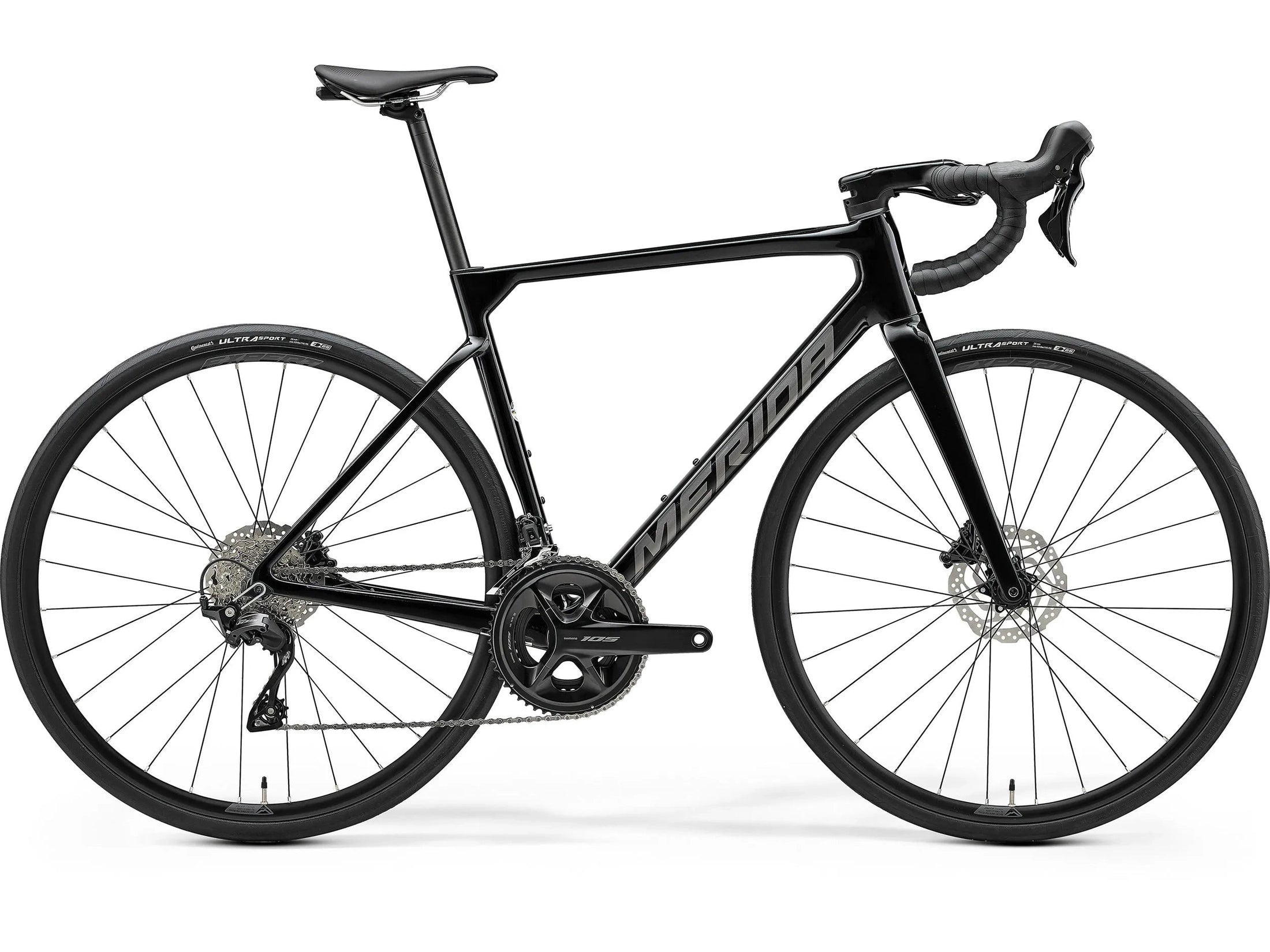

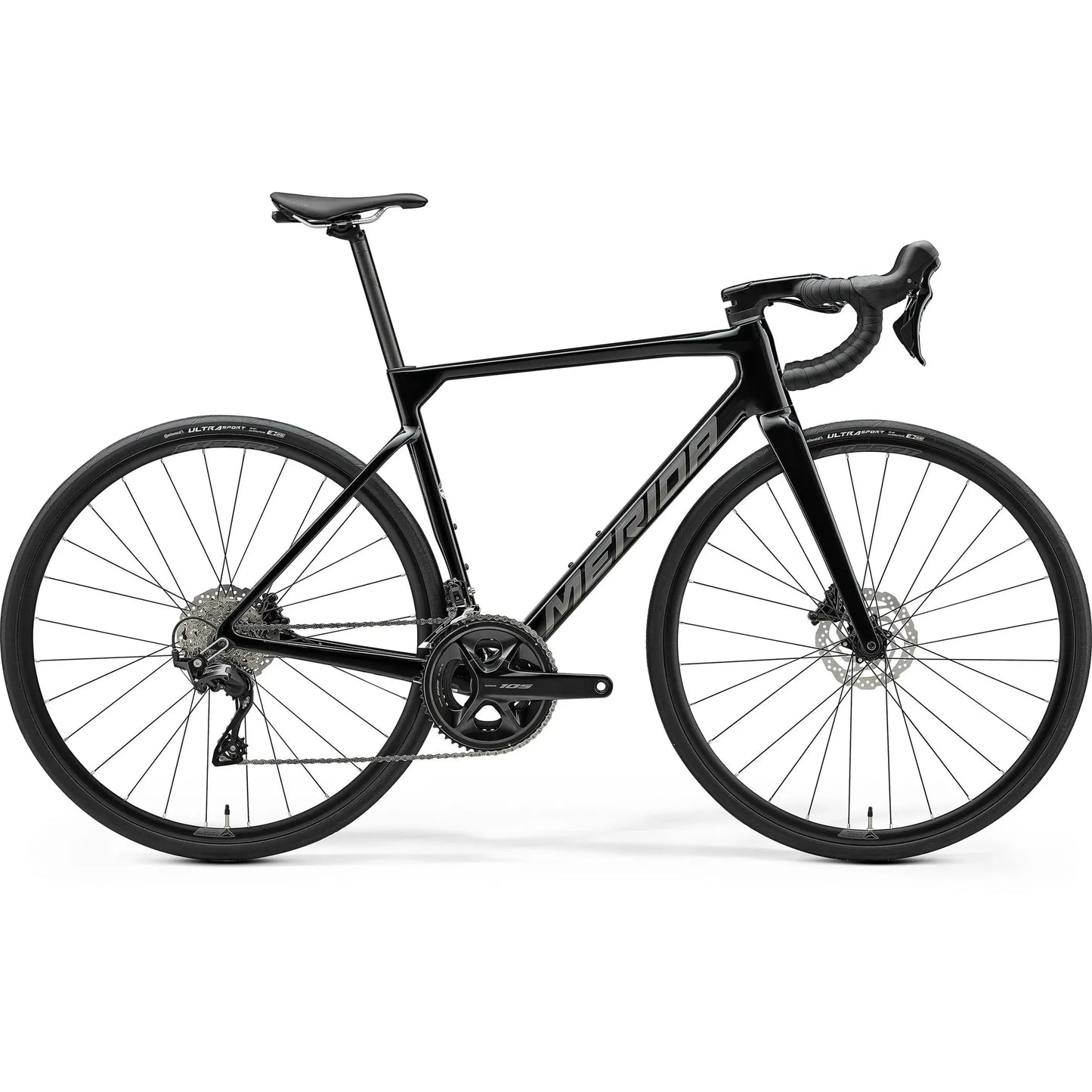

Merida SCULTURA 4000 2025 - METALLIC BLACK
Merida SCULTURA 4000 2025 - METALLIC BLACK
Couldn't load pickup availability
Based around the latest, super smooth 12-speed 105 groupset from Shimano and featuring our award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry bike to our latest SCULTURA frame design family. Similarly to its bigger brothers, it combines a long list of air slicing features and race-proven geometry, adapted from our REACTO family, with low weight and class-leading riding comfort creating an almost unbeatable package.
The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.
Features
- Lightweight CF3 carbon frame (approx. 997 g - in size M) with race proven (identical to REACTO) geometry
- Shimano 105 12-speed groupset
- MERIDA EXPERT SL II stem
- MERIDA EXPERT SL handlebar
- MERIDA EXPERT SL wheelset
- MERIDA EXPERT CC carbon seat post and DISC COOLER technology
| FRAME | SCULTURA CF3 V, material: carbon, 700x30C max. Wheelsize, 700x30C max. Wheelsize, Pressfit 86,5 |
|---|---|
| FORK | SCULTURA CF3 disc |
| BRAKES | Shimano 105 |
| ROTORS | Shimano RT10 |
| BRAKE LEVER | Shimano 105 |
| HEADSET | MERIDA TEAM SL |
| HANDLEBAR | MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS), 400mm (S-M-L-XL) |
| HANDLEBAR STEM | MERIDA EXPERT SL 2PII, material: aluminium, -9 stem angle, 90 mm-3XS/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL |
| GRIP | MERIDA ROAD Expert |
| DERAILLEUR (F) | Shimano 105 |
| DERAILLEUR (R) | Shimano 105 |
| SHIFTERS | Shimano 105 disc |
| SEAT POST | MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon |
| SEAT CLAMP | MERIDA EXPERT |
| SADDLE | MERIDA EXPERT SL, 6% recycled and 23% nature material, incl. MERIDA minitool |
| CHAIN | Shimano M6100-12 |
| CRANK | Shimano 105 R7100, 52-36 teeth, 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| FREEWHEEL | Shimano 105 R7101, 11-34 teeth, 12 speed |
| BOTTOM BRACKET | Shimano SM-BB72-41B, Pressfit 86.5 |
| HUBS | Shimano HB-TC500 / Shimano HB-TC500-HL, 28 spoke holes, Centerlock |
| RIM | MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
| TYRE FRONT | Continental Ultra Sport III, 700x28C, fold |
| TYRE REAR | Continental Ultra Sport III, 700x28C, fold |
| AXLES | MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
| SPOKES | Double Butted Black stainless |
| APPROX. WEIGHT | 8.8 kg (MD) |
