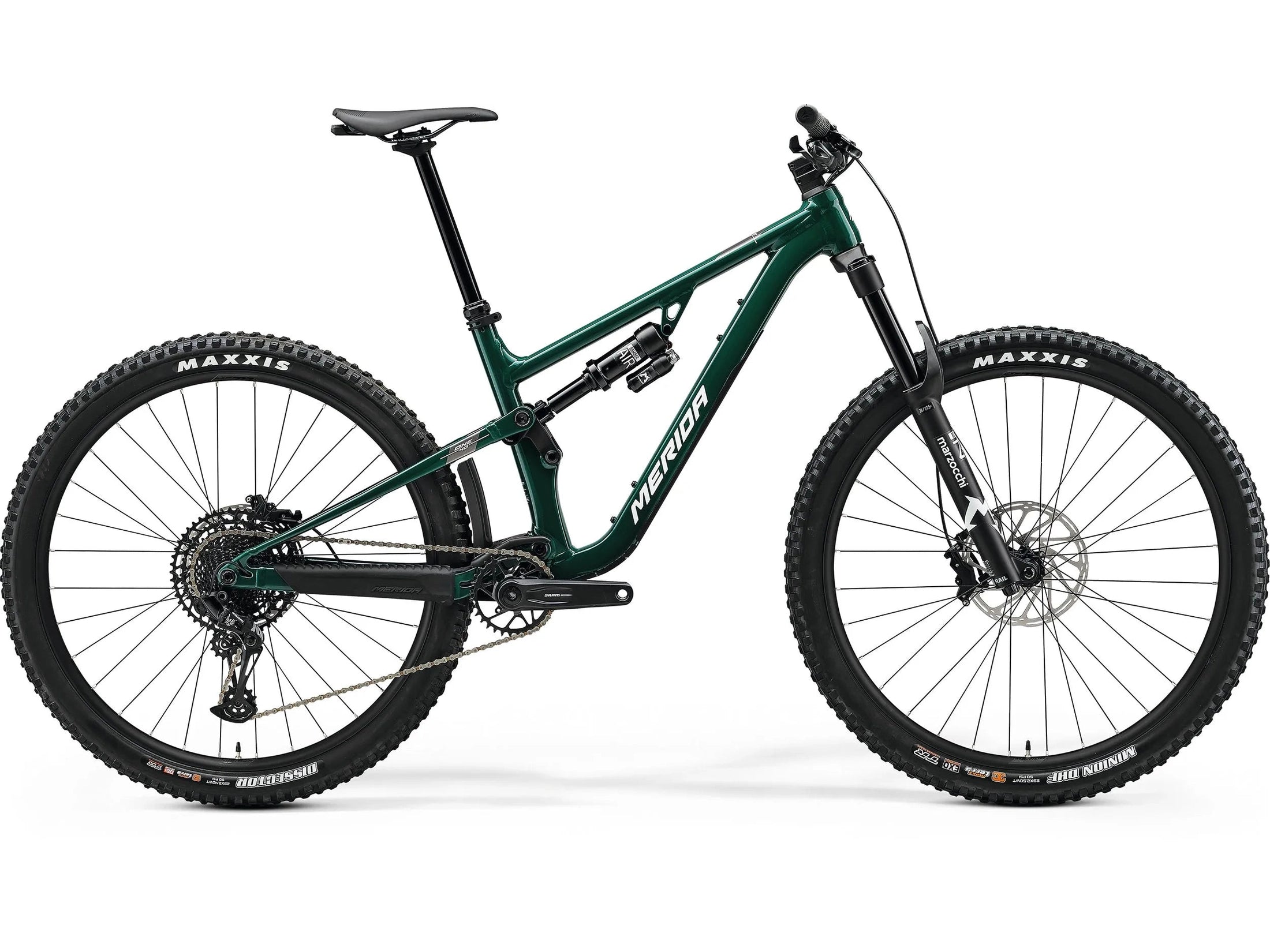

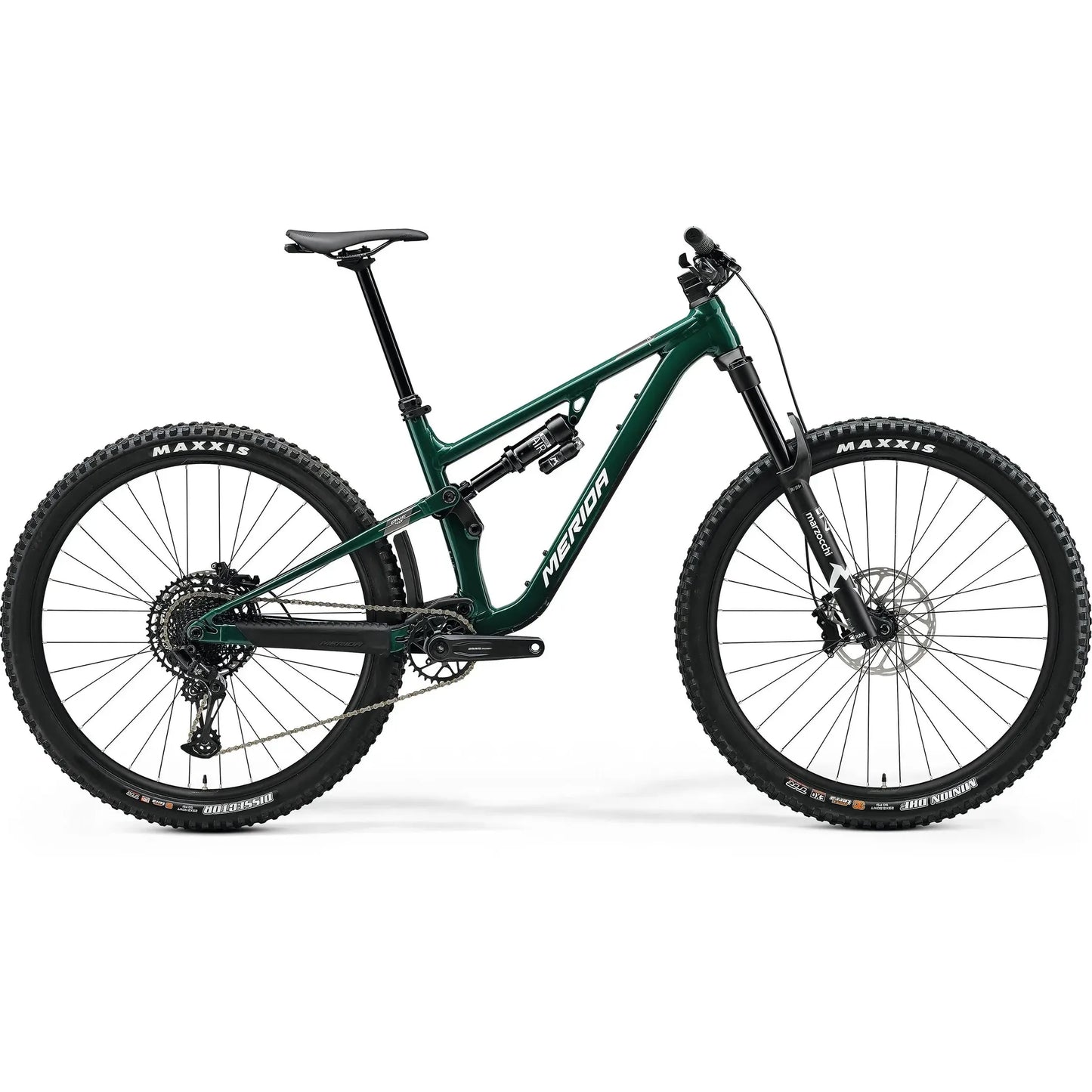

Merida ONE FORTY 700 2025 - DEEP FOREST GREEN
Merida ONE FORTY 700 2025 - DEEP FOREST GREEN
Couldn't load pickup availability
Bikeradar's Trail Bike of the Year 2023, the ONE-FORTY 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Our radical trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed SRAM drivetrain and four-piston brakes, high-performance Marzocchi suspension plus our long travel adjustable dropper post deliver unwavering performance.
The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.
Features
- Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
- Radical trail geometry with full 29er wheels
- 230 mm travel-adjustable dropper post
- Marzocchi suspension, 150 mm front, 143 mm rear
- Wide-range SRAM 12-speed drivetrain
- Powerful 4-piston hydraulic disc brakes
FRAME | ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
---|---|
SHOCK | Marzocchi Bomber Air; Air; platform |
FORK | Marzocchi Z1; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS |
BRAKE-F | Sram DB8 stealth; 4 piston |
BRAKE-R | Sram DB8 stealth; 4 piston |
ROTOR-F | Sram CenterLine; 200mm |
ROTOR-R | Sram CenterLine; 200mm |
CHAIN | Sram SX Eagle |
CRANKSET | Sram Eagle S1000 Eagle; 32 ATC |
CRANK LENGTH | 170 mm for all sizes |
BOTTOM BRACKET | Sram BB DUB BSA 73 MTB WIDE |
DERAILLEUR-REAR | Sram NX Eagle |
CASSETTE | Sram PG-1210 Eagle; 11-50 ATC; 12 GER |
GRIPS | MERIDA EXPERT EC |
HANDLEBAR | MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB |
STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
STEM SIZE | 40 mm |
HEADSET | Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing |
HUB-F | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
HUB-R | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
AXLE-R | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
RIM | MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
SEAT CLAMP | MERIDA EXPERT |
SEATPOST | MERIDA TEAM TR II; 34.9 DSP; 10 SSB; all sizes 30-230 SPT |
SHIFTER-REAR | Sram NX |
SPOKES | Double Butted Black stainless |
TIRE-F | Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTera |
TIRE-R | Maxxis Dissector; 29x2.4"; fold; TR EXO+ MaxxTerra |
