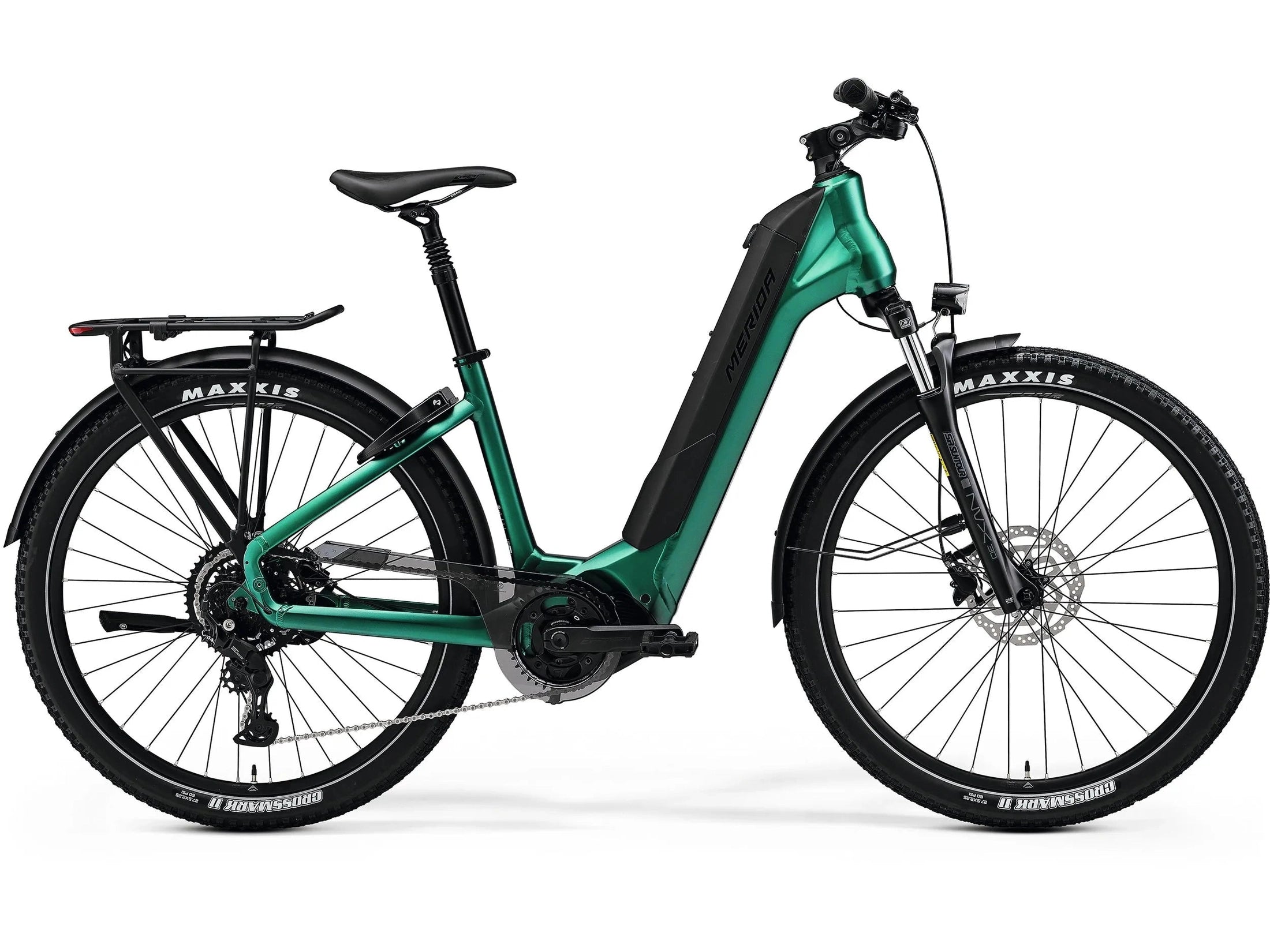

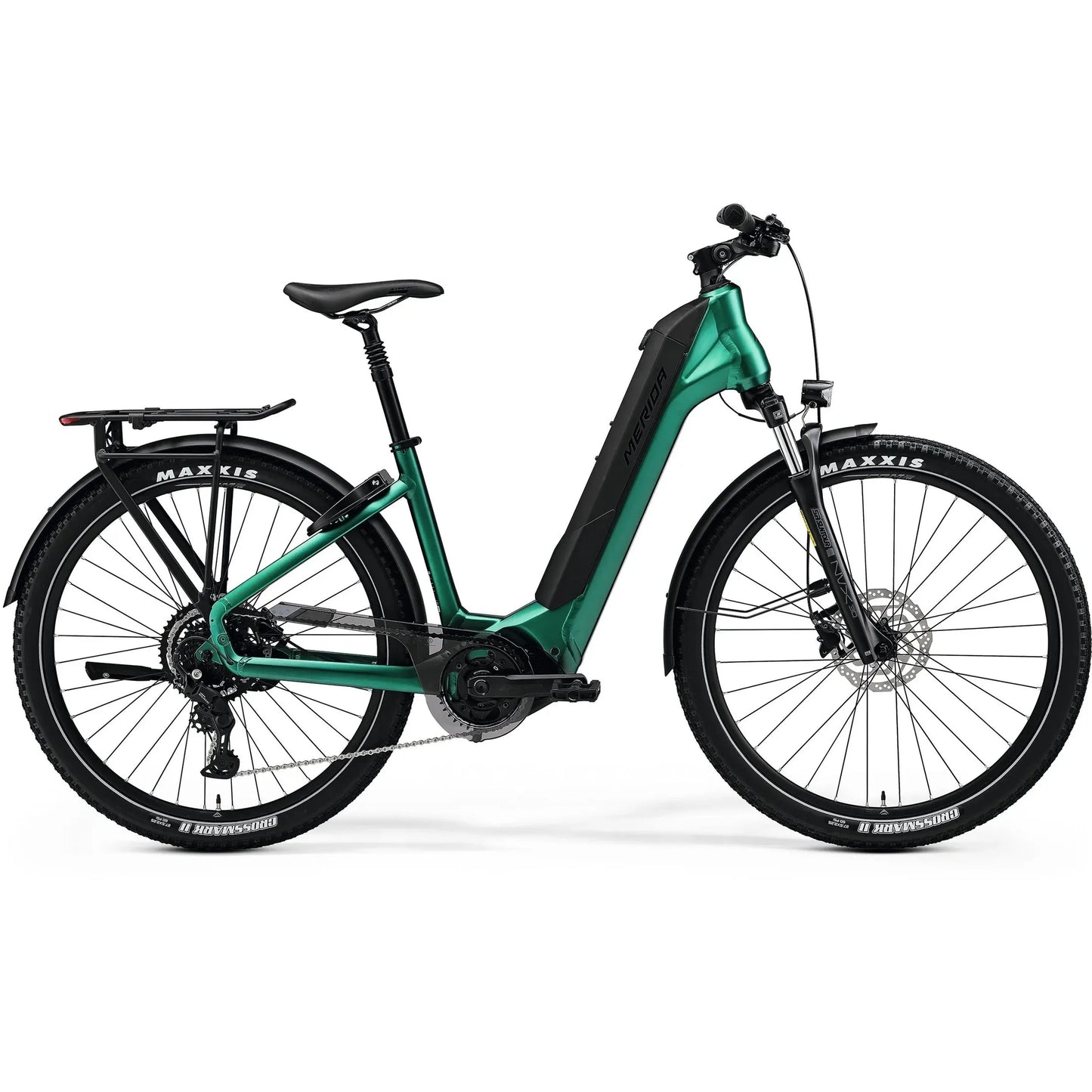

Merida eSPRESSO CC 400 EQ 2025 - SILK EVERGREEN
Merida eSPRESSO CC 400 EQ 2025 - SILK EVERGREEN
Couldn't load pickup availability
Whether your commute takes in forest trails and gravel tracks or you just want the freedom to explore at weekends, the eSPRESSO CC 400 EQ delivers all the convenience of a city e-bike with added off-road ability. That's because our low step-through ENERGY CRADLE frame is stiff enough to cope with dirt tracks while also housing an internal 504 Wh battery and the latest Shimano EP6 drive unit. While the suspension fork and seat post help keep you comfortable when it gets bumpy, we've fitted it with a host of kit to make city life easier and safer, with mudguards, rack, lights, lock and a kickstand as standard. A smooth-shifting Shimano 9-speed drivetrain and strong, low-maintenance hydraulic disc brakes add fuss-free control.
The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Featuring the super-strong low step-through ENERGY CRADLE frame design that gives the bike the necessary rigidity, the eSPRESSO CC models are equipped with a 750, 630 or 504 Wh fully-integrated battery. All come with a refined but powerful Shimano EP6 STEPS pedal-assist motor, delivering 85 Nm of torque. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.
Features
- Latest powerful Shimano EP6 drive unit
- Super low step-through ENERGY CRADLE frame design with internally mounted 504 Wh battery
- Smooth Shimano 9-speed drivetrain
- Suspension fork and seat post for comfort and control
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
FRAME | eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal |
---|---|
FORK | Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS |
BRAKE-F | Shimano MT-200; 2 piston |
BRAKE-R | Shimano MT-200; 2 piston |
ROTOR-FRONT | Shimano RT10; 180 mm |
ROTOR-REAR | Shimano RTEM300M; 180 mm |
CHAIN | Shimano LG500 |
CHAINGUARD | Sunnywheel SW-CG-173A |
CRANKSET | Samox NWP203 ; 38 ATC |
CRANK SIZE | MERIDA EXPERT TK; 165mm |
DERAILLEUR-REAR | Shimano CUES U4000 |
FREEWHEEL | Shimano LG300; 11-46 ATC; 9 GER |
PEDAL | VP VPE-891 |
GRIP | MERIDA EXPERT TK |
HANDLEBAR | MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB |
STEM | MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable |
STEM SIZE | 90 mm- XS/S/M/L/XL |
HEADSET | MERIDA-8254 |
HUB-F | Shimano QC300; 100x9 WHF; 32 SPH; Centerlock |
HUB-R | Shimano QC300; 135x9 WHR; 32 SPH; Centerlock |
SADDLE | MERIDA EXPERT TK II; V-mount |
SEAT CLAMP | MERIDA EXPERT |
SEAT POST | JD-SP79; 30.9 DSP; 15 SSB; 40 SST |
SHIFTER-R | Shimano CUES U4000 |
SPOKE | Black stainless |
TIRE-F | Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line |
TIRE-R | Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line |
CARRIER | MERIDA MIK HD Carrier with Spring clip & Spanninga rear light |
FENDER | Sunnywheel SW-FA-311-65(MSB) |
KICKSTAND | Atranvelo ED-100-PC |
LIGHT-FRONT | Herrmans H-Black MR4 E |
LIGHT-REAR | Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier |
FRAME LOCK | Abus 4650 XL |
DRIVE UNIT | Shimano EP6; 85Nm |
DRIVE COVER | Drive Unit Cover for EP801/EP600 |
BATTERY | Shimano EN805-L; 504Wh |
DISPLAY | Shimano SC-EN500 |
