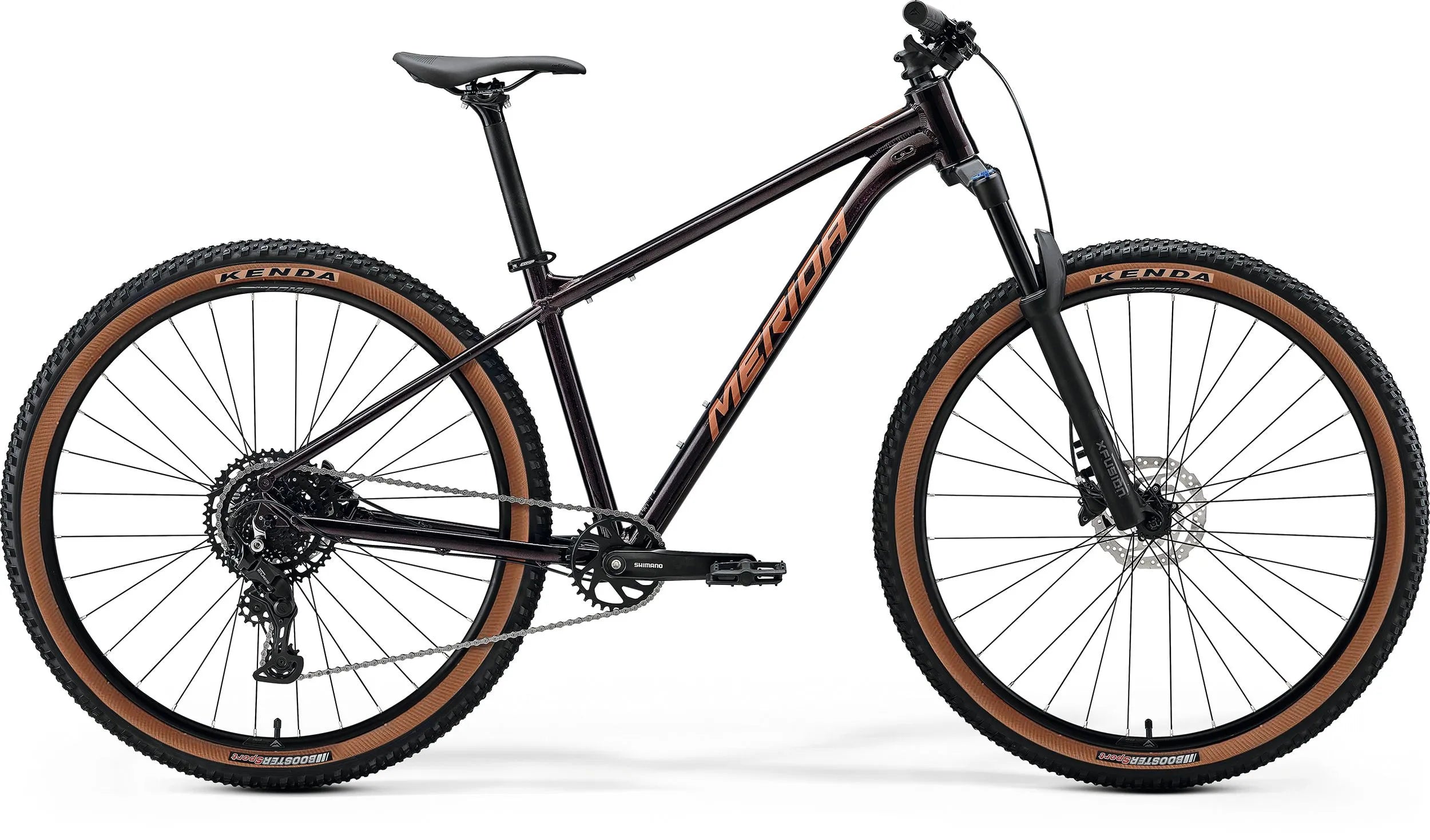

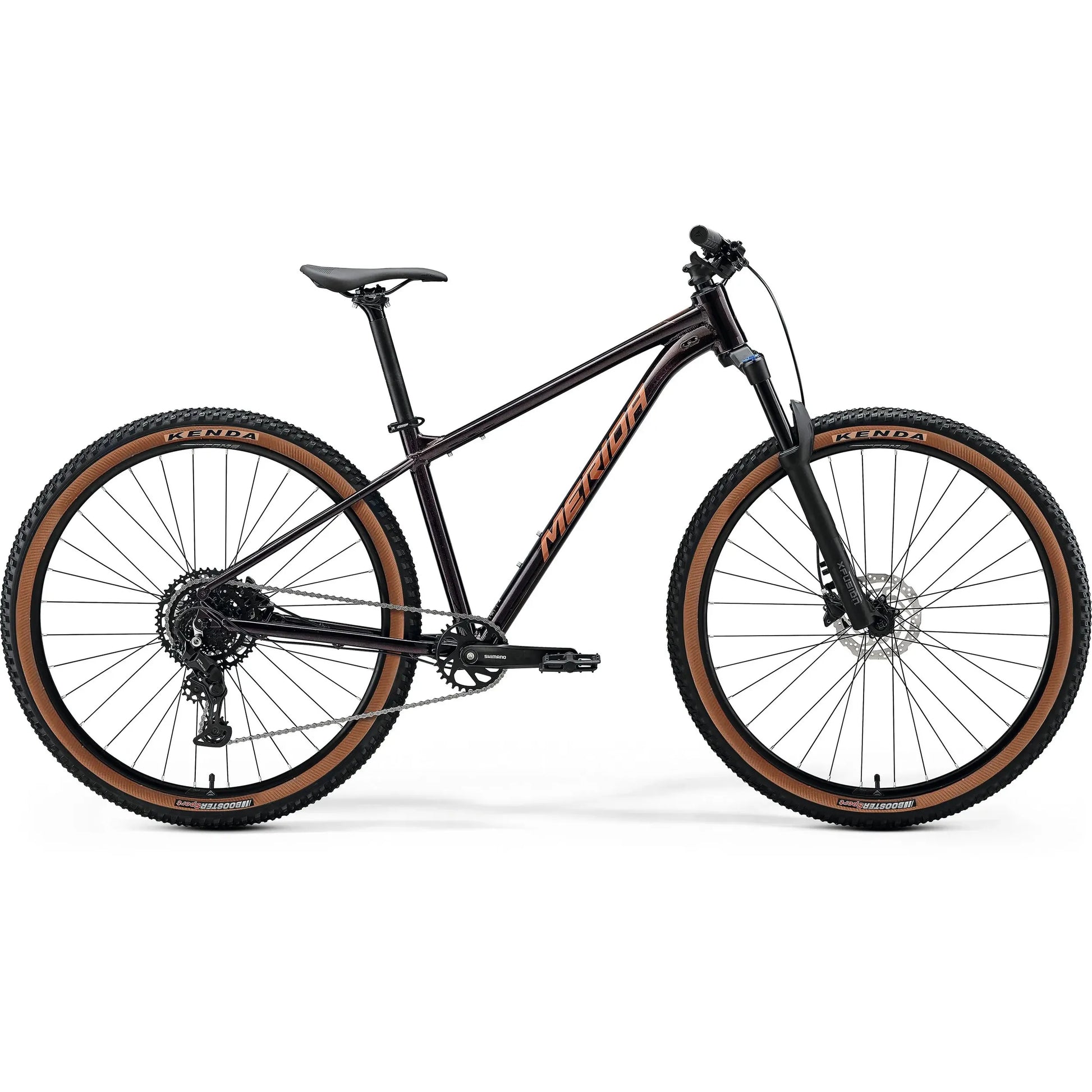

MERIDA BIG NINE 40 2026 - METALLIC BLACK
MERIDA BIG NINE 40 2026 - METALLIC BLACK
❌ Out of Stock at Papamoa
✅ In Stock at Warehouse
Features
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Updated geometry for confident off-road handling
- X-Fusion air-sprung suspension fork with 120 mm travel and lockout
- Shimano hydraulic disc brakes and CUES 1x9-speed drivetrain
- MERIDA COMP CC 29" wheelset and 2.4" tyres
- MERIDA finishing kit including size-tuned handlebars
Get started on your mountain bike journey. The BIG.NINE 40 uses our latest aluminium frame to give a tough but lightweight base for high-value, high-performance kit. With updated geometry and a 120 mm air-sprung fork, it's a confident off-road machine that packs in versatility for everyday use, while Shimano's CUES 1x9-speed drivetrain and the hydraulic disc brakes are simple but effective.
When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.
FRAME | BIG.NINE TFS V, MAT aluminum, 29 WHS, 135x9 AST, BSA BBR, |
---|---|
FORK | X-Fusion Migo 32 Air, 120 STR, lockout, max. 29x2,4" WHS, |
BRAKE FRONT | Shimano MT200, hydraulic brake |
BRAKE REAR | Shimano MT200, hydraulic brake |
ROTOR FRONT | Shimano RT10, 160 mm |
ROTOR REAR | Shimano RT10, 160 mm |
CHAIN | KMC xGlide, |
CRANKSET | Shimano Cues UT400-1, 32t, MAT Aluminium, |
CRANK LENGTH | S: 165mm, M/L/XL/XXL: 170mm, |
BOTTOM BRACKET | Shimano UN101 LL123, |
DERAILLEUR FRONT | 0, |
DERAILLEUR REAR | Shimano Cues U4000, GS |
CASSETTE | SunRace U9 CS-U980 9AZ, 11-46t, 9sp |
PEDAL | VP VPE 536, |
GRIP | MERIDA COMP TR, |
HANDLEBAR | MERIDA CC, MAT aluminium, 15 RHB, S: 720 WHB, M/L/: 740 WHB, XL/XXL: 750 WHB |
STEM | MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD |
STEM SIZE | S: 50mm, M/L:60 mm, XL/XXL: 70 mm, |
HEADSET | FSA NO.55R/57SC/57B, |
HUB FRONT | Shimano QC300, 100x9 WHF, 32 SPH, Centerlock |
HUB REAR | Shimano QC300-HM, 135x9 WHR, 32 SPH, Centerlock |
RIM | MERIDA COMP CC, 20 IWR, MAT aluminium, |
SADDLE | MERIDA COMP SL, V-mount |
SEAT CLAMP | MERIDA COMP QR, |
SEAT POST | MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB |
SHIFTER FRONT | 0, |
SHIFTER REAR | Shimano Cues U4000, |
TYRE FRONT | Kenda Booster, 29x2.4" |
