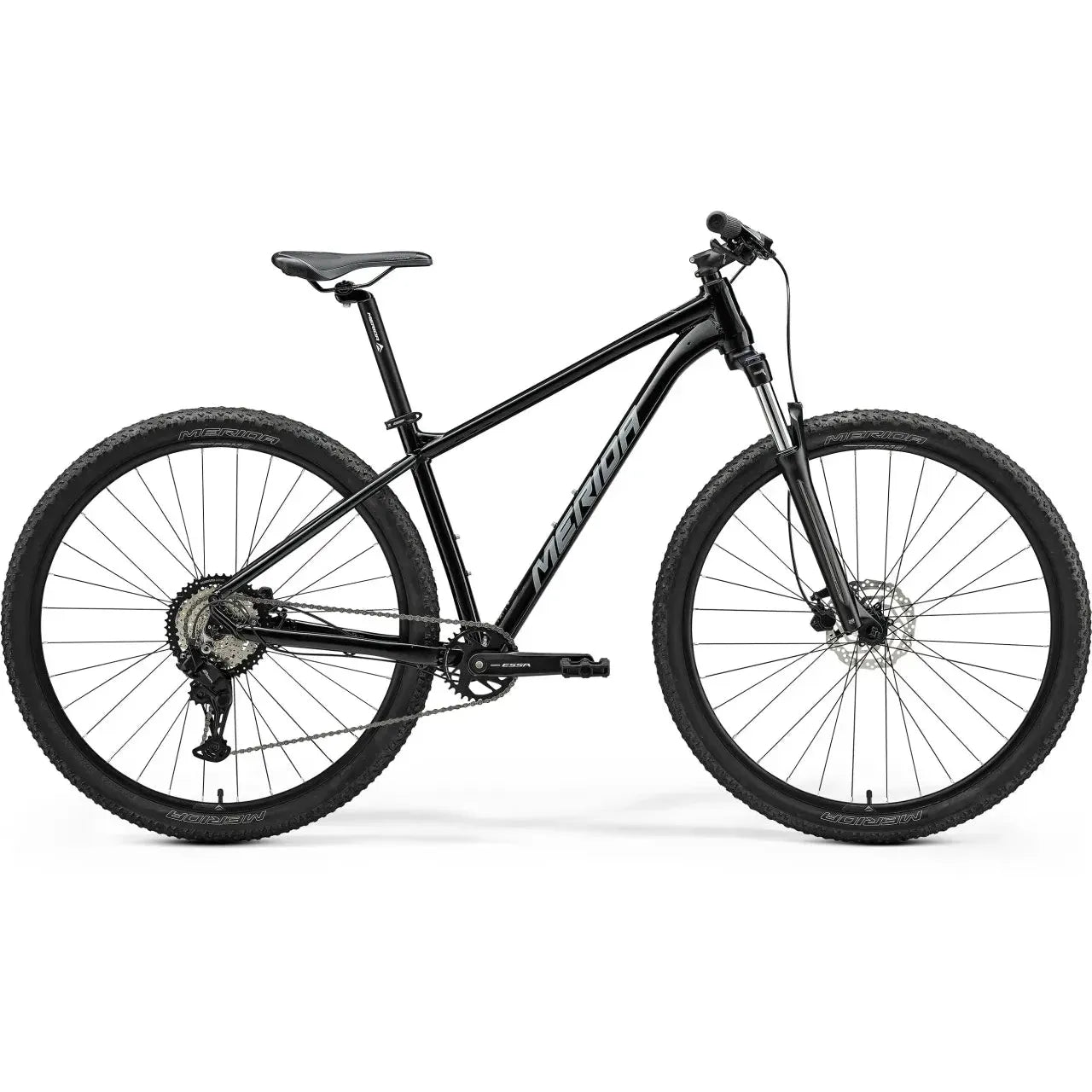

Merida BIG NINE 20 2025 - Black

Merida BIG NINE 20 2025 - Black

Regular price $1,099.00 NZD
Regular price $1,099.00 NZD Sale price $1,099.00 NZD
Sale Sold out
Taxes included.
Size

Single chainring equipped entry-level 29er aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.



Specifications

Please note - specifications subject to change without prior notice.

FRAME BIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR
SHOCK
FORK SR Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS
BRAKE-F Tektro HD-M275; hydraulic brake
BRAKE-R Tektro HD-M275; hydraulic brake
ROTOR-F Shimano RT10; 160 mm
ROTOR-R Shimano RT10; 160 mm
CHAIN KMC Z8.3
CHAINGUARD
CRANKSET Shimano ESSA FC-U2001 32 ATC; MAT Aluminium
CRANK LENGTH 170 mm-S, 175 mm-M up
BOTTOM BRACKET Shimano BB-UN101 73-123
DERAILLEUR-FRONT
DERAILLEUR-REAR Shimano ESSA RD-U2000-8; GS
CASSETTE Shimano CS-HG400-8; 11-45 ATC; 8 GER
GRIPS MERIDA EC
HANDLEBAR MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
STEM MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
STEM SIZE 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HEADSET MERIDA M2345
HUB-F Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
HUB-R Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
AXLE-F
AXLE-R
RIM MERIDA CC; 17 IWR; MAT aluminium
SADDLE MERIDA Sport comfort
SEAT CLAMP MERIDA COMP QR
SEATPOST MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
SHIFTER-FRONT
SHIFTER-REAR Shimano ESSA SL-315-8R
SPOKES Black steel
TIRE-F MERIDA K1080; 29x2.2"; wire
TIRE-R MERIDA K1080; 29x2.2"; wire
