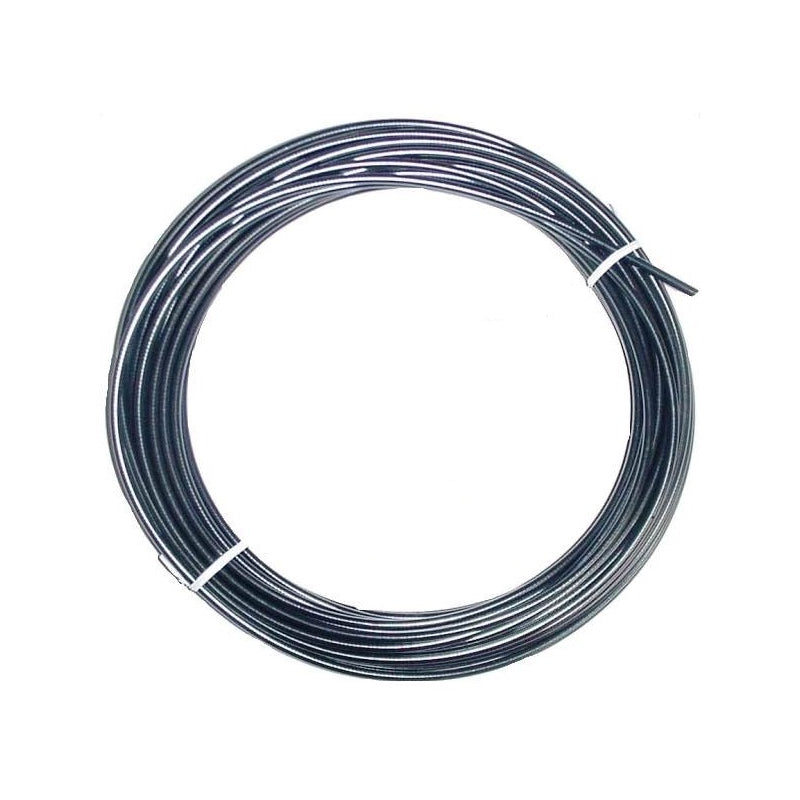

Bowden Outer Casing
The bowden cable is a flexible cable used to transmit mechanical force or energy by the movement of an inner cable relative to a hollow outer cable housing. The cable housing is generally of composite nylon construction, consisting of a spiral steel wire, often coated with plastic, and with a plastic outer sheath. A dry lubricant can also be applied to assist the cable.

Features

  • Sold per meter, or in 20 meter rolls

Sizes

  • WIR5606NO.0 - Inside Diameter 1.7mm / Outside Diameter 4.5mm
  • WIR5607NO.1 - Inside Diameter 2.0mm / Outside Diameter 5.0mm
  • WIR5612NO.2 - Inside Diameter 2.3mm / Outside Diameter 5.5mm
  • WIR5613NO.3 - Inside Diameter 2.5mm / Outside Diameter 6.0mm
  • WIR5614NO.4 - Inside Diameter 3.0mm / Outside Diameter 7.0mm
