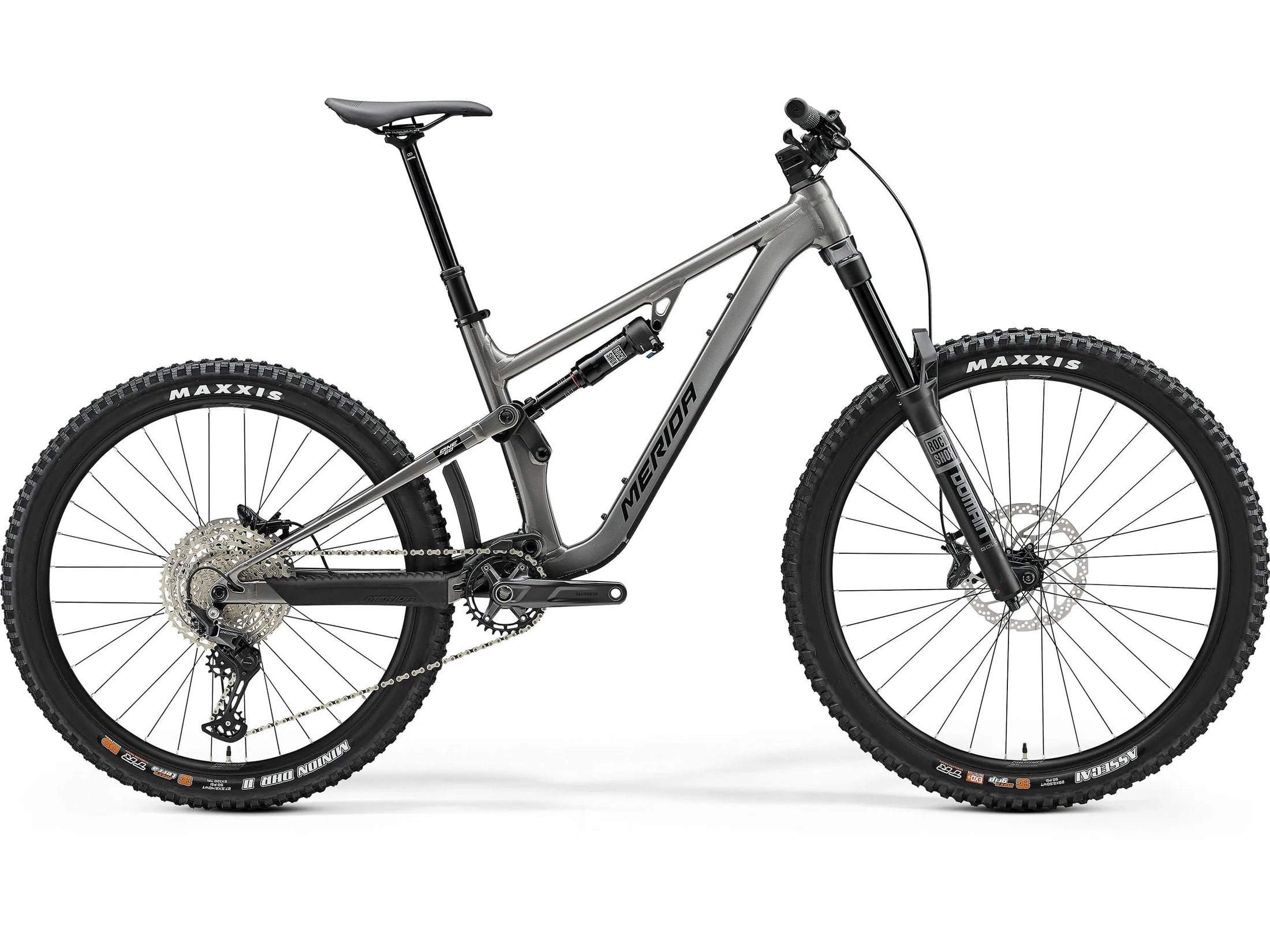

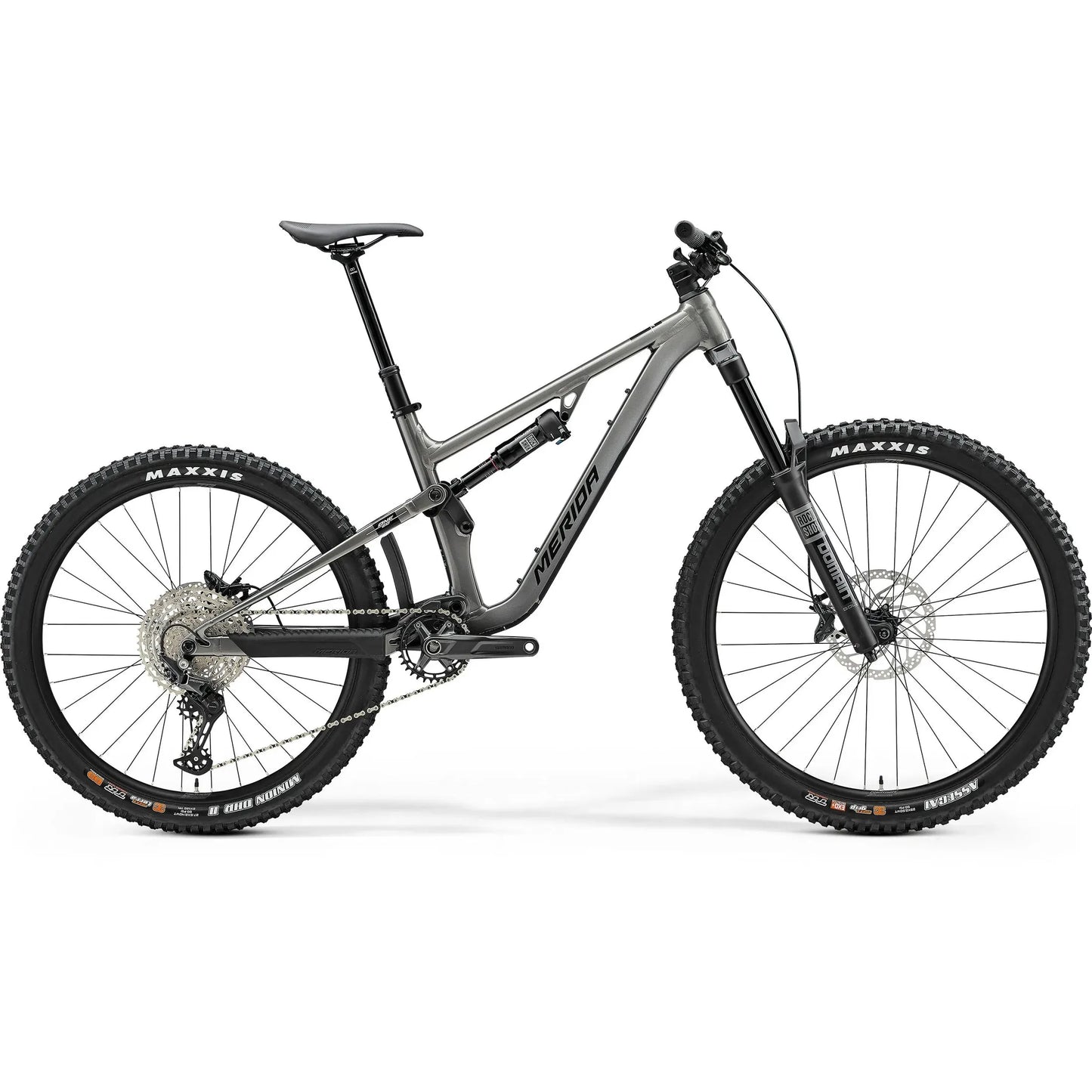

Merida ONE SIXTY 500 2025 - GUNMETAL GREY
Merida ONE SIXTY 500 2025 - GUNMETAL GREY
Couldn't load pickup availability
You shouldn’t have to spend a fortune to get a bike that can take on everything from enduro races to epic, big mountain descents or gnarly bike parks. The ONE-SIXTY 500 gets our radical test and award-winning geometry and suspension design in a tough all-aluminium frame package, paired to components that deliver rock-solid performance and ironclad value. A RockShox Domain fork and Deluxe shock can take the rough with the rougher, while the four-piston Shimano brakes and wide-range drivetrain are tough and consistent.
Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes our hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Our proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Our AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.
Features
- Full aluminium frame with FAST kinematic suspension and radical enduro geometry
- Mixed or full 29er wheels with AGILOMETER sizing
- RockShox Domain and Deluxe suspension, proven Shimano 12-speed drivetrain
- Maxxis Double Down rear and EXO+ front tyres
- Long-travel dropper post
- Powerful 4-piston hydraulic disc brakes
| FRAME | ONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
|---|---|
| SHOCK | Rock Shox Deluxe Select+; lockout |
| FORK | Rock Shox Domain Gold R; Air; 170 STR; Tapered; 44mm fork offset; 29.5x2.8" max. WHS |
| BRAKE-F | Shimano Deore M6120; 4 piston |
| BRAKE-R | Shimano Deore M6120; 4 piston |
| ROTOR-F | Shimano RT30; 203mm |
| ROTOR-R | Shimano RT30; 203mm |
| CHAIN | KMC X12 |
| CHAINGUARD | MERIDA EXPERT TR ISCG05 |
| CRANKSET | Shimano Deore MT512; 32 ATC |
| CRANK LENGTH | 170 mm for all sizes |
| BOTTOM BRACKET | Shimano BB-MT-501; 24mm |
| DERAILLEUR-REAR | Shimano Deore M6100; SGS |
| CASSETTE | Shimano Deore M6100; 10-51 ATC; 12 GER |
| GRIPS | MERIDA EXPERT EC |
| HANDLEBAR | MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB |
| STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| STEM SIZE | 40 mm |
| HEADSET | Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing |
| HUB-F | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB-R | Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE-R | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29" |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEATPOST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT |
| SHIFTER-FRONT | Shimano SL-MT500-IL |
| SHIFTER-REAR | Shimano Deore M6100 |
| SPOKES | Double Butted Black stainless |
| TIRE-F | Maxxis Assegai; 29x2.5"; fold; TR EXO+ 3C MaxxGrip |
| TIRE-R | Maxxis DHR II; 27.5x2.4" XS/S/M 29x2.4" L/XL; fold; TR DD 3C MaxxTerra |
