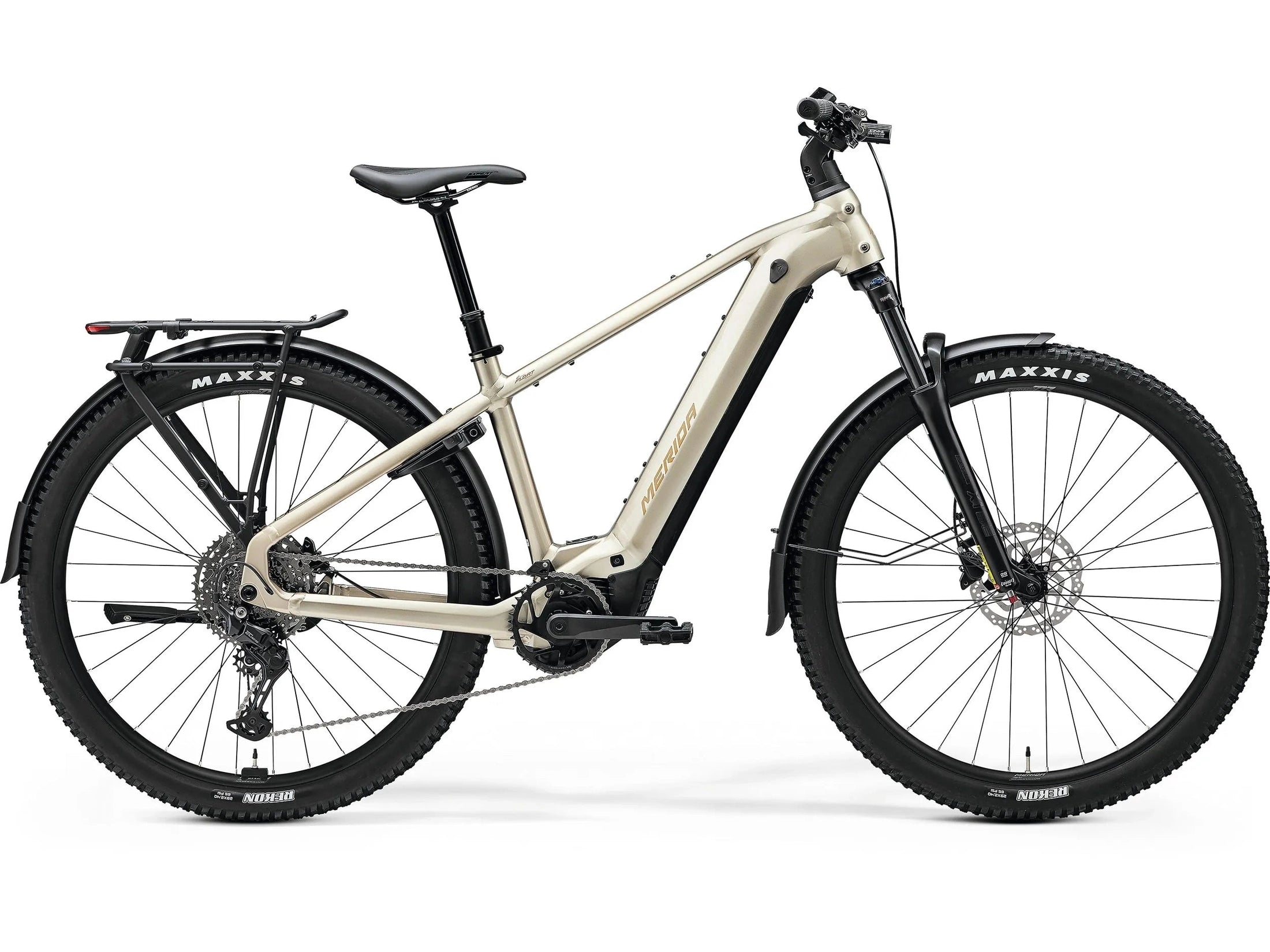

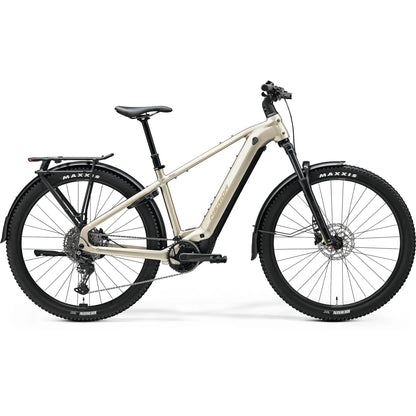

Merida eFLOAT CC 500 EQ - HIGH CREAM

Merida eFLOAT CC 500 EQ - HIGH CREAM

Regular price $6,999.00 NZD
Regular price $6,999.00 NZD Sale price $6,999.00 NZD
Sale Sold out
Taxes included.
Size

The eFLOAT CC 500 doesn't care where you're going - it'll get you there. With grippy 2.4" wide MTB-style tyres on smooth rolling 29" wheels plus a 120 mm Suntour suspension air fork, it'll tame broken road surfaces and off-road trails easily. Coming fully equipped with lights, lock, mudguards, rear rack and a kickstand, it's also an ideal city companion too, while the Bosch CX drive unit and large capacity 800 Wh battery offer smooth and reliable support on hills.

When life is busy, you need a bike that will help you get the most out of your time. Whether you’re getting to work, taking a cross-town shopping trip or escaping it all to recharge your batteries at the weekend, the MERIDA eFLOAT lineup has a bike for you. An e-bike is an incredibly versatile tool for work or play - but the eFLOAT lineup is more versatile than most thanks to practical and versatile frame designs paired with strong and supportive Bosch drive systems; each will give you more time to do the things that matter. Offering TK trekking, CC SUV-style and HD light cargo options, all bikes come with mudguards, a rear rack, a kickstand, a built-in lock, plus front and rear lights as standard, and each bike has a low step through frame option if you need more clearance. We also use our sleek WIRE PORT cable routing system as standard, so the bikes look as good as they ride. By combining our expertise in aluminium frame design with Bosch’s refined and powerful drive systems, numerous battery options and intuitive display units, we’ve created a trio of models that are subtly adapted to suit your needs.



Specifications

Please note - specifications subject to change without prior notice.

SPEED Assistance is capped at 32kph for these bikes
FRAME eFLOAT LITE II ; MAT aluminium; 29"x2.4" with fender max. WHS; 148x12 AST; intube
SHOCK
FORK SR Suntour X1-Boost; Air; 120 STR; 29x2.4" max WHS
BRAKE-F Shimano MT-200; 2 piston
BRAKE-R Shimano MT-200; 2 piston
ROTOR-FRONT Shimano RT10; 180mm
ROTOR-REAR Shimano RT10; 180mm
CHAIN Shimano LG500
CHAINGUARD
CRANKSET FSA Direct Mount Steel Chainring; 38 ATC
CRANK SIZE FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
DERAILLEUR-FRONT
DERAILLEUR-REAR Shimano Cues U6000; GS
FREEWHEEL Shimano Cues LG400; 11-48 ATC; 10 GER
PEDAL VP VPE-891
GRIP MERIDA EXPERT EC
HANDLEBAR MERIDA EXPERT; MAT aluminium; 680 WHB; 15 RHB
STEM MERIDA EXPERT TK III; MAT aluminium; 31.8 DSH;
STEM SIZE S/M/W-S/W-M :70mm, L/XL/W-L/W-XL :90mm
HEADSET Acros ICR MERIDA INTEGRATED neck w/ Blocklock
HUB-F Shimano TC500; 15x100 WHF; 32 SPH; Centerlock
HUB-R Shimano TC500; 12x148 WHR; 32 SPH; Centerlock
AXLE-F
AXLE-R MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
SADDLE MERIDA EXPERT TK II; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA COMP TR IV; 34.9 DSP; 0 SSB; S/M/L/XL: 150 SPT
SHIFTER-F Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post)
SHIFTER-R Shimano CUES U6000-10
SPOKE Black stainless
TIRE-F Maxxis Rekon; 29x2.4"; wire
TIRE-R Maxxis Rekon; 29x2.4"; wire
CARRIER MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
FENDER Sunnywheel SW-FA311-70A/ SW-FA311-70E1
KICKSTAND Atranvelo ED-100-PC
LIGHT-FRONT Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount
LIGHT-REAR Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
FRAME LOCK Abus 4650 XL
DRIVE UNIT Bosch Performance Line CX
DRIVE COVER MERIDA Custom Cover for Bosch Performance Line CX eFLOAT
BATTERY Bosch PowerTube 800 ; 800Wh
SWITCH
DISPLAY Bosch Purion 200
