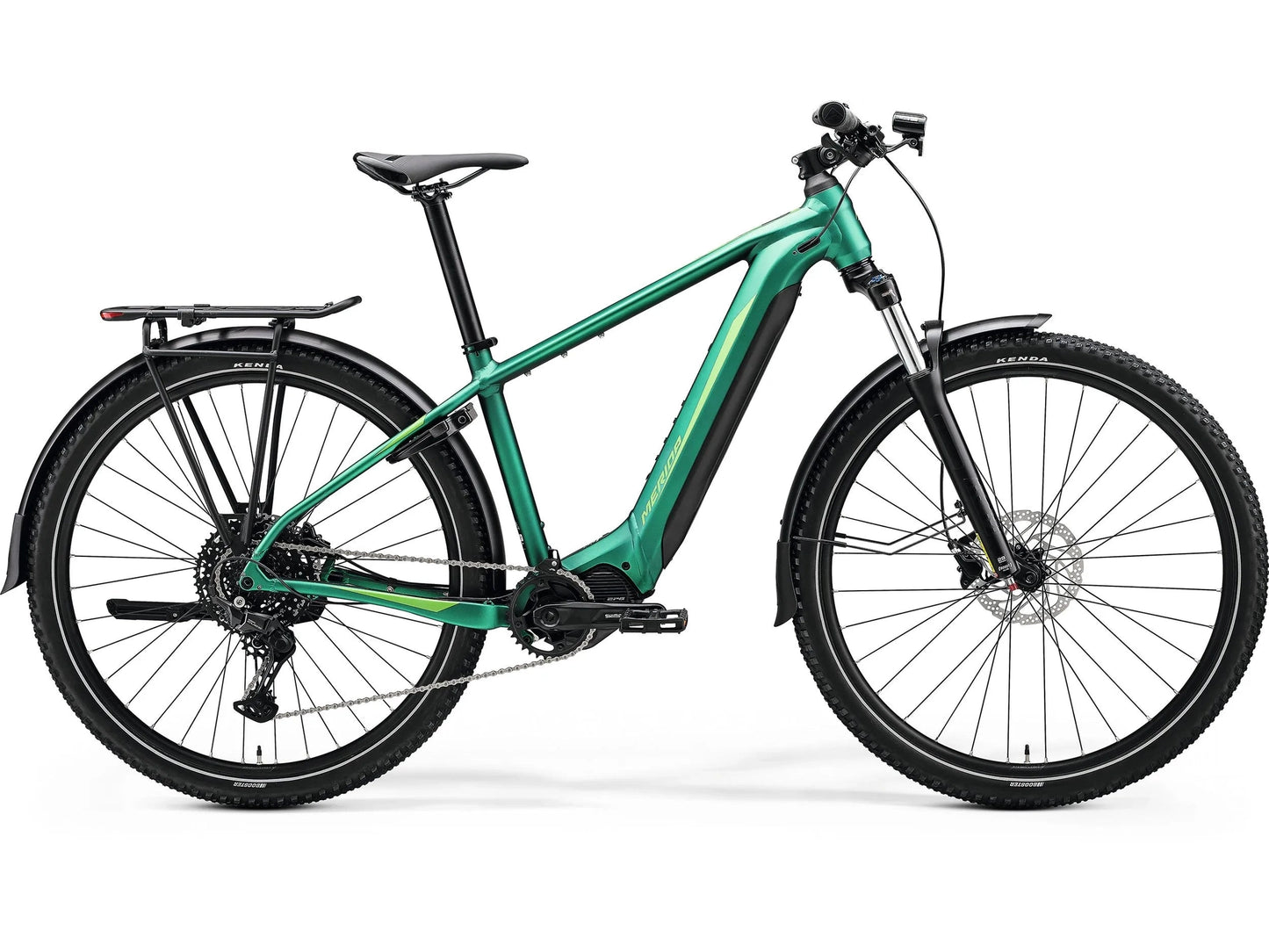

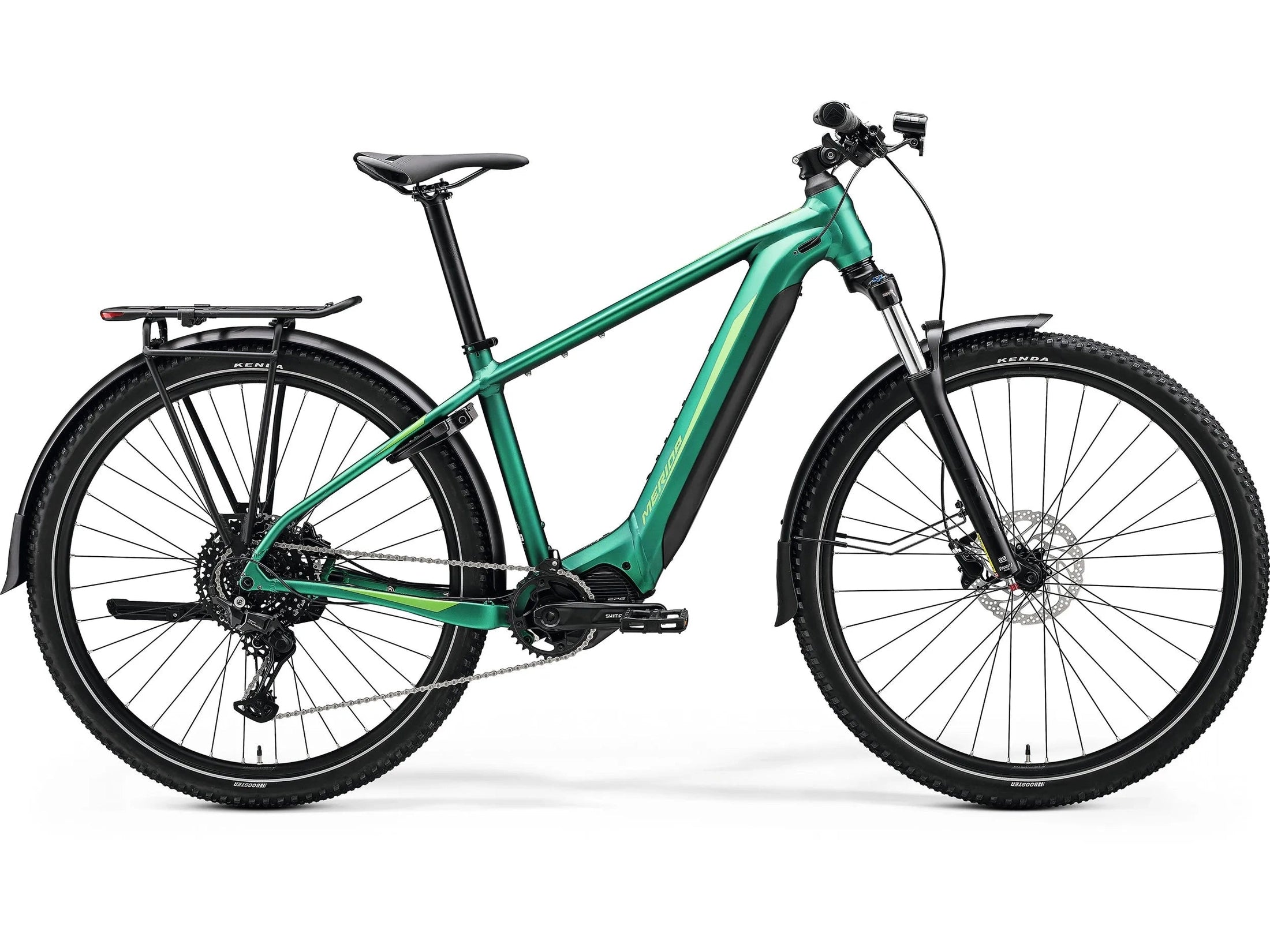

Merida eBIG NINE 400 EQ 2025 - MATT EVERGREEN
Merida eBIG NINE 400 EQ 2025 - MATT EVERGREEN
Couldn't load pickup availability
The power to do more of what matters. That's what the eBIG.NINE 400 EQ offers. More fun when you're riding off-road, with a powerful new Shimano EP6 drive unit to help you up the hills. More versatility, thanks to a fully equipped spec that includes lights, mudguards, lock, rack and kickstand. More time on the bike, with a 630 Wh battery that'll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More comfort on the commute, thanks to standard fit mudguards, lights, rack and kickstand. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that's also got a lifetime warranty.
Arguably the most versatile e-bike in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure activity. It's a bike that can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way. The high-quality aluminium frame integrates a choice of 630 or 750 Wh battery sleekly into the downtube, with a more economical frame featuring semi-integrated 504 Wh battery on some models. All feature powerful and smooth Shimano drive units that will power you up any hill. Ready to be equipped with mudguards and even a side stand (or available as the EQ fully equipped version), the eBIG.NINE will help you make the most of any situation.
Features
- Lightweight aluminium frame with 29er wheels
- Latest powerful Shimano EP6 drive unit with 85 Nm torque
- Integrated 630 Wh battery
- Confidence inspiring mountain bike handling
- Comfort and control enhancing suspension fork
- Comes fully equipped with lights, kickstand, rack and mudguards
FRAME | eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube |
---|---|
FORK | Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS |
BRAKE-F | Shimano MT-200; 2 piston |
BRAKE-R | Shimano MT-200; 2 piston |
ROTOR-FRONT | Shimano RT30; 180 mm |
ROTOR-REAR | Shimano RTEM300; 180 mm |
CHAIN | Shimano LG500 |
CRANKSET | Shimano CRE70-B; 34 ATC |
CRANK SIZE | Shimano FC-EM600; 165 mm for all sizes |
DERAILLEUR-REAR | Shimano CUES U6000; GS |
FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
PEDAL | VP VPE-537 |
GRIP | MERIDA EXPERT TK |
HANDLEBAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
STEM | MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable |
STEM SIZE | 90 mm all sizes |
HEADSET | MERIDA-8155 (for the steerer 1-1/8"~1.5") |
HUB-F | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
HUB-R | Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock |
AXLE-R | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
SADDLE | MERIDA EXPERT TK; V-mount |
SEAT CLAMP | MERIDA EXPERT 38.9mm |
SEAT POST | MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB |
SHIFTER-R | Shimano CUES U6000-11 |
SPOKE | Black stainless |
TIRE-F | KENDA Booster; 29x2.2"; wire |
TIRE-R | KENDA Booster; 29x2.2"; wire |
CARRIER | MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE |
FENDER | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 |
KICKSTAND | CL-KA98, 29" |
LIGHT-FRONT | LEZYNE E-BIKE HECTO STVZO E65 |
LIGHT-REAR | Spanninga Commuter GLOW XE |
FRAME LOCK | Abus 4650 L |
DRIVE UNIT | Shimano EP6; 85Nm |
DRIVE COVER | SM-DC-EP801 |
BATTERY | Shimano EN806; 630Wh |
DISPLAY | Shimano SC-EN500A |
