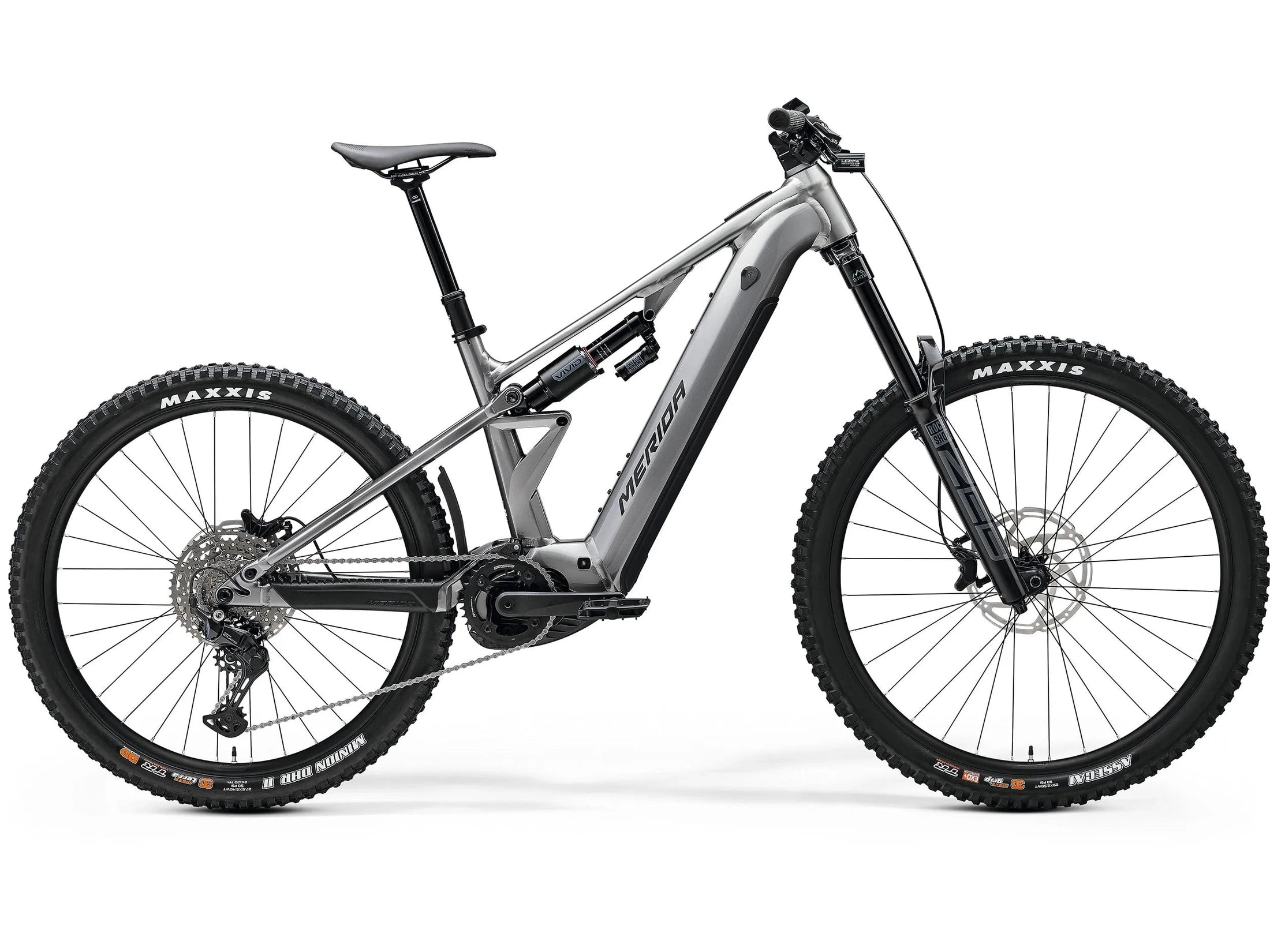

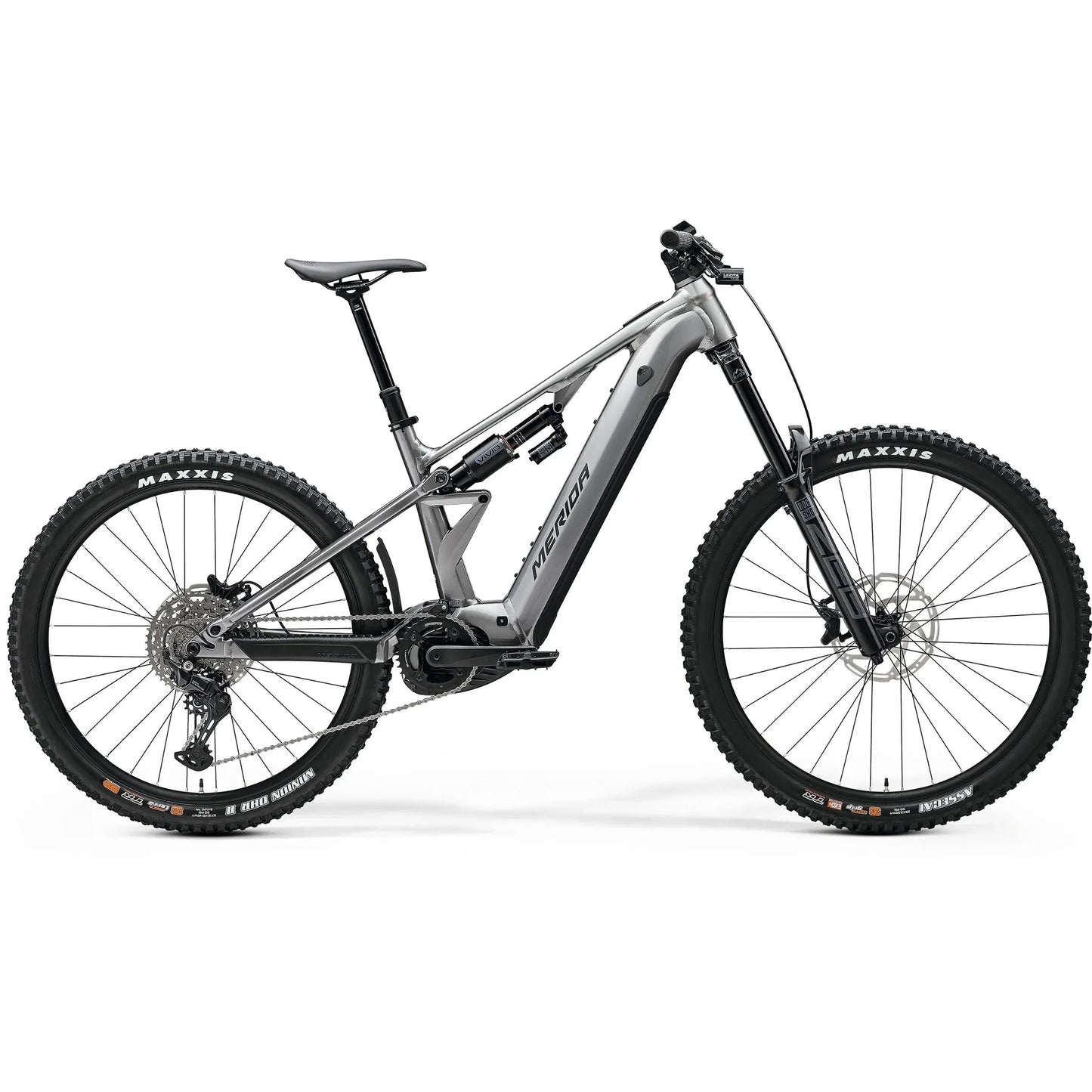

Merida eONE EIGHTY 500 2025 - GUNMETAL GREY

Merida eONE EIGHTY 500 2025 - GUNMETAL GREY

Regular price $9,299.00 NZD
Regular price $9,299.00 NZD Sale price $9,299.00 NZD
Sale Sold out
Taxes included.
Size

The eONE-EIGHTY 500 is built for taking on the gnarliest trails wherever you find them. With 180 mm of travel at either end from our robust aluminium frame, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for. The Bosch CX drive unit and a huge 800 Wh battery mean you can repeat that for as long as you like too, while our mixed wheel size setup means this is a bruiser that can dance.

Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.It’s our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus we’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.



Specifications

Please note - specifications subject to change without prior notice.

FRAME eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5" x 2.6" max. Wheelsize, 148x12mm axle standard
FORK Rock Shox Zeb Base eMTB, Air, 180mm suspension travel, 29x2.6" max wheelsize
SHOCK Rockshox Zeb Base eMTB
BRAKES Tektro Gemini M535, 4 piston
ROTORS Tektro TR203-45, 203mm
HEADSET Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HANDLEBAR MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB
HANDLEBAR STEM MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
GRIP MERIDA EXPERT EC
DERAILLEUR (R) Shimano CUES U6000
SHIFTERS Shimano SL -MT500-L / Shimano Cues U6000-10
SEAT POST MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, XSHORT 30-200mm travel seatpost, SHORT, MID, LONG and XLONG 30-230mm travel seatpost
SEAT CLAMP MERIDA EXPERT
SADDLE MERIDA COMP SL, V-mount
PEDAL VP VPE-533
CHAIN Shimano LG500
CHAINWHEEL FSA 1x Alloy Spider + Mega Tooth steel chain ring, 36 teeth
CRANK FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
FREEWHEEL Shimano Cues LG400, 11-48 teeth, 10 speed
HUBS Shimano TC500, 32 spoke holes, Centerlock
RIM MERIDA EXPERT TR II, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5”
TYRE FRONT Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
TYRE REAR Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra
AXLES MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
SPOKES Black stainless
LIGHT FRONT Lezyne Hecto StVZO E350+ Reverse
LIGHT REAR USB REAR Light CG-214RG
DRIVE UNIT Bosch Performance Line CX
BATTERY Bosch PowerTube 800 Wh
BATTERY LOCK Abus Key
DISPLAY Bosch Purion 400
APPROX. WEIGHT 27 kg (MD)
