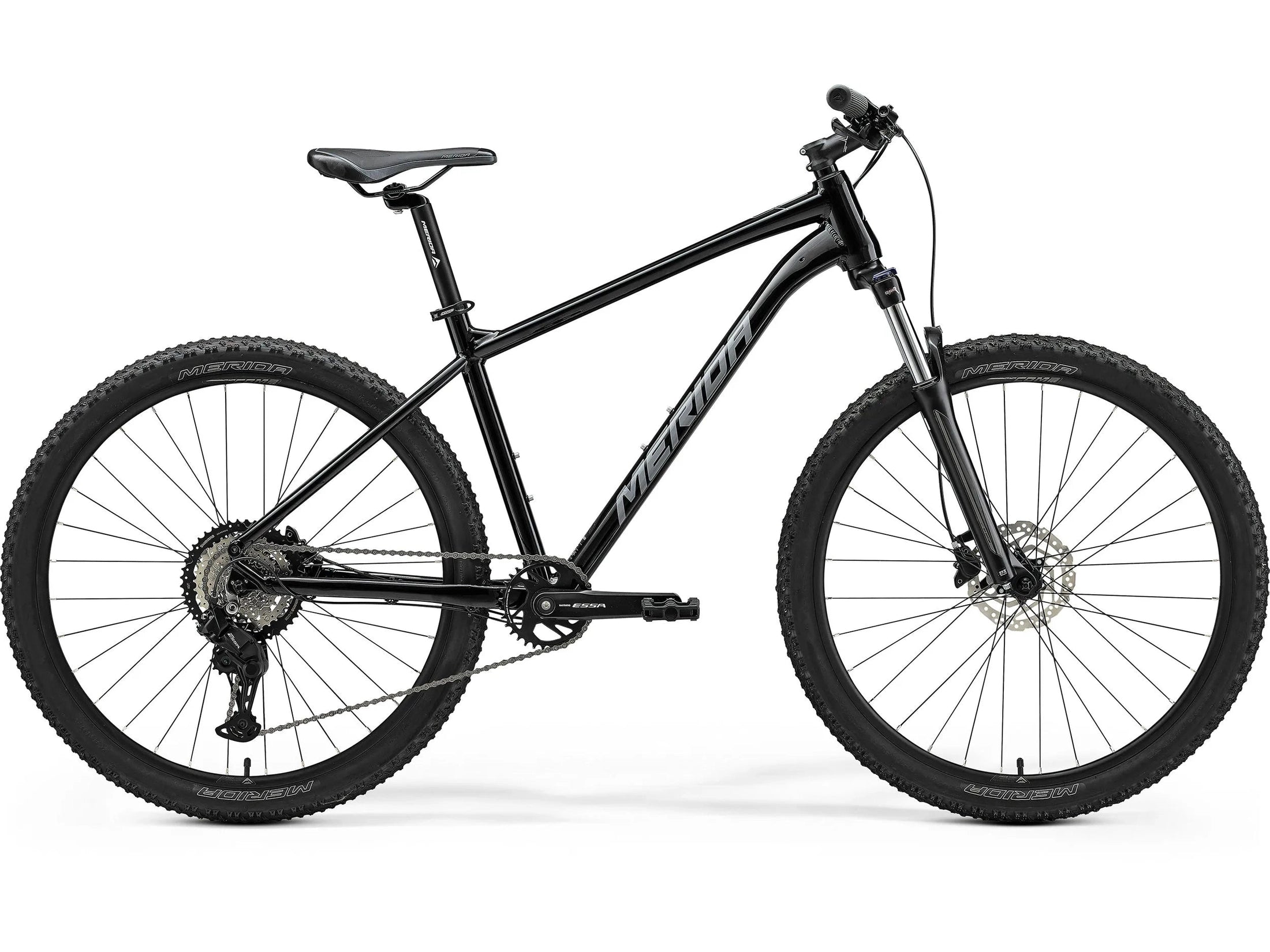

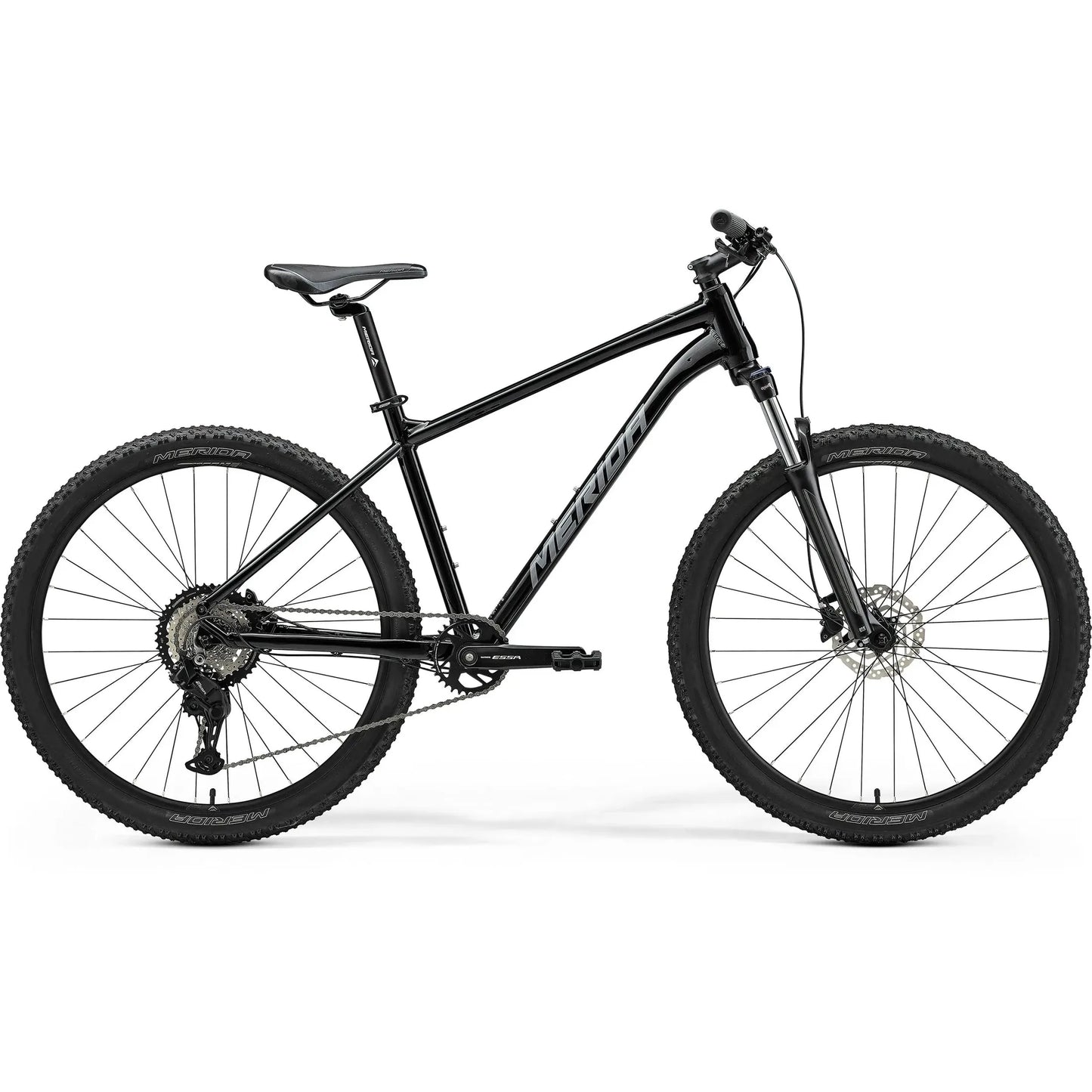

Merida BIG SEVEN 20 2025 - BLACK
Merida BIG SEVEN 20 2025 - BLACK
Couldn't load pickup availability
Double chainring equipped entry-level 27.5" aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.
The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. They represent the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
Features
- Double butted aluminium frame with 27.5" wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel suspension fork with lockout
- Shimano 8-speed drivetrain with double chainring setup
- Hydraulic disc brakes
- Internal cable routing
FRAME | BIG.SEVEN TFS IV; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR |
---|---|
FORK | SR Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS |
BRAKE-F | Shimano BR-MT200; hydraulic brake |
BRAKE-R | Shimano BR-MT200; hydraulic brake |
ROTOR-F | Shimano RT10; 160 mm |
ROTOR-R | Shimano RT10; 160 mm |
CHAIN | KMC Z8.3 |
CRANKSET | Shimano ESSA FC-U2001 32 ATC; MAT Aluminium |
CRANK LENGTH | 170 mm-XS/S, 175 mm-M/L |
BOTTOM BRACKET | Shimano BB-UN101 73-123 |
DERAILLEUR-REAR | Shimano ESSA RD-U2000-8; GS |
CASSETTE | Shimano CS-HG400-8; 11-45 ATC; 8 GER |
GRIPS | MERIDA EC |
HANDLEBAR | MERIDA CC; MAT aluminium; 690 WHB; 15 RHB |
STEM | MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD |
STEM SIZE | 70 mm-XS/S, 90 mm-M/L, |
HEADSET | MERIDA M2345 |
HUB-F | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
HUB-R | Shimano TX505; 135x9 WHR; 32 SPH; Centerlock |
RIM | MERIDA CC; 17 IWR; MAT aluminium |
SADDLE | MERIDA Sport comfort |
SEAT CLAMP | MERIDA COMP QR |
SEATPOST | MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium |
SHIFTER-REAR | Shimano ESSA SL-315-8R |
SPOKES | Black steel |
TIRE-F | MERIDA K1080; 27.5x2.2"; wire |
TIRE-R | MERIDA K1080; 27.5x2.2"; wire |
